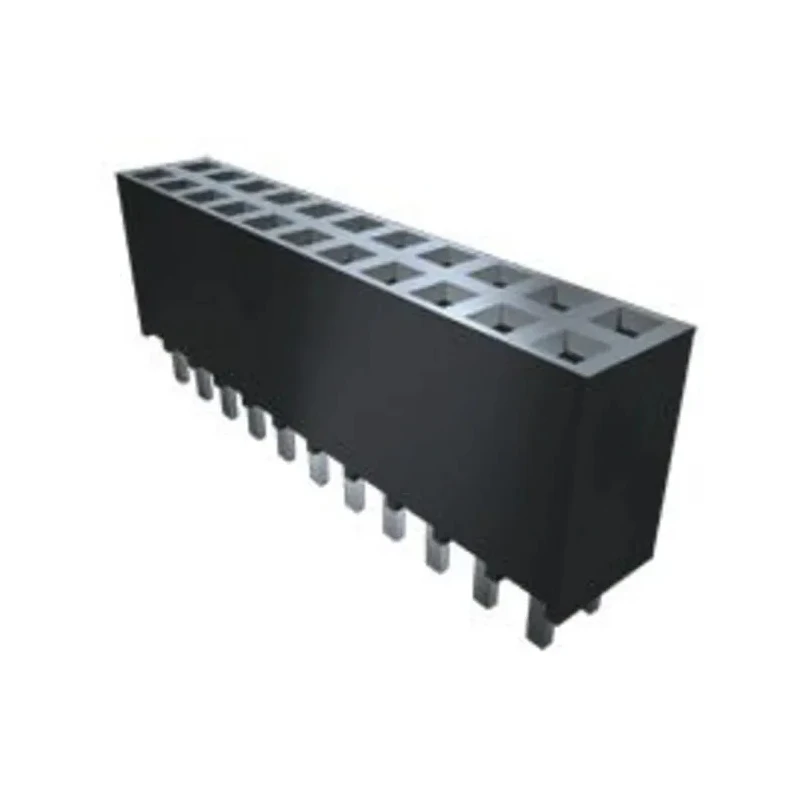

Samtec Straight Through Hole PCB Socket 40 Contacts 2 Rows 2.54mm Pitch SSW-120-01-T-D

Free Delivery in India | Lowest Global Shipping Charges

Samtec Straight Through Hole PCB Socket 40 Contacts 2 Rows 2.54mm Pitch SSW-120-01-T-D

Name: Samtec Straight Through Hole PCB Socket 40 Contacts 2 Rows 2.54mm Pitch SSW-120-01-T-D
Brand: Samtec
SKU: 82093
Price: 4.54 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	655V
Brand	Samtec
Orientation	Straight
Current	4.7A
Model	SSW-120-01-T-D
Mount Type	Through Hole
Special Features	Standard and low insertion force contacts with standard solder tails
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	SSW
Termination	Through-hole, surface mount
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	40
Contact Gender	Female
Connector System	Board-to-Board
Contact System	Tiger Buy™
Row Pitch	2.5mm

Key Features

Features a solder tail socket strip for high retention and cost-effective Tiger Buy™ contacts.
Suitable for single, double and triple row configurations up to 150 pins.
Through-hole mount with straight orientation for secure board-to-board connections.
Female contact system with tin-plated bronze contacts ensures reliable performance.
Operates at voltage up to 655V and current up to 4.7A.
Liquid crystal polymer housing material supports durability in demanding environments.
Supports minimum operating temperature of -55°C and maximum of 105°C.
Pitch of 2.54 mm and row pitch of 2.5 mm for standard PCB layouts.

Product Description

The Samtec SSW-120-01-T-D is a straight through hole PCB socket designed for reliable interconnection in electronic circuits. This socket features 40 contacts arranged in 2 rows, with a standard 2.54 mm pitch, suitable for single, double, and triple row setup.

Its solder tail socket strip design includes Tiger Buy™ contacts, offering high retention and cost efficiency. The contacts are made of bronze with tin plating, providing excellent electrical conductivity and corrosion resistance. The female contact system ensures a secure and stable connection with compatible board-to-board interfaces.

The housing is constructed from liquid crystal polymer, known for its mechanical strength and durability in demanding environments. Mounting type is through-hole, using straight orientation to streamline installation and improve electrical performance. This socket operates at voltage up to 655V and supports a maximum current of 4.7A, making it suitable for industrial and commercial PCB applications such as control systems, instrumentation, and automation panels.

Its design accommodates a wide range of operating temperatures, from -55°C to 105°C, ensuring dependable performance in harsh conditions. The pitch and row pitch allow easy integration into standard PCB layouts. Special features include both standard and low insertion force contacts, and solder tails compatible with surface mount and through-hole technologies.

Ideal for engineers and designers seeking reliable, high-density board-to-board connectivity, the Samtec SSW-120-01-T-D PCB Socket is widely used in industrial electronics, research labs, medical instrumentation, and automation. The multi-purpose socket strip supports secure connections and facilitates rapid prototyping, assembly, and maintenance.
