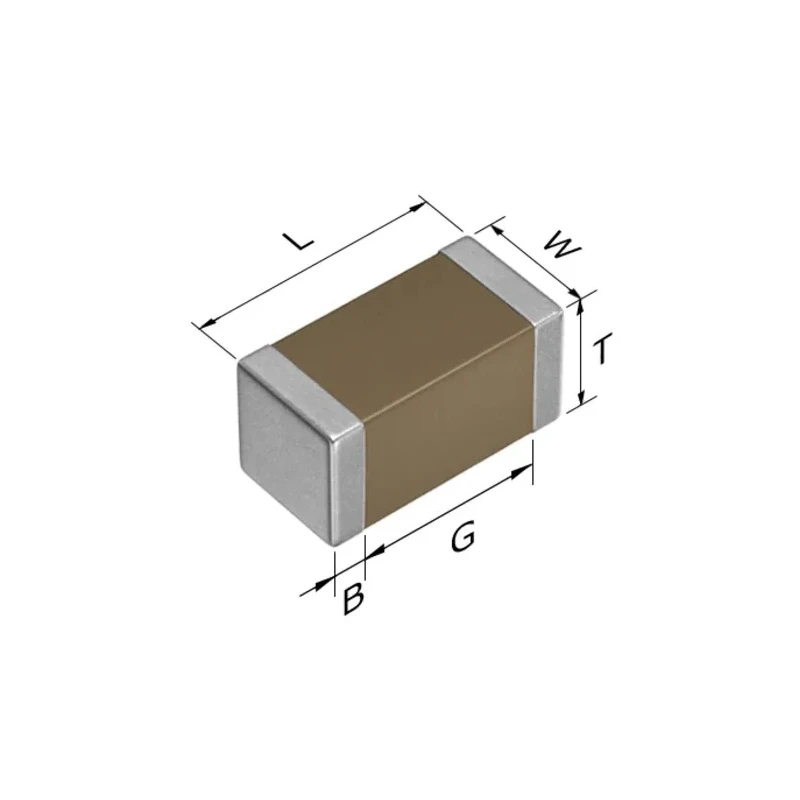

TDK Multilayer Ceramic Capacitor 470nF 50V dc ±10% Surface Mount CGA3E3X7R1H474K080AB

Free Delivery in India | Lowest Global Shipping Charges

TDK Multilayer Ceramic Capacitor 470nF 50V dc ±10% Surface Mount CGA3E3X7R1H474K080AB



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E3X7R1H474K080AB
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	470nF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	X7R
Automotive Standard	AEC-Q200
Suppression Class	Class II

Key Features

470nF capacitance ensures signal filtering and smoothing in electronic circuits.
Rated for 50V direct current operation, suitable for a wide range of applications.
±10% tolerance provides consistent performance in precision circuits.
Surface mount 0603 package allows for space saving PCB layouts.
X7R dielectric offers stable capacitance over temperature range.
AEC-Q200 automotive standard compliant for use in demanding environments.
Monolithic structure enhances mechanical strength and reliability.
Low ESR and ESL for improved frequency response.

Product Description

The TDK CGA3E3X7R1H474K080AB is a high-performance multilayer ceramic capacitor designed for demanding electronic applications requiring reliability and stability. With a capacitance of 470nF and voltage rating of 50V dc, it is suitable for filtering, decoupling, and signal processing in a range of circuits including automotive electronics, industrial equipment, and communication devices.

This component features a ±10% tolerance, ensuring predictable and consistent performance even in precision or safety-critical circuits. The X7R dielectric material provides excellent capacitance stability across its operating temperature range, from -55°C to 125°C. The monolithic structure of the CGA series offers superior mechanical strength and enhanced resistance to external stresses, promoting long-lasting durability in environments subject to vibration, temperature variation, or mechanical impact.

ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) are minimized by the capacitor's layered construction, resulting in improved frequency characteristics that support design optimization for high-speed circuits. The chip's surface mount 0603 package enables dense PCB layouts and reduces board footprint, making it suitable for modern miniaturized electronic assemblies.

The CGA3E3X7R1H474K080AB complies with the automotive AEC-Q200 standard, highlighting its suitability for sensors, engine control units, and battery line smoothing in vehicles. Its robust performance extends to industrial and laboratory equipment, telecommunications, and consumer electronics.

Tape and reel packaging streamlines automated placement and soldering, facilitating efficient mass production and assembly. Typical applications span automotive control systems, LC resonance circuits, and any scenario requiring high reliability and stable capacitance.

Explore the full range of TDK Multilayer Ceramic Capacitors in the MLCCs category for tailored solutions to your electronic design challenges.
