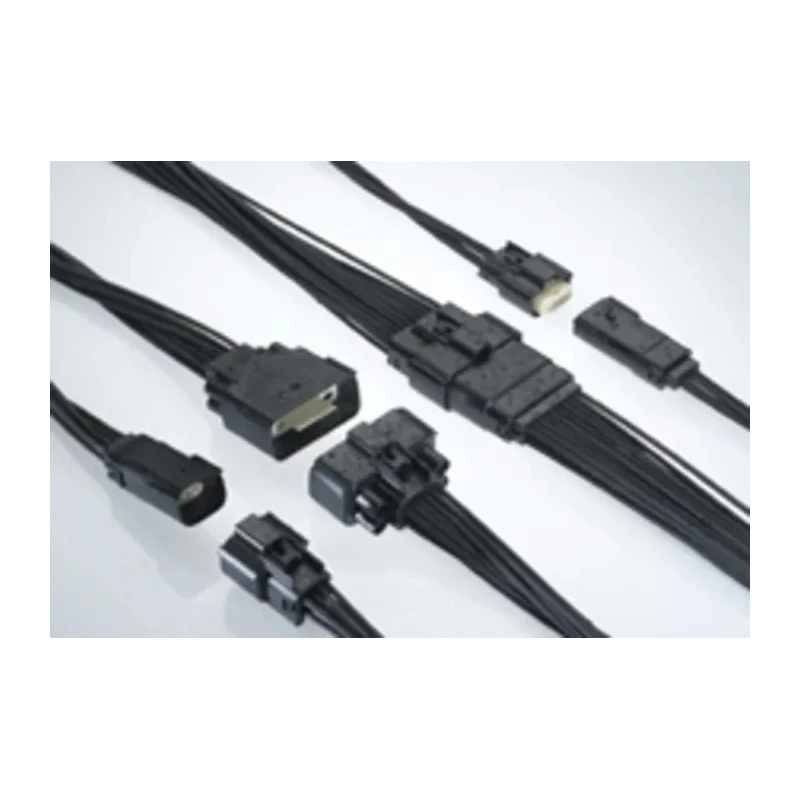

Molex Automotive Connector Female Black Cable 20 Way Crimp Termination 33472-2002

Name: Molex Automotive Connector Female Black Cable 20 Way Crimp Termination 33472-2002
Brand: Molex
SKU: 81979
Price: 4.45 USD
Availability: InStock



Category Automotive Connector Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Colour	Black
Height	24.9mm
Depth	37.65mm
Width	46.75mm
Gender	Female
Mount Type	Cable
Housing Material	Modified Polystyrene Alloy
Contact Material	Copper Alloy
Series	33472
Termination Type	Crimp
Maximum Operating Temperature	125°C
Sub Type	Crimp Housing
Minimum Operating Temperature	-40°C
Number of Rows	2
Standards/Approvals	EU RoHS, REACH SVHC
Contact Plating	Silver, Gold, Tin
Number of Contacts	20

Key Features

Designed for secure automotive cable connections with dual row configuration.
20 contact points support versatile wiring needs in vehicle and machine applications.
Crimp housing provides reliable termination and robust mechanical strength.
Female connector in black, with modified polystyrene alloy for durable performance.
Operating temperature from -40°C to 125°C accommodates demanding environments.
Mount type is cable; suitable for cable harness assemblies.
Compact body with width 46.75mm, height 24.9mm, and depth 37.65mm.
Meets EU RoHS and REACH SVHC standards for environmental compliance.

Product Description

Molex 33472-2002 is a female automotive connector engineered for cable mounting and used extensively in vehicle electrical systems and wire harness assemblies. This model features a dual row layout with 20 compatible circuits, providing versatile connectivity for both power and signal applications in automobiles and industrial machines.

Its crimp housing design ensures robust mechanical attachment and optimal electrical contact reliability. The connector is finished in black for identification and aesthetics, and employs a modified polystyrene alloy housing to deliver high durability and insulation properties. Contact terminals are made from copper alloy with silver, gold, and tin plating to resist corrosion and enhance performance.

Operating temperature spans from -40°C up to 125°C, supporting use in demanding automotive, transportation, aviation, commercial vehicle, and industrial electrical environments. The female gender design is widely compatible with standard cable harness setups and features 2 rows of contacts.

The compact form factor includes a width of 46.75mm, height 24.9mm, and depth 37.65mm, enabling easy integration in space-constrained panels and enclosures. The connector is compliant with EU RoHS and REACH SVHC standards, ensuring reduced environmental impact and suitability for global manufacturing requirements.

Typical applications include automotive cable harnesses, commercial vehicle wiring, construction equipment control systems, and electrical assemblies requiring reliable and secure multi-point connectivity.

Secure crimp housing design for optimal cable retention. Dual row with 20 contacts for high-density connections. Modified polystyrene alloy body supports mechanical durability. Wide operating temperature range for diverse automotive and industrial use cases.

Environmental compliance with EU RoHS, REACH SVHC. Copper alloy contacts with plated surfaces for improved performance. Compatible with cable-mount assemblies. Browse the EnvMart Automotive Connector category for more Molex and other leading-brand solutions for secure and compliant electrical connectivity in professional applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating temperature of this connector is 125°C, making it suitable for demanding automotive and industrial environments.

This model features 20 contacts, arranged in a dual row configuration, allowing for versatile wiring needs.

The housing is made from modified polystyrene alloy, which provides durability and insulation properties.

The connector has a width of 46.75mm, a height of 24.9mm, and a depth of 37.65mm, making it compact for integration in space-constrained areas.

It uses crimp termination, ensuring reliable mechanical attachment and optimal electrical contact.

Yes, it meets EU RoHS and REACH SVHC standards, ensuring reduced environmental impact and compliance with global manufacturing requirements.

This model is a female connector, designed for compatibility with standard cable harness setups.

The minimum operating temperature is -40°C, allowing it to function effectively in harsh conditions.

The contact terminals are made from copper alloy and are plated with silver, gold, and tin to resist corrosion and enhance performance.

It is designed for cable mounting, making it suitable for cable harness assemblies.

Typical applications include automotive cable harnesses, commercial vehicle wiring, and electrical assemblies requiring reliable multi-point connectivity.

The connector belongs to the 33472 series, which features a crimp housing design for secure connections.
