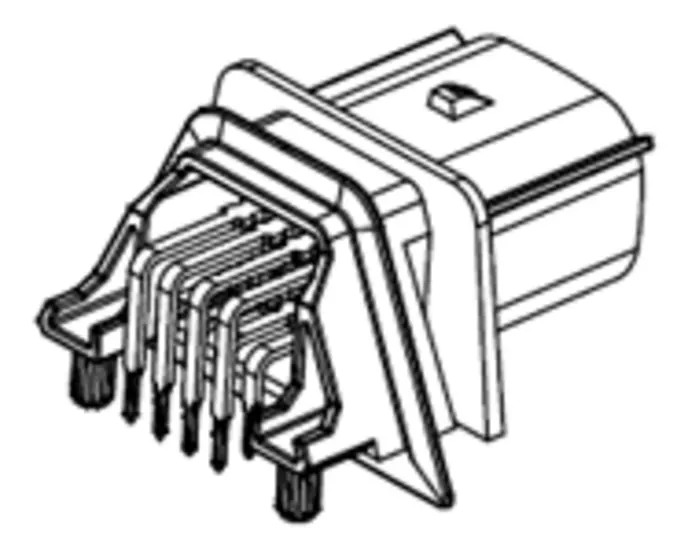

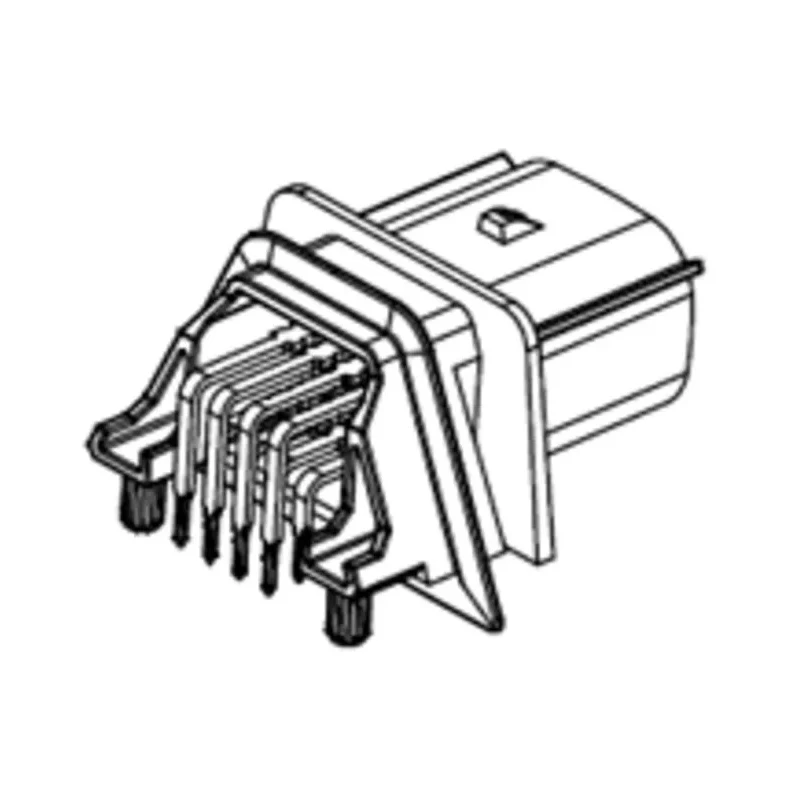

Molex Automotive Connector 20 Way Male Right Angle Through Hole Solder PCB Header Black 34830-2001
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Colour | Black |
| Height | 25.29mm |
| Depth | 42.56mm |
| Width | 64.83mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | 34830 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | PCB Header |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | EU RoHS, REACH SVHC |
| Contact Plating | Tin |
| Number of Contacts | 20 |
Key Features
- Accommodates up to 20 circuits for versatile connectivity.
- PCB header with dual-row layout optimizes circuit density.
- Solder termination ensures reliable electrical connections.
- Male connector design for wire-to-board applications.
- Right-angle orientation maximizes space efficiency.
- Constructed from polybutylene terephthalate housing and copper alloy contacts with tin plating.
- Designed to withstand extreme temperatures, operating from -40°C to +125°C.
- Recommended for 1.60mm PCB thickness and supports up to 10 mating cycles.
Product Description
Molex 34830-2001 Automotive Connector is engineered for automotive and electronic integration projects requiring reliable wire-to-board connectivity. This male, right angle, through hole PCB header offers 20 positions for solder termination, making it suitable for complex circuit designs.
The connector features a dual-row layout for enhanced circuit density and uses robust polybutylene terephthalate for the housing, ensuring durability and stability in demanding environments. Contacts are made from copper alloy and finished with tin plating, which provides strong conductivity and corrosion resistance for prolonged performance.
Its right-angle design streamlines installation by optimizing PCB space usage, making it ideal for applications with limited board real estate. The connector reliably supports wire-to-board integration, automation configurations, and powering various automotive electrical components.
Molex 34830-2001 is rated to operate in challenging conditions, with a wide temperature range from -40°C to 125°C, ensuring performance in automotive engine compartments, dashboards, and electrical panels. The connector supports recommended PCB thickness of 1.60mm and can endure up to 10 mating cycles, suitable for maintenance and replacements.
Solder termination simplifies assembly and provides strong, consistent connections critical to automotive and industrial reliability. The connector meets EU RoHS and REACH SVHC standards, aligning with environmental and material compliance requirements.
In summary, this Molex automotive connector is best suited for vehicle and industrial automation applications, PCB integration, and any project requiring dual-row, high-density, rugged connectors. Browse more Automotive Connectors and Molex solutions in the EnvMart Electronics Components category for diverse project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector can accommodate up to 20 circuits, providing versatile connectivity for complex circuit designs.
The recommended PCB thickness for this model is 1.60mm, ensuring optimal fit and performance during installation.
It operates within a temperature range of -40°C to 125°C, making it suitable for various automotive and electronic applications.
This connector utilizes solder termination, which simplifies assembly and ensures strong electrical connections.
The housing is made from polybutylene terephthalate, while the contacts are constructed from copper alloy with tin plating for enhanced conductivity.
This model can endure up to 10 mating cycles, making it suitable for maintenance and replacement applications.
The dimensions of this connector are 25.29mm in height, 42.56mm in depth, and 64.83mm in width.
It features a right-angle orientation, which maximizes space efficiency on the PCB.
This connector meets EU RoHS and REACH SVHC standards, ensuring compliance with environmental and material regulations.
It is designed for wire-to-board applications, particularly in automotive and industrial automation projects.
This connector has a dual-row layout, which optimizes circuit density for better connectivity.
The connector is black in color, which is standard for many electronic components.
