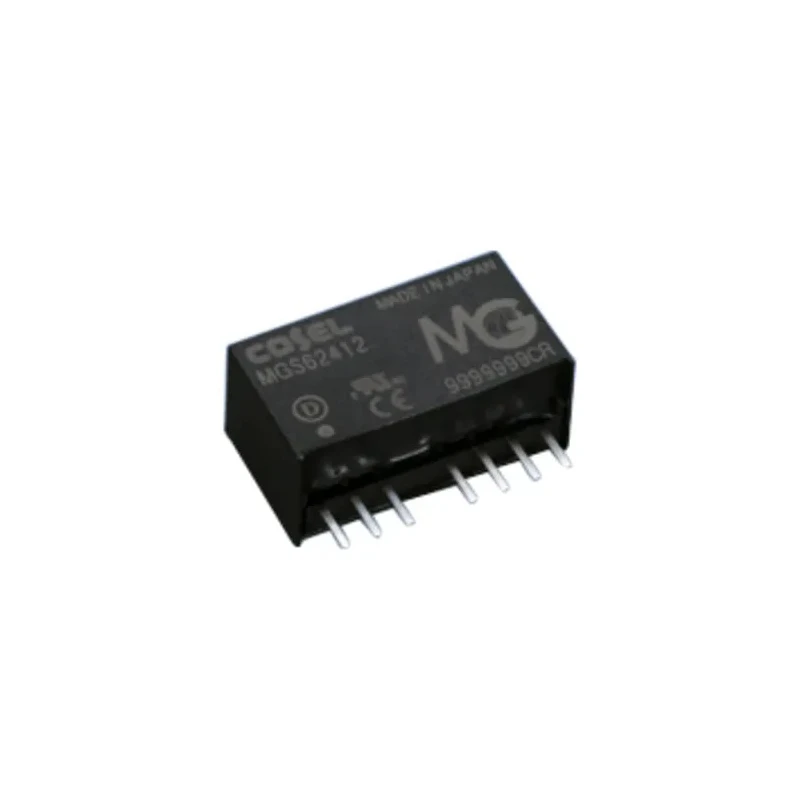

Cosel DC/DC Converter PCB Mount 12V/-12V 250mA, 24V/9V Input 6W SIP-8 MGF Series MGFW62412
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | Converters / DC-DC Converters Cosel MGF DC/DC Converter, 12V dc, -12 V dc/ 250 m |
| Brand | Cosel |
| Efficiency | 87% |
| Length | 22mm |
| Model | MGFW62412 |
| Depth | 12mm |
| Gross Weight | 7g |
| Width | 9.5mm |
| Mount Type | PCB |
| Series | MGF |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP-8 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Ripple and Noise | 200mV Pk-Pk |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 24V dc |
| Overcurrent Protection | Integrated |
| Standards/Approvals | C-UL, CSA, EN 62368-1, UKCA, CE, RoHS, UL60950-1, UL62368-1, cUL |
| Minimum Input Voltage | 9V |
| Number of Pins | 7 |
| Output Voltage 1 | 12, -12V dc |
| Output Current 1 | 250mA |
| Output Voltage Adjustment Range | 11.64 to 12.36 V |
| Isolation Voltage | 1kV dc |
| Output Current 2 | 0.2A |
| Output Voltage 2 | 15V |
| Remote ON/OFF | Available |
Key Features
- Dual 12V DC and -12V DC output voltages for versatile supply needs.
- Maximum output power of 6W and output current of 250mA on PCB mount.
- Wide input voltage range from 9V DC to 24V DC for adaptable integration.
- SIP-8 package with compact dimensions for space-efficient PCB installation.
- 87% efficiency reduces energy loss and minimizes heat output.
- Operates reliably in temperatures from -40°C to 85°C.
- Remote ON/OFF feature allows advanced power management.
- Integrated overcurrent protection ensures electrical safety.
Product Description
The Cosel MGFW62412 DC/DC Converter is a high-performance PCB mount power solution engineered for demanding compact electronic devices. Offering dual output voltages of 12V DC and -12V DC, this converter delivers up to 250mA output current and a maximum power rating of 6W, ideal for applications requiring reliable isolated supply lines.
Designed for versatile input compatibility, it supports a maximum input voltage of 24V DC and a minimum of 9V DC, allowing for adaptable integration into a wide range of systems. The SIP-8 package type and compact physical dimensions (22mm length, 9.5mm width, 12mm depth) make it suitable for space-constrained PCB designs.
Efficiency is key for this converter, with an 87% rating which ensures minimal energy waste and low heat emission. Safe operation is guaranteed by integrated overcurrent protection as well as a remote ON/OFF feature for effective power management in circuit designs.
The MGFW62412 model has robust environmental tolerance, functioning effectively across an operating temperature range between -40°C and 85°C, making it reliable for industrial, instrumentation, and commercial electronics installations.
Its isolation voltage of 1kV DC provides protective separation of input and output circuits, enhancing safety and preventing potential electrical faults. Ripple and noise are kept low at 200mV Pk-Pk, ensuring stable power delivery.
This converter is compliant with key international standards including C-UL, CSA, EN 62368-1, UKCA, CE, RoHS, UL60950-1, UL62368-1, and cUL, confirming quality and regulatory adherence for global applications.
Typical use cases include industrial automation, data acquisition systems, sensor interfacing, laboratory instruments, commercial electronics, and any devices requiring isolated DC power rails. Its compact footprint and reliable performance make it a preferred choice for designers prioritizing efficiency, space, and compliance.
Browse more DC Converter products and discover the entire Cosel MGF series via the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of 12V DC and -12V DC.
The maximum output power of this converter is 6W.
It supports an input voltage range from 9V DC to 24V DC.
This converter has an efficiency rating of 87%.
The dimensions of the SIP-8 package are 22mm in length, 9.5mm in width, and 12mm in depth.
It operates reliably in temperatures ranging from -40°C to 85°C.
Yes, it includes integrated overcurrent protection for electrical safety.
The ripple and noise are kept low at 200mV Pk-Pk.
It complies with several standards including C-UL, CSA, EN 62368-1, UKCA, CE, RoHS, UL60950-1, UL62368-1, and cUL.
It features a remote ON/OFF capability for advanced power management.
This model provides two outputs.
The isolation voltage is rated at 1kV DC, providing protective separation between input and output circuits.
