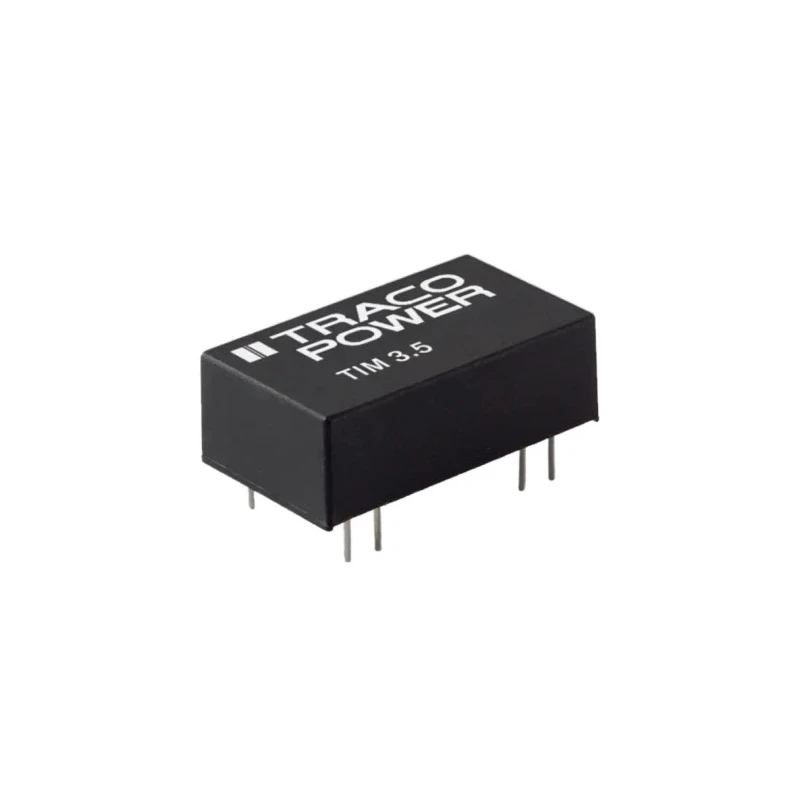

TRACOPOWER DC-DC Converter 5V DC, 700mA, 36V Input, 18V Min, 3.5W Through Hole TIM 3.5-2411
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 79% |
| Length | 24.3mm |
| Model | TIM 3.5-2411 |
| Depth | 10.2mm |
| Width | 14.4mm |
| Mount Type | Through Hole |
| Series | TIM 3.5 |
| Maximum Operating Temperature | 90°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 5041000h |
| Number of outputs | 1 |
| Maximum Output Power | 3.5W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 700mA |
| Isolation Voltage | 5kV ac |
Key Features
- Compact through-hole DC-DC converter for 5V regulated output at up to 700mA.
- Wide input voltage range from 18V to 36V DC for diverse applications.
- Maximum output power of 3.5W in a DIP package, ideal for PCB mounting.
- High isolation voltage up to 5kV AC ensures electrical safety and reliability.
- Operates efficiently between -40°C and 90°C for use in harsh environments.
- Long MTBF of over 5 million hours for extended service life.
- Single output design with seven pins simplifies board integration.
Product Description
The TRACOPOWER TIM 3.5-2411 is a high-performance DC-DC converter designed for applications requiring a stable 5V DC output voltage. Capable of supplying up to 700mA output current, this converter accepts a wide input voltage range from 18V to 36V DC, enabling compatibility with assorted power systems and field installations. With a maximum output power of 3.5W, it is an optimal choice for powering sensitive electronics, control circuits, or embedded systems where efficiency and voltage stability are critical.
Packaged in a compact DIP form factor, the TIM 3.5-2411 is intended for through-hole PCB mounting. Its small footprint makes it suitable for designs where board space and thermal management are concerns. The 5kV AC isolation voltage protects both the load and upstream equipment from electrical faults, ensuring reliable operation in industrial, instrumentation, medical, and communication equipment.
The robust design incorporates a high efficiency of 79%, delivering reduced power loss and optimal thermal performance even at the maximum rated output. Operating over a broad ambient temperature range from -40°C to 90°C, the unit is suitable for use in harsh environmental conditions encountered in industrial automation, telecom infrastructure, and laboratory equipment.
The TIM 3.5-2411 features a single output with a regulated 5V output and a load current up to 700mA, making it ideal for use as a power supply module within embedded controllers, test equipment, industrial sensors, and more. The 7-pin configuration simplifies integration and provides design flexibility.
Additional benefits include an impressive mean time between failures (MTBF) of over 5 million hours (5041000h), supporting reliability in mission-critical systems. The converter meets safety requirements for high-isolation applications and helps designers achieve compliance in regulated sectors.
This DC-DC converter is well suited for demanding applications in industrial automation, laboratory instrumentation, communications, process control, and any PCB-based design requiring efficient, isolated low-voltage DC supply in a compact, robust package.
For more DC Converter solutions and to explore TRACOPOWER's full range of power products, browse the EnvMart Electronics & Electricals categories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accepts a wide input voltage range from 18V to 36V DC.
The maximum output power of this unit is 3.5W.
It has an efficiency rating of 79%.
The TIM 3.5-2411 features an isolation voltage of 5kV AC.
The dimensions are 24.3mm in length, 14.4mm in width, and 10.2mm in depth.
This unit can supply an output current of up to 700mA.
It operates efficiently between -40°C and 90°C.
This model has a single output channel.
The MTBF for this unit is over 5 million hours.
This converter is designed for through-hole mounting.
It is packaged in a DIP (Dual In-line Package) format.
It is suitable for industrial automation, laboratory instrumentation, communications, and process control applications.
