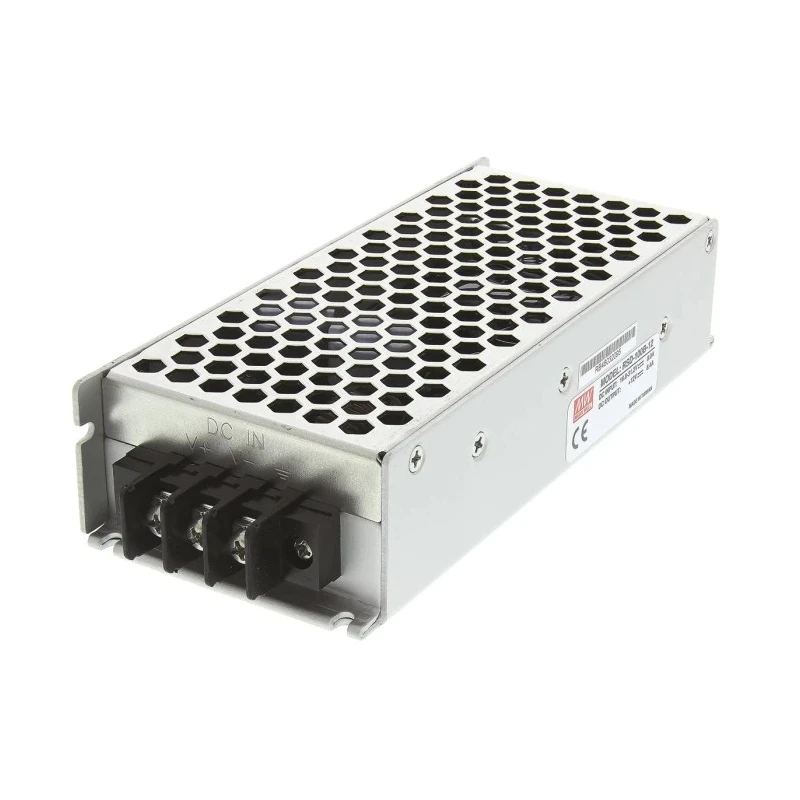

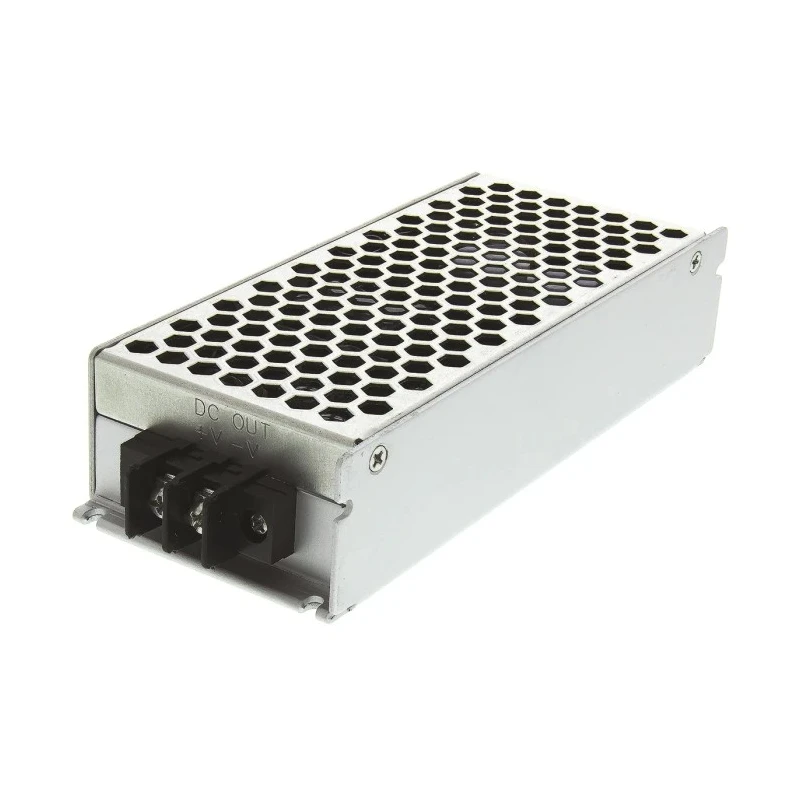

MEAN WELL DC-DC Converter 12V Output 24V Input 8.4A 100.8W Chassis Mount RSD-100B-12

MEAN WELL RSD-100B-12 is a 100W single output isolated DC-DC converter designed for reliable operation in industrial, railway, transportation, and vehicle-mounted DC power applications. It supports a wide input voltage range from 16.8V to 24V DC and delivers a regulated 12V DC output at 8.4A, with maximum output power rated at 100.8W. The device offers high conversion efficiency of 89%, ensuring energy-saving performance.

This converter features a chassis mounting package measuring 161mm in length, 36mm in width, and 36mm in depth, weighing 600g. It is built to operate reliably in harsh environments with an operating temperature range from -40°C to +70°C, including 5G anti-vibration capability suitable for rail and vehicle applications.

The product includes built-in constant current limiting, short circuit, overload, over voltage, and input reverse polarity protections to enhance robustness and system safety. Isolation voltage is rated at 4000V DC, with a 2:1 input ratio, protecting against hazardous voltage conditions.

MEAN WELL RSD-100B-12 complies with multiple railway standards including EN50155, IEC60571, IEC61373, and EN50121-3-2, making it suitable for integration into railway vehicles and other transportation equipment powered by DC sources.

This DC-DC converter is semi-encapsulated for PCB protection and utilizes 105°C electrolytic capacitors for long life and durability. It undergoes a 100% full-load burn-in test for quality assurance and has a Mean Time Between Failure (MTBF) of 254,100 hours, demonstrating its reliability in demanding industrial environments.

Operates with input voltage from 16.8V to 24V DC. Provides 12V DC output at 8.4A. Max output power of 100.8W with 89% efficiency. Built-in protections for electrical safety and reliability. Wide operating temperature range from -40°C to 70°C with 5G vibration resistance.

Compliance with railway certifications EN50155, IEC60571, IEC61373, and EN50121-3-2. Chassis mount design, compact size and lightweight construction.

This versatile DC-DC Converter is ideal for industrial, transportation, railway, manufacturing, and commercial electrical power systems. Its robust certifications and safety features make it suitable for critical applications requiring regulated DC power conversion. Browse the Electronics & Electricals category on EnvMart for compatible power supplies and converters from MEAN WELL and other leading brands.
