Level Transmitter

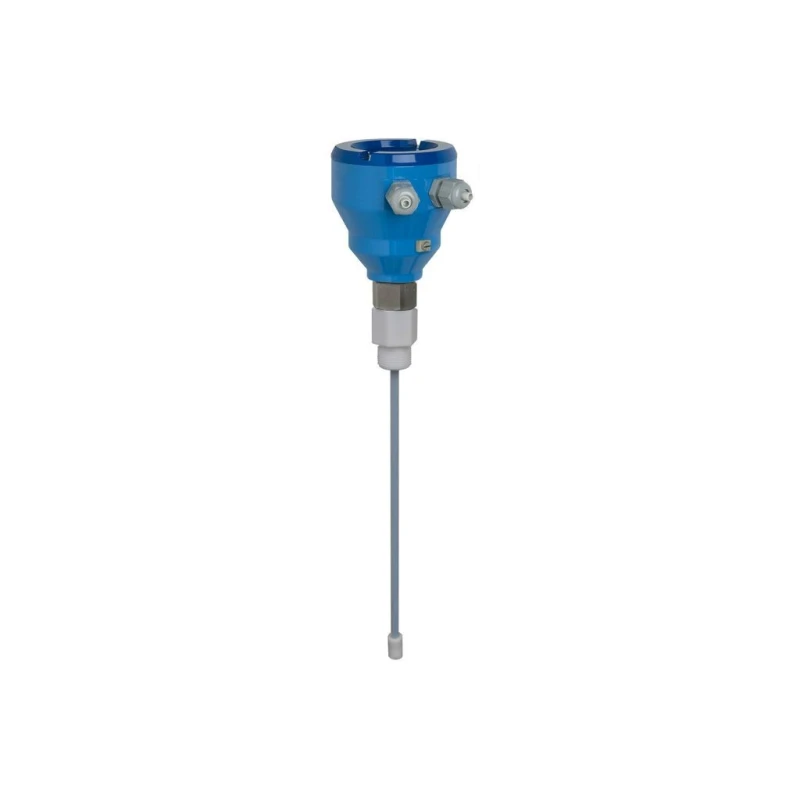

LTDR uses TDR (Time Domain Reflectometry) technology.Low-energy, high-frequency electromagnetic impulses,generated by the sensors circuitry, are propagated along theprobe which is immerged in the liquid to be measured.When these impulses hit the surface of the liquid, part of theimpulse energy is reflected back up the probe to the circuitrywhich then calculates the fluid level from the time differencebetween the impulses sent and the impulses reflected.The sensor can output the analyzed level as a continuousmeasurement reading through its analog output, or it canconvert the values into freely position able switching outputsignals. TDR Radar Level Transmitter for liquidsSimple 100 3000 mm/Coaxial probe 100 6000 mm/Cable probe 100 20000 mmThread fitting G 3/4EN 1.4404 (AISI 316L)ATEX version on demand

• The single rod probe is also recommended for installation in bypass chambers and stilling wells, which basically act together with the rod as a big coaxial probe.

Electrical specifications:4-wire system Electronics completely galvanically insulated from inputs/ outputs and tank potential| thus avoiding any problems from electrochemical corrosion protection of the tank Output functions continuous level measurement through analog output and point level detection through switching output,Mechanical specifications:Material exposed to tank atmosphere - Single rod probe 1.4404 / 316L and PEEKTM - Coaxial probe 1.4404 / 316L| PEEKTM O-ring seal EPDM or FKM (Viton) (other o-ring Materials on request) - Rope probe 1.4404 / 316L and PEEKTM Gasket at connection thread BELPA CSA-50| 2 mm thick
