Digital Process ORP Probe HI2000 Series (HI2014-2825), Gold, Ceramic, RS485, 25 m | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

Hanna HI2000 Series Digital Process ORP Probes-Gold-Ceramic-25m (82.0')

Name: Hanna HI2000 Series Digital Process ORP Probes-Gold-Ceramic-25m (82.0')
Brand: Hanna
SKU: 72339
Price: 944.95 USD
Availability: InStock



Category ORP Electrodes Brand Hanna

Specifications

Country of Origin	India
Measurement Range	±2000 mV
Body Material	PVDF
Outer Diameter	22.5 mm
Model	HI2014-2825
Cable Length	25 m
Temperature Sensor	Pt100
Max. Pressure	6 bar 87 psi
Connector Type	Direct wire connection

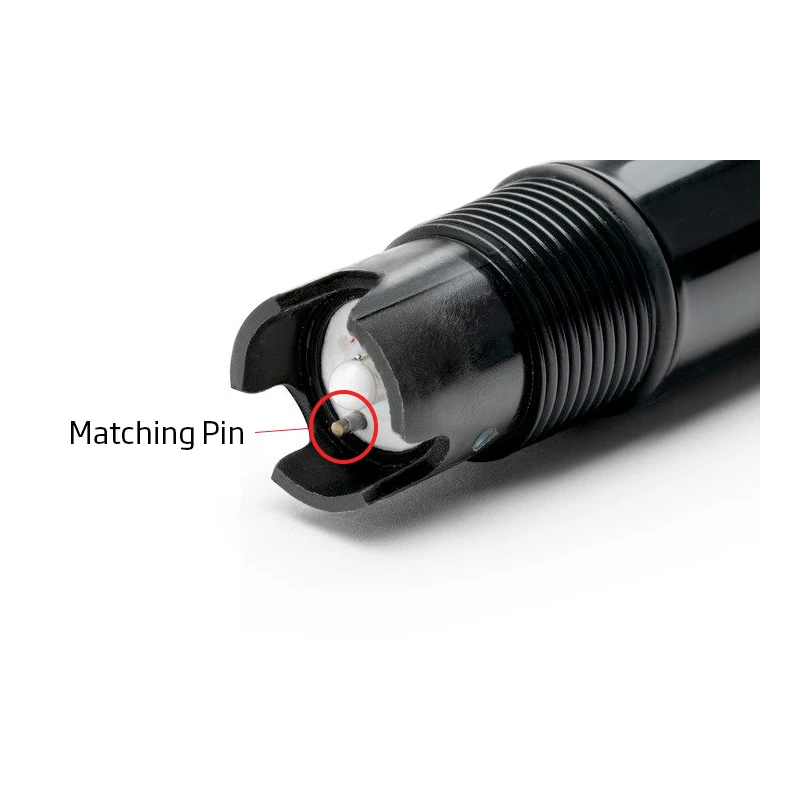

Matching Pin	yes
Series	HI2000
Body Length	140 mm
Sensor Material	Gold
Electrolyte	Polymer
Product Condition	New
MPN	HI2014-2825
Reference Junction	Ceramic, Double Junction
Environment (Operating Temperature)	-5 - 100 °C
Operating Temperature (Fahrenheit)	23 - 212 °F

Key Features

Digital Process ORP Probe HI2000 Series, model HI2014-2825, features a gold sensor, ceramic reference junction, and 25 m (82.0') direct wire connection for reliable, industrial-grade ORP monitoring.

Designed for process control and monitoring applications.
Equipped with chemical-resistant PVDF body for durability in harsh environments.
Gold sensor and ceramic double-junction electrolyte for stable and accurate ORP readings.
Integrated Pt100 temperature sensor ensures precise temperature compensation.
Measurement range of ±2000 mV, suitable for a wide array of industrial processes.
Operates in environments from -5 to 100 ºC and pressures up to 6 bar (87 psi).
RS485 digital output for seamless data integration with controllers.
3/4" NPT threads for direct insertion mounting or submersion with holders.

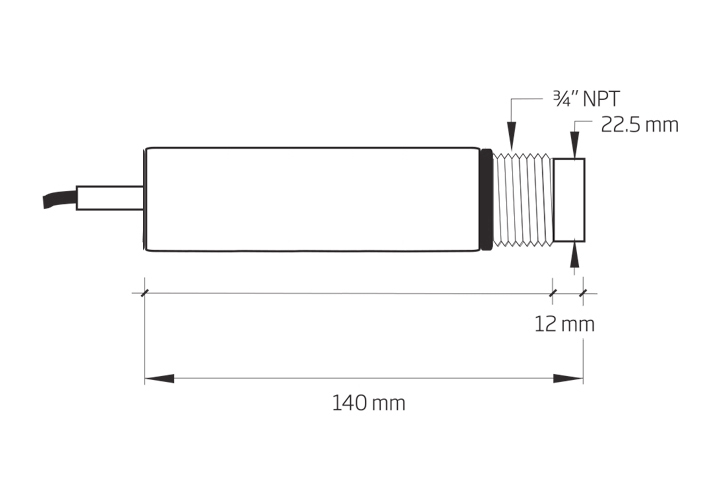

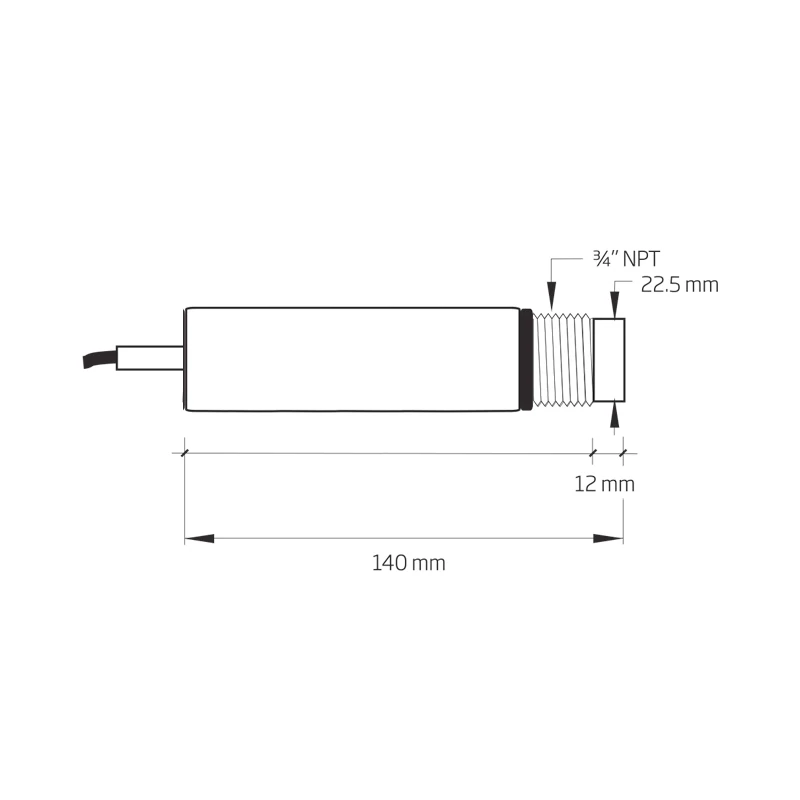

Probe outer diameter is 22.5 mm and overall length is 140 mm for flexible installations.
Compatible with HI510 Universal Process Controller and similar devices.

Product Description

The Digital Process ORP Probe HI2000 Series, model HI2014-2825, is engineered for robust industrial applications requiring high-accuracy oxidation-reduction potential (ORP) measurements. Featuring a gold sensor and a standard ceramic reference junction, this process probe delivers reliable and long-lasting performance in challenging chemical environments.

The sturdy PVDF body provides enhanced chemical resistance and supports installation via 3/4" NPT threads for both in-line and submersion mounting. An integrated Pt100 temperature sensor ensures real-time temperature compensation, increasing measurement precision across a broad range from -5°C to 100°C. The double junction and polymer electrolyte help prevent clogging and extend service life, making this probe optimal for continuous monitoring tasks.

Industrial-grade digital ORP probe designed for continuous process monitoring.
Gold sensing element ensures high sensitivity and resistance to chemical fouling.
Ceramic junction and double-junction design guard against contamination and extend lifetime.
PVDF probe body resists acids, solvents, and oxidizers for durable installation.
Direct RS485 digital signal output for easy system integration.
Wide working range: -5 to 100 ºC, up to 6 bar (87 psi) maximum pressure.
Measurement range of ±2000 mV meets diverse industrial and water treatment requirements.
Probe is automatically detected by compatible process controllers, including the HI510 Universal Process Controller.
Convenient 25 m (82.0') direct wire cable connection facilitates remote or hard-to-reach installations.

This probe is extensively used in water treatment plants, chemical manufacturing, food processing, pharmaceutical production, and environmental monitoring. It serves both laboratory and field process applications where high performance and reliability are critical.
