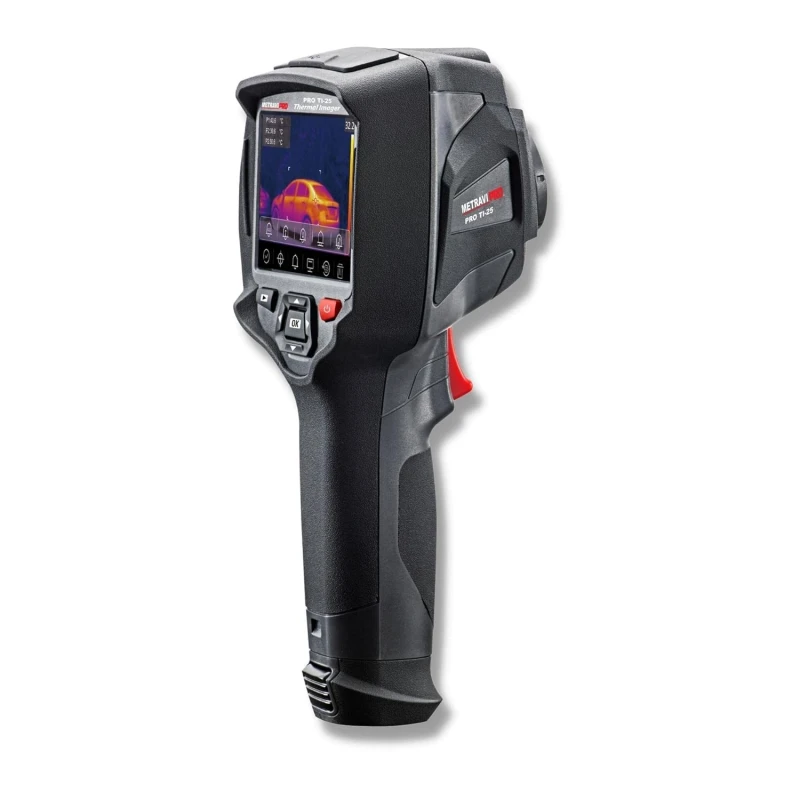

Metravi Pocket Thermal Imager PRO TI-25
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi PRO TI-25 Pocket Thermal Imager |
| Brand | Metravi |
| Model | TI-25 |
| Measurement Accuracy | ±2°C(3.6°F)or±2%of reading(Environment temperature10~35°C Object temperatureGreater than 0°C) |
| Image frequency | 25Hz |
| IR resolution | 120×192 pixels |
| Focal Length | 3.2mm |
| Thermal Sensitivity/NETD | Less than 0.01°C at 30°C (86°F)/100mK |
| Focus Mode | Focus-free |
| Spatial Resolution (IFOV) | 3.75mRad |
| Zoom | 1–32x continuous digital zoom |
| Set-Up Commands | Local adaptation of units language date and time formats information of camera |
| Field Of View (Fov)/Minimum Focus Distance | 56°×42°/0.5m |
| Focal Plane Array (Fpa)/Spectral Range | Uncooled microbolometer 8–14µm |
| Image Presentation Display | 3.5inch Touchscreen Display 640x480pixels |
| Image Presentation Image Modes | IR Image Visual Image Picture in Picture Auto-fusion |
| Image Presentation Colour Palette | Iron Rainbow Grey Grey Inverted Brown Blue-Red Hot-Cold Feather Above Alarm Below Alarm Zone Alarm Vision Zone |
| Measurement Object Temperature Range | -20°~550°C(-4°~1022°F) |
| Measurement Analysis Spot | Center Spot Three Manual Spots |
| Measurement Analysis Automatic Hot/Cold Detection | Auto Hot or Cold markers |
| Measurement Analysis Area | Three Area Analysis |
| Measurement Analysis Line | Two Line Analysis |
| Measurement Analysis Measurement Corrections | Emissivity Reflected temperature |
| Storage Of Videos Storage Media | 8GB MicroSD Card and 3.4GB internal EMMC |
| Storage Of Videos Video Storage Format | Standard MPEG-4 encode 640x480 at 30fps on memory cardGreater than 60minutes |
| Storage Of Videos Video Storage Mode | IR/visual images simultaneous storage of IR and visual images |
| Storage Of Images Image Storage Format | Standard JPEG or HIR files including measurement data on memory cardGreater than 6000pictures |
| Storage Of Images Image Storage Mode | IR/visual images simultaneous storage of IR and visual images |
| Storage Of Images Image Analyses | Internal image analysis tools Complete function |
| Set-Up Languages | Multinational |
| Digital Camera Built-In Digital Camera | 2Megapixels |
| Digital Camera Built-In Digital Lens Data | FoV65° |
| Data Communication Interfaces Interfaces | USB Type C and WiFi |
| Data Communication Interfaces Usb | Data transfer between camera and PC Live video on camera and PC |
| Data Communication Interfaces Wifi | 802.11 transfer images and realtime video stream |
| Power System Battery | Li-lon battery 4hours operating time |
| Power System Input Voltage | DC5V |
| Power System Charging System | In camera(AC adapter) |
| Power System Power Management | Auto Power-off |
| Environmental Data Operating Temperature Range | -15°~50°C(5~122°F) |
| Environmental Data Storage Temperature Range | -40°~70°C(-40°~158°F) |
| Environmental Data Humidity(Operating And Storage) | 10%~90% |
| Environmental Data Drop Test | 2mts Drop-tested |
| Environmental Data Bump | 25g(IEC60068-2-29) |
| Environmental Data Vibration | 2g(IEC60068-2-6) |
| Physical Data Camera Weight Incl Battery | Less than 500g |
| Physical Data Camera Size(Lxwxh) | 224x77x96mm |
Key Features
- Object Temperature Range: -20° to 150°C (4° to 302°F) / 0° to 550°C (32° to 1022°F)
- Accuracy ±2°C (3.6°F) or ±2% of reading (Environment temperature 10-35°C; Object temperature >0°C)
- Thermal Sensitivity/NETD: <0.05°C at 30°C (86 °F)/ 80mK
- Image Frequency: 50Hz
- Zoom: 1-32x continuous, Digital Zoom
- Focal Plane Array (FPA)/Spectral Range: Uncooled microbolometer/8-14μm
- IR Resolution: 120×90 pixels
- Center Spot, Three Manual Spots
- Automatic Hot/Cold Markers
- Analysis: Three Area Analysis, Two Line Analysis
- Image Storage Mode IR/visual images
- Storage Media: 8GB MicroSD card and 3.4GB internal EMMC
- Video Storage Standard MPEG-4 encode. 640×480 at 30fps, on memory card
- Image Analysis Tools
- Interfaces: USB Type C and WiFi
- Rechargeable Li-Ion battery, 4 hours operating time
- Auto Power-off
Product Description
The Metravi PRO TI‑25 Pocket Thermal Imager is a compact, high‑performance thermal imaging camera designed for quick diagnostics of electrical, mechanical and building applications. With a thermal resolution of e.g., 160×120 pixels, temperature range –20 °C to 300 °C (or higher depending on version), and built‑in LED light, it allows engineers and technicians to inspect panels, motor bearings, HVAC ductwork and insulation conditions on the go. The intuitive user interface includes colour palette selection (iron‑red, rainbow, grey‑scale), spot and area temperature measurement, image capture and export via micro‑SD or USB. The rugged handheld housing, long battery life and on‑screen visible light camera overlay make it ideal for field service work.
Available on EnvMart, these Thermal Imaging Cameras are perfect for detecting heat signatures and temperature variations accurately. Metravi Thermal Imaging Cameras provide high-resolution imaging, precision, and reliability, making them ideal for electrical inspections, maintenance, and industrial applications.
