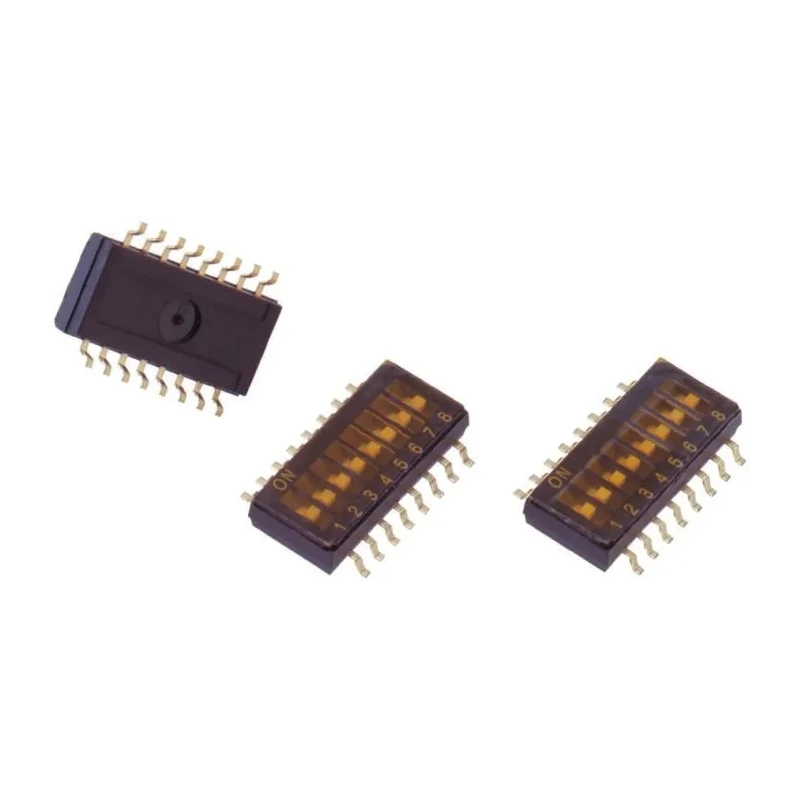

Omron Slide Rotary Coded DIP Switch Surface Mount A6H-4102

Omron A6H-4102 Slide Rotary Coded DIP Switch is a high-quality surface mount switch featuring an ultra low profile height of 1.55 mm combined with a half pitch layout which reduces mounting area by approximately 63%. Designed with a slide actuator type, this rotary coded DIP switch delivers accurate position code switching suitable for complex electronic circuits.

This component exhibits a contact resistance of 200 milliohms providing low conduction losses and an insulation resistance of at least 100 megaohms at 250 Vdc to prevent leakage currents, enhancing performance reliability in industrial and commercial applications.

Rated for a mechanical life of 1000 operations, the switch is optimized for durability in environments requiring limited mechanical actuation cycles. Its surface mount construction supports automated placement onto printed circuit boards, accelerating manufacturing processes.

The product complies fully with RoHS environmental standards, ensuring no hazardous substances are used in its construction, making it ideal for use in modern electronics manufacturing with stringent environmental requirements.

Ultra low profile of 1.55 mm reduces height footprint effectively. Half pitch design reduces mounting space by 63% compared to full pitch equivalents. Slide actuator type enables reliable rotary coded switching. Contact resistance rated at 200 milliohms for efficient conduction.

Insulation resistance minimum 100 megaohms at 250 Vdc ensures electrical isolation. Mechanical life rated for 1000 operations ensuring product durability. Surface mount design facilitates automated PCB assembly. Compliant with RoHS directive ensuring environmentally safe materials.

This Rotary Coded DIP Switch is suitable for use in a wide range of industrial and commercial electronic applications including automation controls, instrumentation, PCB design, and assembly lines requiring compact and reliable switching solutions.
