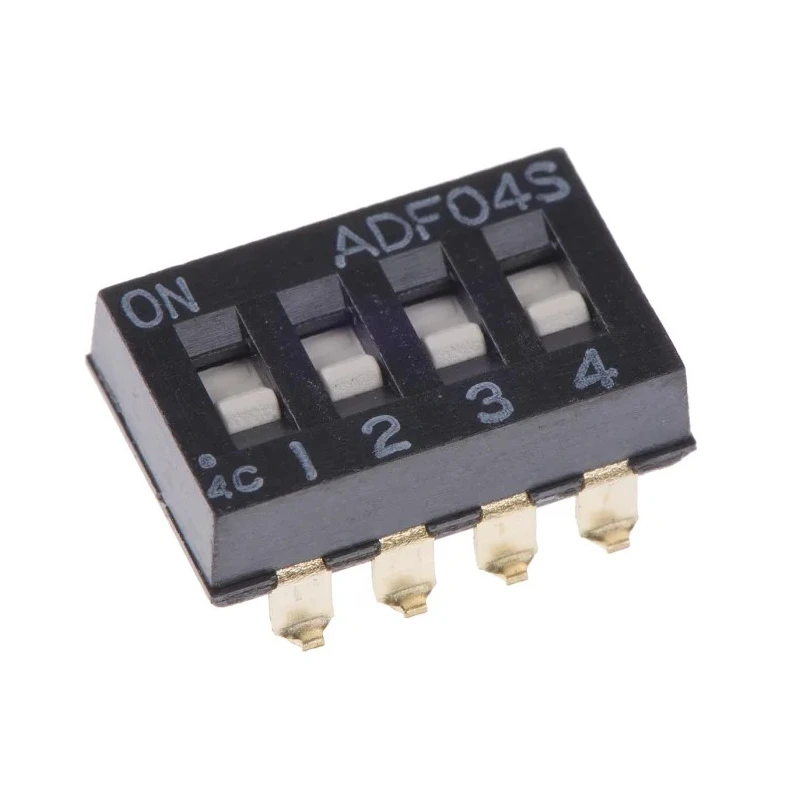

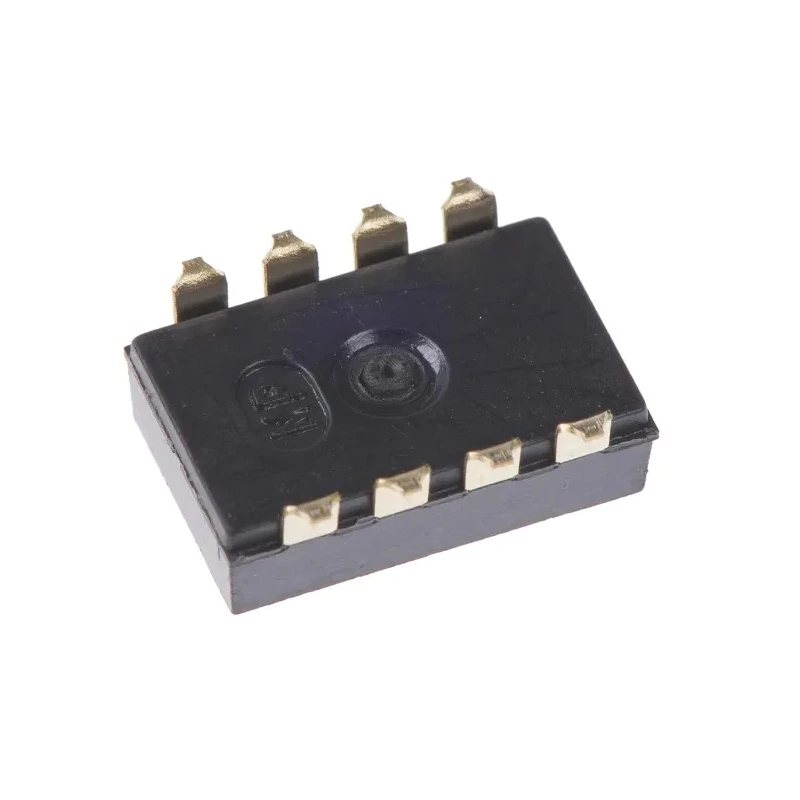

TE Connectivity Slide Rotary Coded DIP Switch Surface Mount ADF04S04

TE Connectivity ADF04S04 Slide Rotary Coded DIP Switch Surface Mount is a high-quality electronic switch designed for precise and reliable rotary encoding applications. Featuring a flush actuator slide mechanism, it is optimized for surface mount technology, making it ideal for modern PCB assembly processes.

This switch incorporates a high pressure wiping contact system that resists degradation during aqueous or solvent cleaning without the need for additional tape sealing. It can withstand harsh manufacturing conditions including vapour phase reflow and wave soldering, ensuring robustness and durability.

The device exhibits an exceptionally low contact resistance of 50mΩ, which contributes to excellent electrical performance and high signal integrity. Additionally, its insulation resistance of 1000 MΩ at 100 Vdc protects the circuit from unintended current leakage, enhancing device safety.

With a mechanical life span of 1000 cycles, the ADF04S04 is designed to provide consistent switching action over extended operational periods. Its compact and reliable design makes it suitable for various applications including industrial control equipment, instrumentation, and electronic automation systems.

Flush actuator slide switch suitable for surface mount applications. High pressure wiping contact for cleaning durability. Resistant to vapor phase reflow and wave soldering. Contact resistance: 50mΩ ensures low electrical loss.

Insulation resistance: 1000 MΩ at 100 Vdc for safety. Mechanical life: 1000 cycles, reliable switching durability. Compact design for efficient PCB integration. Suited for industrial automation, control devices, and electronics.

This Rotary Coded DIP Switch is an essential component for precision electronic controls, providing dependable performance in a compact form. Explore more TE Connectivity components in the Electronics & Electricals category on EnvMart.
