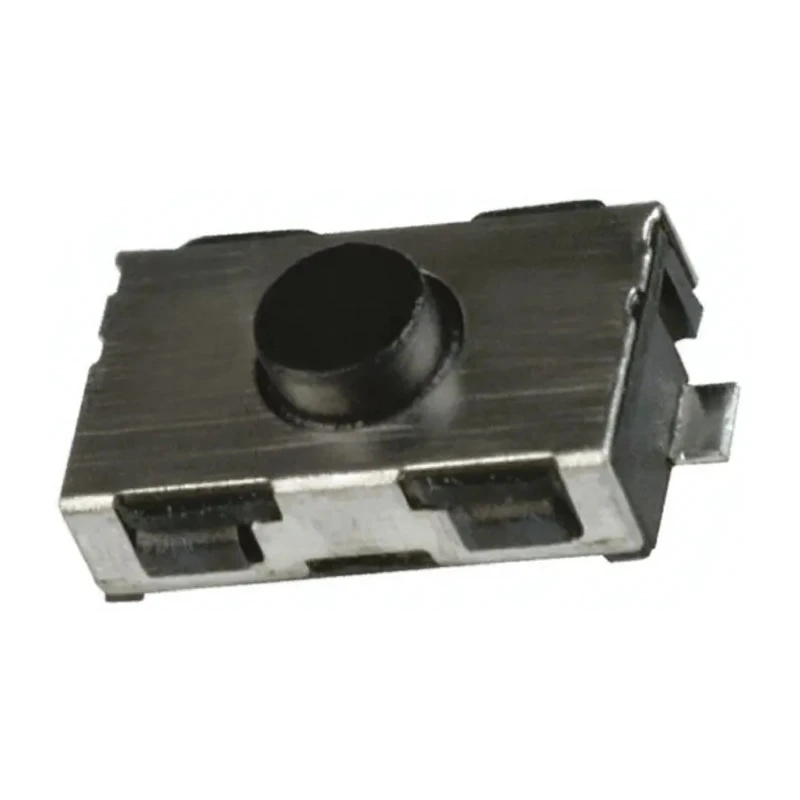

C & K Subminiature IP50 Grey Tactile Switch, 0.75 mm Actuator Length, SPST Momentary, 12 V dc, Snap-in Mount IP50 IP50

C & K IP50 model subminiature grey tactile switch features a 0.75 mm rubber actuator in a snap-in mount configuration. This momentary SPST switch is rated for 12 V DC operation and provides reliable tactile switching for compact electronic devices.

Its small size with dimensions of 7.3 mm length, 3.8 mm width, and 2.5 mm height enable integration into dense circuit assemblies. The switch operates under an operating force of 4.5N and is engineered for a robust mechanical life of up to 100,000 cycles.

With an IP50 ingress protection rating, it offers moderate protection against dust ingress, suitable for many industrial and automotive applications. Operating temperature range extends from -40°C to 85°C allowing use in harsh environmental conditions.

The terminal configuration is surface mount technology (SMT) in a snap-in mount style which reduces assembly time and improves production efficiency. The switch contacts are available in either gold for 1 VA or silver for 0.2 VA ratings to suit different electrical requirements.

This tactile switch is ideally suited for automotive controls, industrial electronics, cellular phone buttons, and network equipment where compact size and reliable tactile feel are important. Manufactured in France, C & K ensures quality and durability.

This Tactile Switch features a grey rubber actuator with a length of 0.75 mm. It operates with a Single Pole Single Throw (SPST) contact configuration for momentary switching. The snap-in mount design facilitates easy surface-mount installation.

It supports a maximum contact DC voltage of 12 V dc and an operating temperature range from -40°C to 85°C. The switch has an IP50 ingress protection rating and a mechanical life rated for 100,000 cycles. The operating force required is 4.5N for tactile feedback performance.

The switch dimensions are compact with a height of 2.5 mm, length of 7.3 mm, and width of 3.8 mm. Applications include automotive, industrial electronics, cellular phones, and computer network equipment. The switch is manufactured in France to high-quality standards ensuring reliable subminiature tactile operation.
