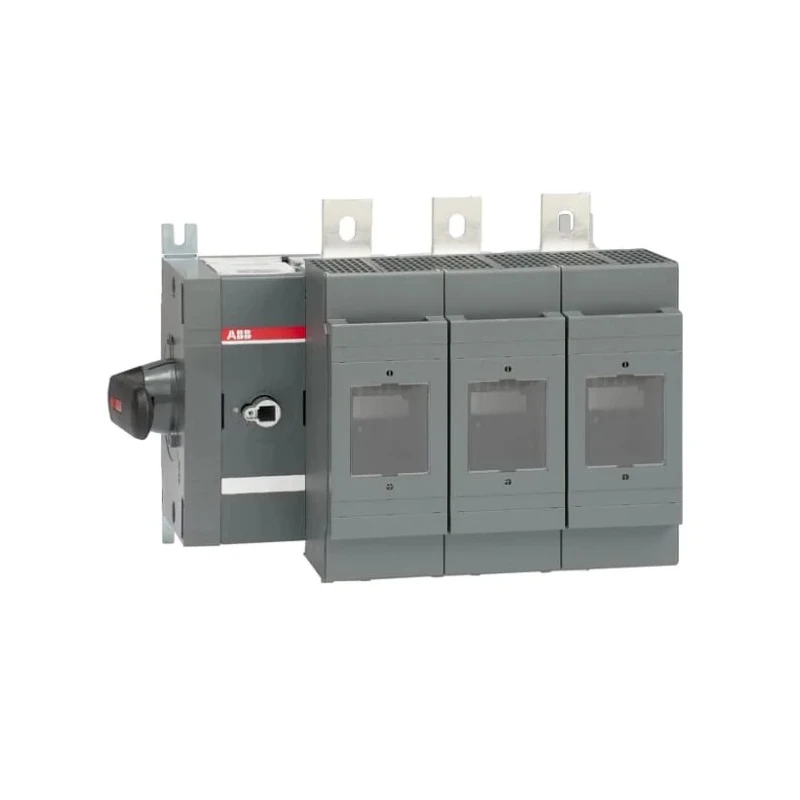

ABB Fuse Switch Disconnector, 3-Pole, Base Mount, Lug Terminal, 80kA, Mechanical Fuse Size C1-C2 1SCA108142R1001



Category Fuse Switch Disconnector Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Model	1SCA108142R1001
Mount Type	Base
Terminal type	Lug Terminal
Number of Poles	3
Standards/Approvals	RoHS
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	235-2233Brand: ABBManufacturers Part No.: 1SCA108142R1001
Mechanical Fuse Size	C1-C2
Enclosed/Not Enclosed	Enclosed
Fuse Current	80kA

Key Features

The switch disconnector features a direct mounted handle for easy operation.
It uses British Standard fuse system compatible with mechanical fuse sizes C1-C2.
The terminal width is 39 mm ensuring robust and secure connections.
Suitable for high short-circuit ratings up to 80kA for reliable electrical protection.
Pollution degree rating of 3 for industrial environments.
Switch operating mechanism 03 is located on the left side for convenient handling.
Line terminals are positioned Top In - Bottom Out and Bottom In - Top Out for versatile installation.
RoHS compliant assuring environmental safety standards adherence.

Product Description

ABB 1SCA108142R1001 Fuse Switch Disconnector is a high-performance, enclosed 3-pole device with base mounting designed for industrial electrical protection applications. It supports a fuse current rating of 80kA, making it suitable for demanding environments with high short-circuit requirements.

The device operates on a side-operated mode via a direct mounted handle, facilitating easy switching and isolation of circuits. It is compatible with British Standard fuse systems and uses mechanical fuse sizes C1-C2.

Terminals are lug type with a robust 39 mm width to ensure reliable and secure electrical connections, ideal for industrial installations requiring effective current interruption.

The switch has a pollution degree rating of 3, making it apt for environments with moderate to heavy contamination, common in heavy industry and manufacturing plants. The operating mechanism is type 03 placed on the left side of the device.

Line terminals are designed for flexible wiring installation with Top In - Bottom Out and Bottom In - Top Out arrangements. The enclosure provides protection and complies with RoHS standards, reflecting ABB's commitment to environmental and safety regulations.

The switch disconnector features a direct mounted handle for easy operation. Uses British Standard fuse system compatible with mechanical fuse sizes C1-C2. Enclosed design with base mounting and lug terminal type connections.

Rated for fuse current of 80kA ensuring robust protection in electrical circuits. Pollution degree 3 rating for dependable performance in industrial environments. Switch operating mechanism 03, positioned on the left side for ergonomics.

Line terminals positioned Top In - Bottom Out and Bottom In - Top Out for installation flexibility. RoHS compliant ensuring compliance with environmental safety requirements.

This Fuse Switch Disconnector is widely used in electrical automation, industrial machinery, manufacturing facilities, and power distribution systems requiring secure circuit isolation and protection. ABB's trusted quality and compliance with international standards make this device a reliable choice for heavy-duty electrical installations.
