Nexperia Zener Diode 18 V 365 mW Surface Mount 2-Pin DFN1006BD-2 BZX8850S-C18-QYL

Nexperia BZX8850S-C18-QYL is a high-quality Zener diode designed as a single element voltage regulator diode, featuring an 18 V nominal Zener voltage and 365 mW maximum power dissipation in a miniaturized DFN1006BD-2 surface mount package.

This device is optimized for low current applications with a test current of 50 μA, making it ideal for use in portable battery-powered circuits, general low bias voltage regulation, and stable voltage reference applications.

The Zener diode has a compact height of 0.47 mm and length of 1 mm, allowing integration into space-constrained industrial, automotive, and consumer electronics. It has a maximum reverse leakage current of 50 nA which helps maintain circuit stability and low noise.

Built to meet automotive AEC-Q101 standards, the device suits automotive electronics requiring high reliability and stringent quality requirements. Its wide operating temperature range from -55°C to 150°C guarantees stable operation across harsh environmental conditions.

The typical voltage temperature coefficient of 12.4 mV/K ensures predictable voltage regulation over temperature variations. The side-wettable flanks package design supports advanced reflow soldering techniques for robust mechanical and electrical connections.

Typical applications include industrial control systems, laboratory instruments, telecommunications, power management in consumer devices, and automotive electronics. The package contains a single Zener diode in the BZX8850S series housed in a DFN1006BD-2 surface mount package with 2 pins.

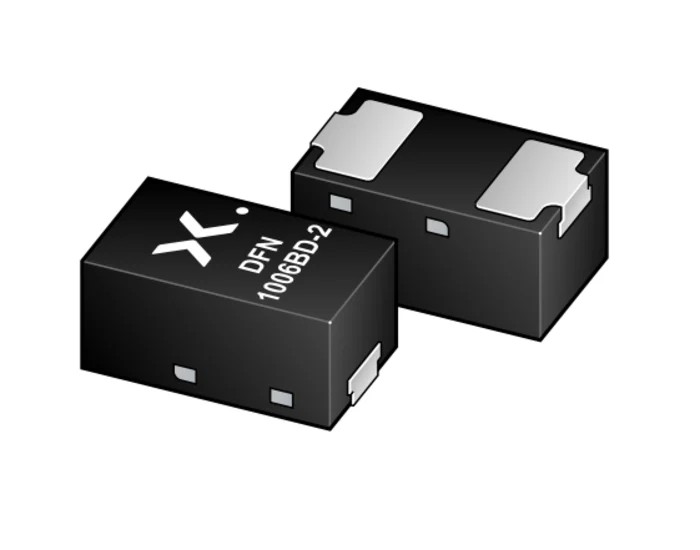

The diode is housed in a compact DFN1006BD-2 package with two pins. Offers a nominal Zener voltage of 18 V with ±5% tolerance. Designed for low test current operation at 50 μA, ideal for portable battery-powered applications.

Maximum power dissipation is 365 mW ensuring robust performance in small form factor devices. Maximum reverse leakage current is only 50 nA, enhancing stability and reliability. Operating temperature range spans from -55°C to 150°C suitable for harsh environments.

Typical voltage temperature coefficient is 12.4 mV/K for predictable voltage response. Automotive grade compliance with AEC-Q101 standard ensures high quality and durability. Side-wettable flanks aid in improved soldering and assembly processes.

Working voltage range nominally spans 1.8 V to 75 V for versatile circuit applications. Explore more semiconductor and discrete component products suitable for your industrial, automotive, and consumer electronics applications available at EnvMart.
