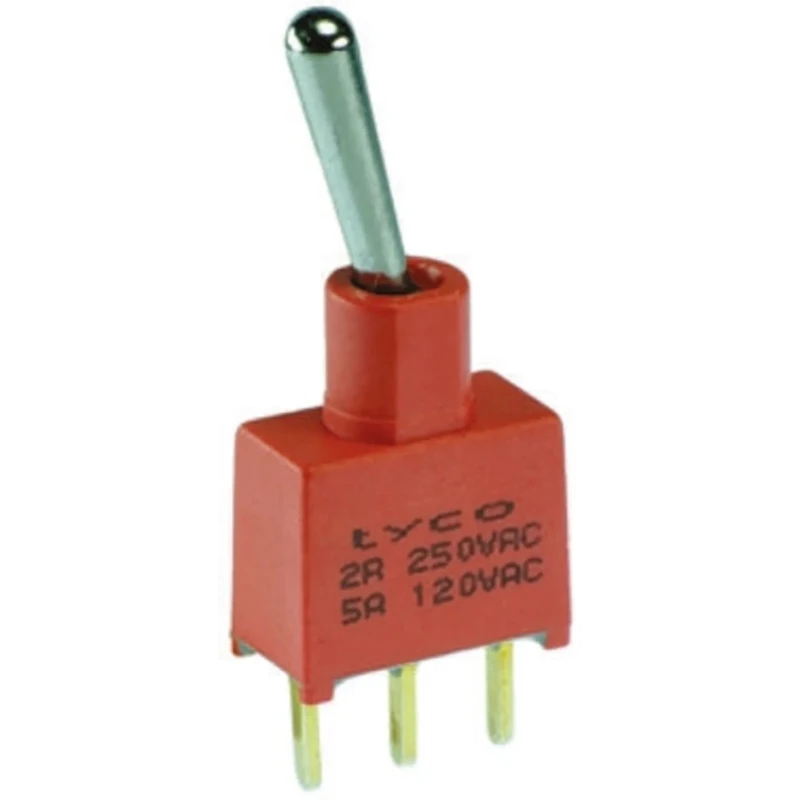

TE Connectivity Gemini AE Series Toggle Switch, PCB Mount, On-Off-On, SPDT, Through Hole Terminal, 28 V dc, 115 3-1825142-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.37in |
| Length | 0.5in |
| IP Rating | IP67 |
| Width | 0.26in |
| Mount Type | PCB |
| Series | Gemini AE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 12.7mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- The switch features a through hole terminal type for reliable PCB connections.
- It offers an actuator length of 12.7 mm made from phenolic material.
- The device meets IP67 sealing standards for protection against dust and immersion.
- Operating temperature ranges from -30°C to 85°C ensuring durability in diverse environments.
- The switch contact current rating is 400 mA, suitable for moderate current applications.
- Compact dimensions of 0.5 in length, 0.26 in width, and 0.37 in height.
- The switch is RoHS compliant, making it environmentally safe.
- It uses a break-before-make contact timing mechanism typical for Gemini AE Series switches.
Product Description
TE Connectivity 3-1825142-0 Gemini AE Series toggle switch is a robust PCB mount electrical component designed for reliable On-Off-On SPDT (Single Pole Double Throw) operation. It supports a contact DC voltage of 28 V and AC voltage up to 115 V, making it suitable for a variety of industrial and automation applications.
The switch is constructed with a stainless steel frame and brass tin-plated solder support to ensure long-lasting performance and excellent conductivity. Its epoxy sealed terminals seal the internals, providing IP67 protection against dust ingress and immersion in water.
The actuator, measuring 12.7 mm in length, is made from durable phenolic material suitable for repeated mechanical operation. The compact size and through hole terminal configuration allow easy PCB mounting facilitating assembly in electronic devices and control panels.
Operating temperature range from -30°C to 85°C allows its use in harsh environments such as industrial automation, control systems, and electrical machinery with varying thermal conditions. The 400 mA contact current rating supports switching moderate electrical loads.
This toggle switch complies with RoHS environmental standards, confirming its lead-free and eco-friendly design. The Gemini AE series features break-before-make contact timing to avoid short circuits during state changes.
SPDT contact configuration with On-Off-On switch operation. Through hole terminal type for secure PCB mounting. IP67 rated for dust and water resistance. Phenolic actuator material with 12.7 mm actuator length. 400 mA contact current suitable for moderate load applications.
Compact dimensions: 0.5 in length × 0.26 in width × 0.37 in height. RoHS compliant for environmental safety. Operating temperature from -30°C to 85°C ensures versatility in various industrial uses.
Ideal for industrial, automation, electrical, and manufacturing applications, TE Connectivity's Gemini AE toggle switch provides reliable, durable switching solutions for designers and engineers. Explore more Toggle Switches and related products in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration with an On-Off-On switch operation.
The compact dimensions are 0.5 inches in length, 0.26 inches in width, and 0.37 inches in height.
The maximum operating temperature for this toggle switch is 85°C.
It has a contact current rating of 400 mA, suitable for moderate current applications.
This unit is designed for PCB mounting with a through hole terminal type for secure connections.
The actuator length is 12.7 mm and is made from phenolic material.
It has an IP67 rating, providing protection against dust ingress and immersion in water.
The switch supports a contact DC voltage of 28 V and an AC voltage up to 115 V.
Yes, this toggle switch is RoHS compliant, confirming it is lead-free and environmentally safe.
The minimum operating temperature for this switch is -30°C, allowing it to function in diverse environments.
It uses a break-before-make contact timing mechanism, which helps avoid short circuits during state changes.
This model is suitable for various industrial and automation applications, including control systems and electrical machinery.
