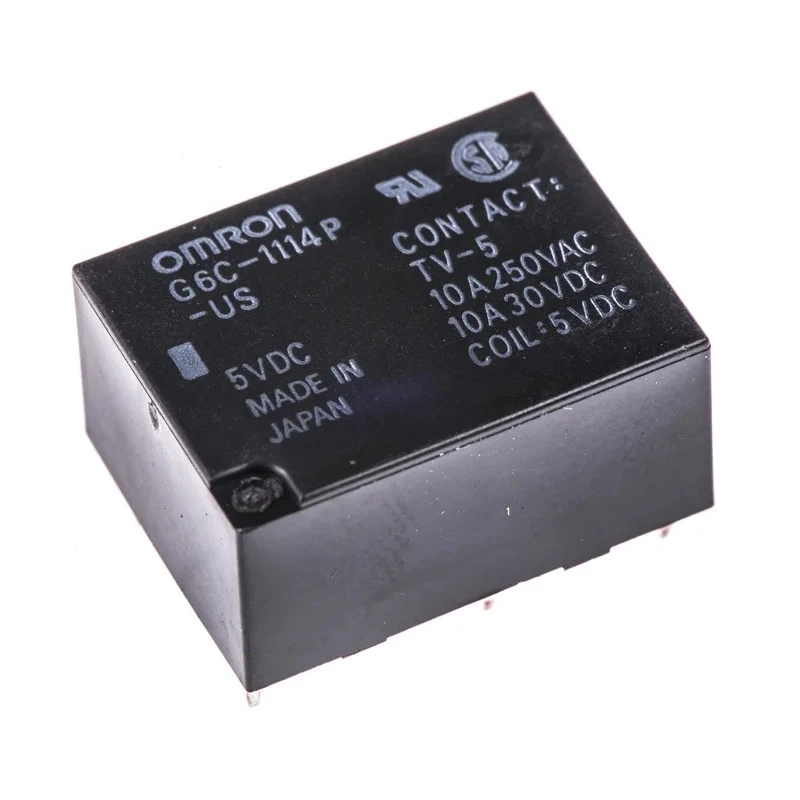

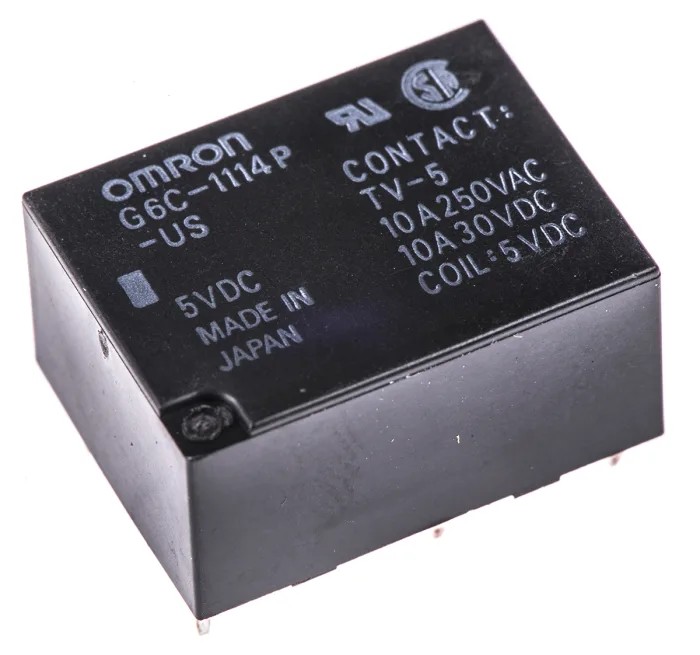

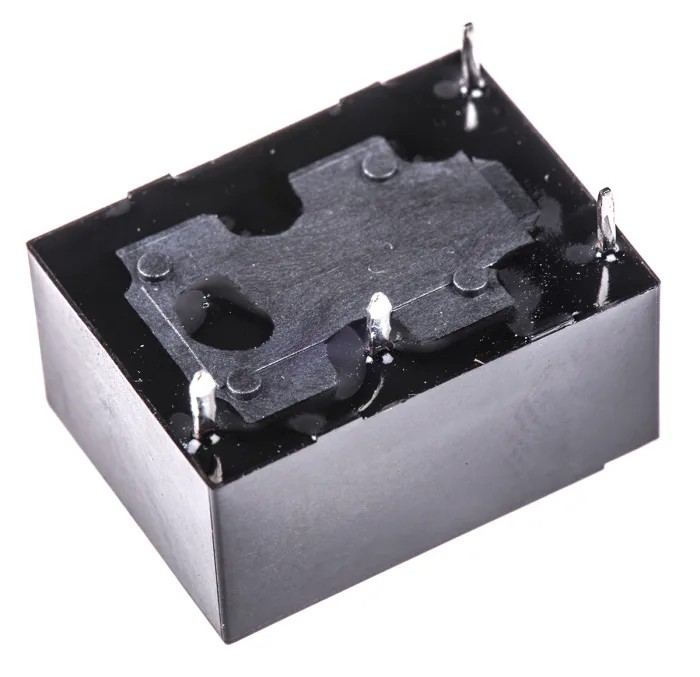

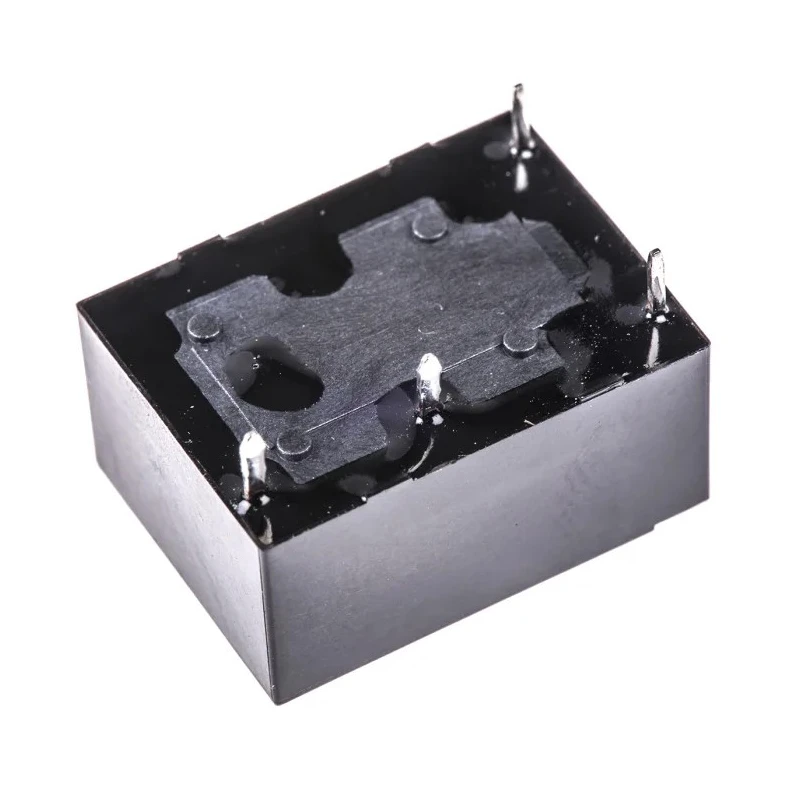

Omron PCB Power Relay 5V DC Coil, 10A Switching Current, SPST, G6C-1114P-US 5DC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 10mm |
| Length | 20mm |
| Model | G6C-1114P-US 5DC |
| Width | 15mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6C |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | VDE, UL, RoHS, CSA |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
| Switching Power | 300W |
| Omron PCB Mount Non-Latching Relay, 5V dc Coil, 10A Switching Current, SPSTBrand | Omron |
Key Features
- Operates on a low coil voltage of 5V DC for efficient power consumption.
- Supports a switching current capacity of up to 10 amps.
- SPST contact configuration ensures simple single pole single throw switching.
- Compact dimensions of 20mm length, 15mm width, and 10mm height.
- Rated switching power of 300 watts for reliable electrical load handling.
- Wide operating temperature range from -25°C to 70°C for diverse environments.
- Silver alloy contacts deliver low resistance and excellent conductivity.
- Solder terminal type for secure PCB mounting connection.
Product Description
Omron G6C-1114P-US 5DC is a high-performance PCB Power Relay designed for industrial and automation applications requiring reliable switching of electrical loads. This model features a 5V DC coil voltage and is capable of switching currents up to 10 amperes using a SPST (Single Pole Single Throw) contact configuration. Its compact form factor (20mm x 15mm x 10mm) allows it to be integrated easily within tight PCB layouts.
Constructed with silver alloy contact materials, this relay ensures minimal contact resistance and consistent electrical conductivity. The relay operates efficiently, consuming only 200 milliwatts of coil power, which translates into energy savings and reduced heat generation.
Suitable for a variety of industrial environments, it supports a broad operating temperature range from -25°C to 70°C. The relay is capable of switching DC voltages up to 30V and AC voltages up to 250V, making it compatible with many control and signal conditioning circuits.
The relay terminals are designed for solder mounting, providing secure and durable attachment to PCBs. It meets industry standards and approvals such as VDE, UL, RoHS, and CSA, assuring compliance with safety and environmental regulations.
This Omron power relay is an ideal component for automation, electrical equipment, manufacturing controls, HVAC systems, instrumentation, and other power relay applications requiring compact, efficient, and reliable switching solutions.
Operates on a 5V DC coil voltage for low power consumption. 10A maximum switching current supports medium power applications. Compact size with length 20mm, width 15mm, and height 10mm. Silver alloy contact material ensures durability and conductivity.
Wide temperature tolerance from -25°C to 70°C for harsh environments. Approved by UL, CSA, VDE, and compliant with RoHS standards. Solder terminal type for secure PCB installation. Switching power rating of 300W suitable for various equipment.
Manufactured in Japan, reflecting premium product quality. Explore more industrial components like this Omron Power Relay in EnvMart’s Electronics & Electricals category for reliable automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates on a coil voltage of 5V DC, which allows for efficient power consumption.
It can handle a maximum switching current of 10A, making it suitable for medium power applications.
The relay has compact dimensions of 20mm in length, 15mm in width, and 10mm in height.
This model features a SPST (Single Pole Single Throw) contact configuration for simple switching operations.
The rated switching power of this relay is 300 watts, suitable for reliable handling of electrical loads.
It operates effectively within a wide temperature range from -25°C to 70°C, accommodating diverse environments.
The contacts are made of silver alloy, providing low resistance and excellent conductivity.
It features a solder terminal type for secure mounting on printed circuit boards (PCBs).
This relay can switch DC voltages up to 30V and AC voltages up to 250V.
It meets industry standards and approvals including VDE, UL, RoHS, and CSA, ensuring compliance with safety and environmental regulations.
The coil power consumption is 200 milliwatts, contributing to energy efficiency.
This relay is manufactured in Japan, reflecting its quality and reliability.
