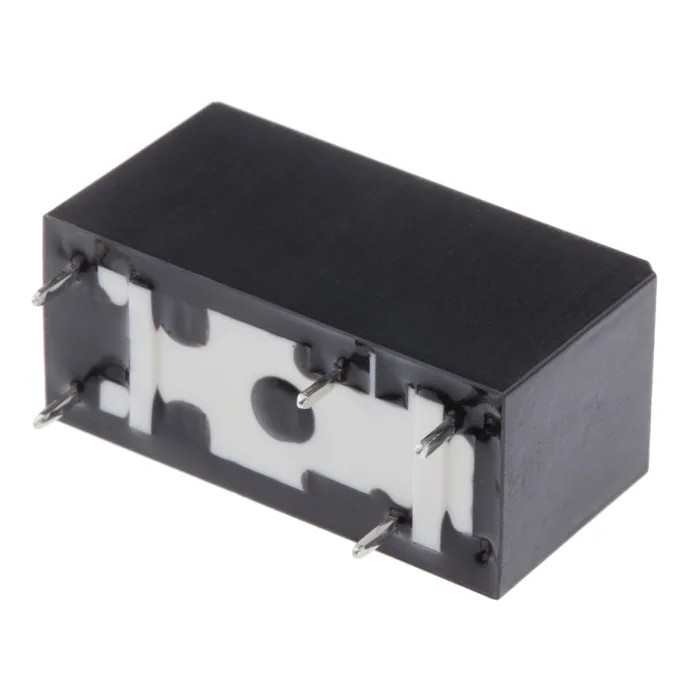

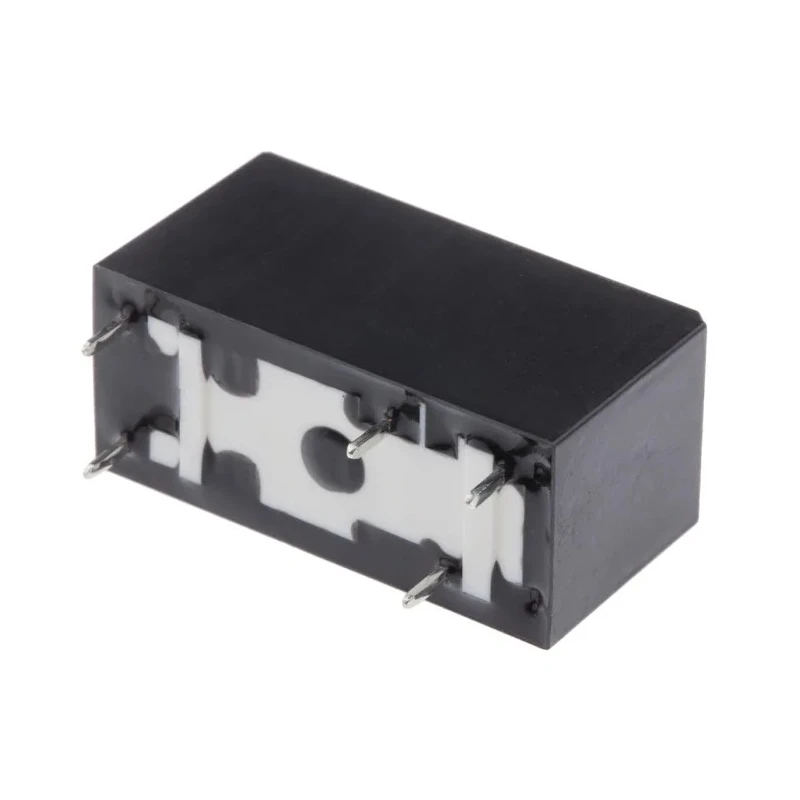

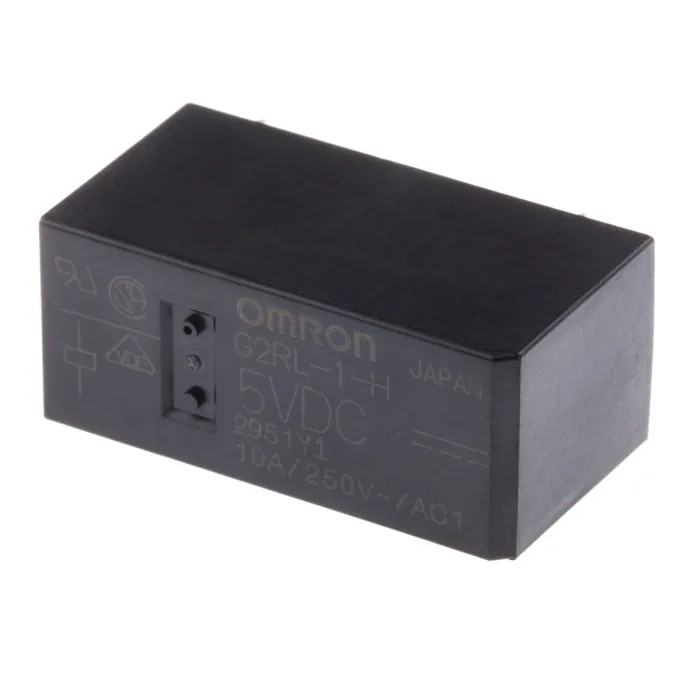

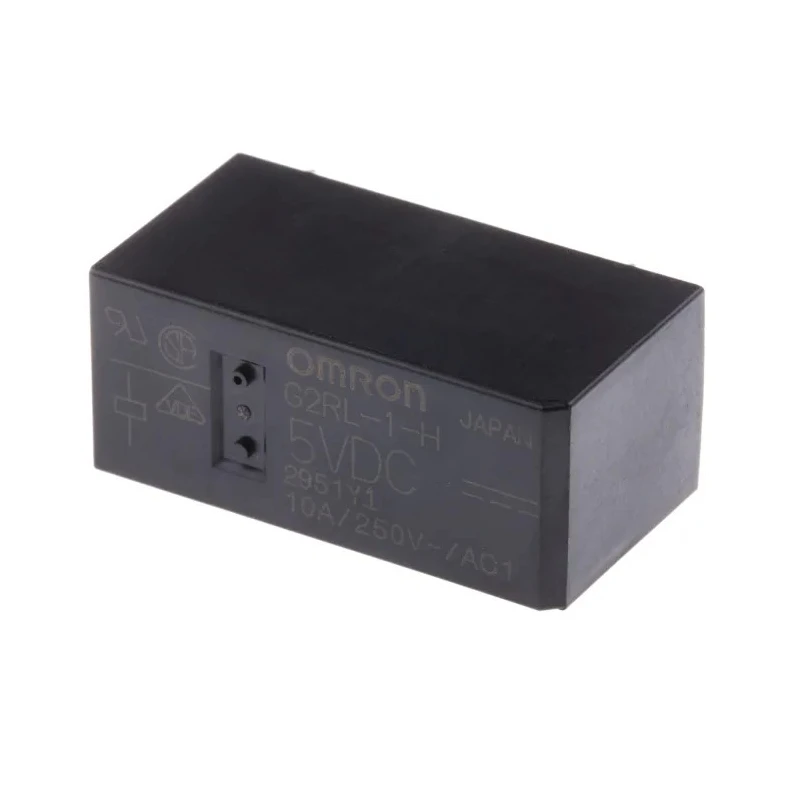

Omron Power Relay PCB Mount SPDT 5V DC Coil 12A Switching Current G2RL-1-H DC5

Omron G2RL-1-H DC5 is a high performance power relay designed for PCB mounting, featuring a 5V DC coil and capable of handling switching currents up to 12A. It is equipped with a single-pole double-throw (SPDT) contact configuration, which provides versatile switching options for various electrical and industrial automation use cases.

This relay’s construction utilizes silver alloy contacts ensuring superior electrical conductivity and long-lasting reliability. Its compact design with dimensions 15.7mm (height) x 12.7mm (width) x 29mm (length) makes it suitable for tight PCB layouts. The relay operates efficiently with a coil power rating of 250mW and a coil resistance of 100 ohms.

Designed to meet stringent international standards including IEC/EN 60079-15, RoHS, and VDE, it ensures compliance with safety and environmental regulations. The relay’s high tracking resistance (CTI>250) contributes to its durability and electrical performance.

Operating temperature range from -40°C to 85°C allows the relay to withstand diverse and challenging environmental conditions common in industrial, manufacturing, HVAC systems, water treatment plants, and electrical control panels. Its solder-type terminals facilitate secure and vibration-resistant PCB connections.

This Omron G2RL-1-H DC5 power relay is an ideal component for use in automation control circuits, signal conditioning, and other power relay applications requiring reliable switching at up to 300V DC or 440V AC voltages. The device is engineered for enhancing production efficiency and long-term operational stability.

Features a single-pole double-throw (SPDT) contact configuration for versatile use. Operates with a 5V DC coil voltage ensuring efficient control. Capable of switching currents up to 12 amperes suitable for various industrial loads.

Complies with IEC/EN 60079-15, RoHS, and VDE standards guaranteeing safety and environmental compliance. Compact dimensions with a low profile of 15.7 mm height facilitating PCB mounting. Utilizes silver alloy contacts for enhanced conductivity and durability.

High tracking resistance with CTI greater than 250 minimizing degradation risks. Wide operating temperature range from -40°C to 85°C supports harsh environmental conditions. Equipped with solder terminal type and low coil power consumption of 250mW.

Ideal for electrical, industrial automation, and signal conditioning applications.

Select this Omron Power Relay to ensure dependable switching capability and compliance to industry standards, supported by broad application versatility in electronics and electrical automation projects. Explore related components on EnvMart for comprehensive circuit solutions.
