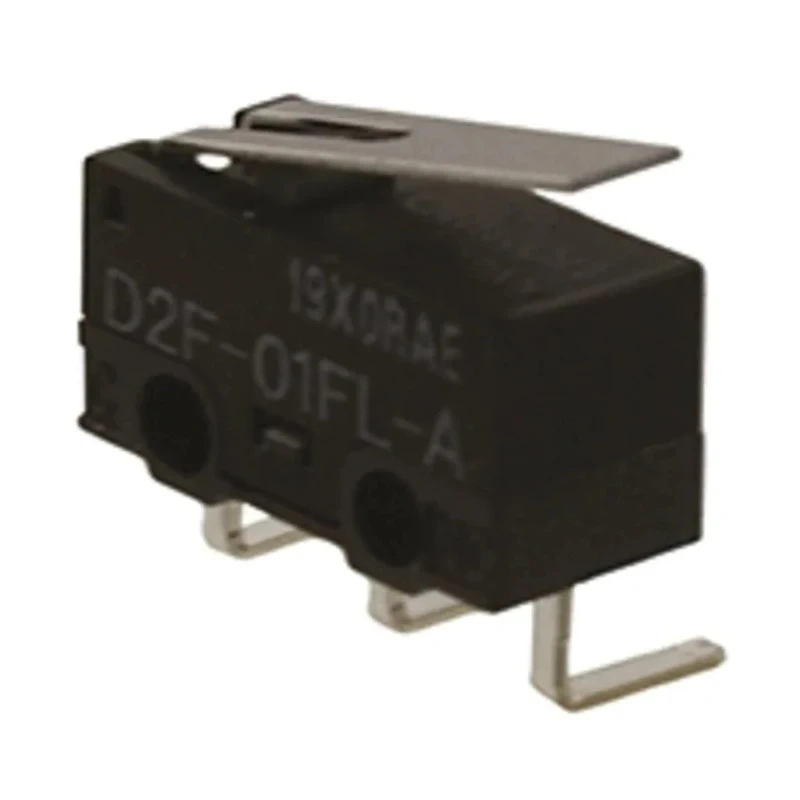

Omron Aratas Hinge Lever Micro Switch, Right Angle PCB Terminal, 100mA, SPDT Contact, IP40 Rated D2F-01FL-A

Free Delivery in India | Lowest Global Shipping Charges

Omron Aratas Hinge Lever Micro Switch, Right Angle PCB Terminal, 100mA, SPDT Contact, IP40 Rated D2F-01FL-A

Name: Omron Aratas Hinge Lever Micro Switch, Right Angle PCB Terminal, 100mA, SPDT Contact, IP40 Rated D2F-01FL-A
Brand: Omron
SKU: 425323
Price: 196.62 INR
Availability: InStock



Category Micro Switch Brand Omron Condition New

Specifications

Country of Origin	Japan
Brand	Omron
Model	D2F-01FL-A
IP Rating	IP40
Approvals	UL & CSA
Series	D2F
Maximum Operating Temperature	65°C
Contact Configuration	SPDT
Actuator Type	Hinge Lever
Contact Rating	3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts
Minimum Operating Temperature	-25°C
Terminal type	Right Angle PCB Terminal
Standards/Approvals	RoHS
Switch Contact Current	100mA
Operating Force	0.25N
Mechanical Life	1000000Operations
Microswitch Type	Ultra Subminiature

Key Features

Ultra subminiature microswitch ideal for precise switching applications.
Rated for 3A at 125Vac with silver contacts and 0.1A at 30Vdc with gold contacts.
Snap action design ensures reliable and rapid switching.
Operating force is 0.25N, suitable for sensitive actuation.
Temperature range from -25°C to 65°C for varied environments.
Mechanical life of up to 1,000,000 operations ensures durability.
Complies with RoHS and is UL & CSA approved for safety and quality.
Right angle PCB terminal facilitates compact PCB mounting.

Product Description

Omron D2F-01FL-A hinge lever micro switch is an ultra subminiature device designed for use in home appliances, audio equipment, and communications devices requiring precise, reliable switching.

The switch features a right angle PCB terminal for efficient circuit board integration and a hinge lever actuator providing sensitive and accurate actuation with an operating force of 0.25N. Its SPDT contact configuration allows flexible switching setups with rated currents of 3A at 125Vac using silver contacts and 0.1A at 30Vdc when gold contacts are used.

With protection rating IP40, this micro switch safeguards internals against solid foreign objects, suitable for indoor use. The device operates reliably within a temperature range from -25°C to 65°C and offers a mechanical lifespan of 1,000,000 operations, ensuring long-term performance in industrial, automation, and electrical applications.

The D2F-01FL-A complies with RoHS standards and has UL and CSA certifications, confirming its compliance with international safety and environmental regulations. Its compact ultra subminiature form factor makes it ideal for space-constrained electronic devices and control panels.

Manufactured in Japan, this micro switch guarantees consistent quality and precision engineering for industrial, laboratory, and commercial uses alike. Ultra subminiature microswitch ideal for precise switching. Rated 3A @125Vac (silver contacts) and 0.1A @ 30Vdc (gold contacts).

Snap action for rapid and dependable switching. Operating force 0.25N ensures sensitive actuation. Operating temperature range -25°C to 65°C. Mechanical life rated at 1,000,000 operations. Conforms to RoHS, UL, and CSA standards.

Right angle PCB terminal for compact PCB mounting. Manufactured in Japan with high-quality standards.
