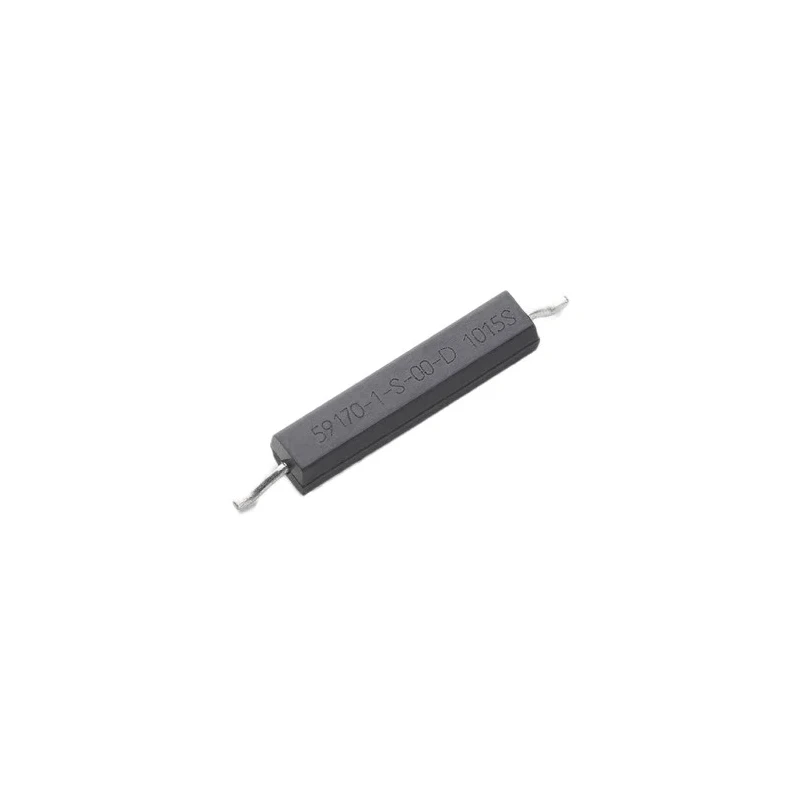

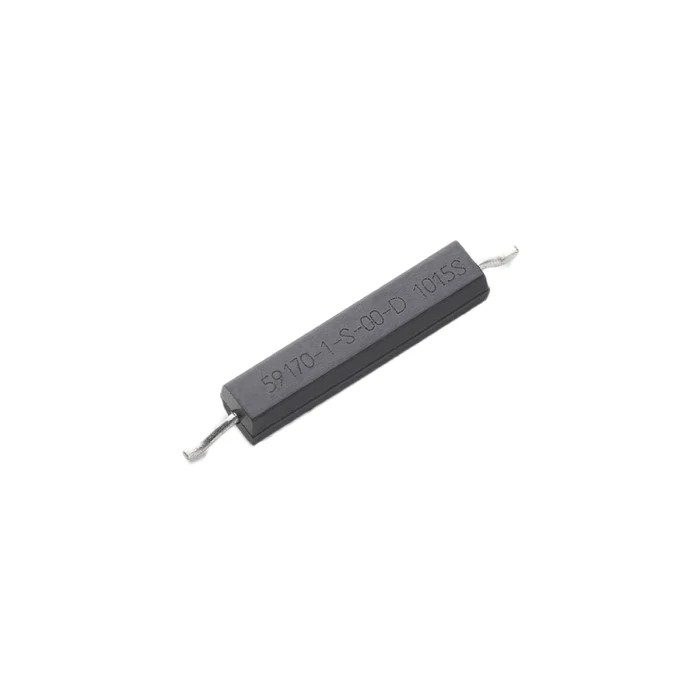

Littelfuse PCB Miniature Reed Switch 500 mA 200 V 59170-1-S-00-D

Free Delivery in India | Lowest Global Shipping Charges

Littelfuse PCB Miniature Reed Switch 500 mA 200 V 59170-1-S-00-D

Name: Littelfuse PCB Miniature Reed Switch 500 mA 200 V 59170-1-S-00-D
Brand: LITTELFUSE
SKU: 412217
Price: 101.18 INR
Availability: InStock



Category Reed Switch Brand LITTELFUSE Condition New

Specifications

Country of Origin	India
Brand	Littelfuse
Operating Temperature Range	-40°C to +105°C
Length	11.43mm
Model	59170-1-S-00-D
Width	2.29mm
Mount Type	PCB
Series	59165
Maximum Switching Current	500mA
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Terminal type	Gull Wing
Contact Resistance	0.1Ω
Maximum Switching Power	10W
Standards/Approvals	UR
Maximum Switching Voltage	200V
Maximum Release Time	10ms
Operating Time Including Bounce	10ms
AT Value Range	10 to 15 AT
Littelfuse PCB Miniature Reed Switch 500 mA 200 VBrand	Littelfuse

Key Features

This reed switch features a maximum switching power of 10 watts.
It has a low contact resistance of 0.1 ohms for efficient conduction.
The maximum release time is 10 milliseconds, ensuring fast response.
Terminal type is gull wing, suitable for PCB mounting.
Operating temperature range from -40°C to 105°C enables use in various environmental conditions.
Compact dimensions with length 11.43 mm and width 2.29 mm allow space-efficient PCB designs.
Hermetically sealed construction offers high resilience to contamination.
Magnetically operated contacts provide reliable performance without power consumption in standby.

Product Description

Littelfuse 59170-1-S-00-D is a PCB miniature reed switch designed for low power applications with a maximum switching current of 500 mA and a maximum switching voltage of 200 V. This miniature over-moulded reed switch utilizes magnetically operated contacts that require no power consumption in standby, providing reliable operation through non-ferrous materials such as wood, plastic, and aluminium.

The device is hermetically sealed, making it highly resistant to contamination and suitable for long-term use beyond the capabilities of optical and other reed switch technologies. Its gull wing terminal type is PCB compatible and supports solder reflow processes.

Operating temperature ranges from -40°C to +105°C, making it suitable for various industrial, electrical, automation, and commercial applications including position and limit sensing, security system switching, and door switches.

Key features include low contact resistance of 0.1 ohms, fast release time of 10 ms, and a compact form factor with dimensions of 11.43 mm length and 2.29 mm width. It meets UR standards and belongs to the 59165 series by Littelfuse.

This Reed Switch offers durable and reliable magnetic proximity switching. The thermoset over-moulded material ensures robust protection and environmental resistance. Ideal for integration into control, security, and automation systems.

Designed for professional electronic assembly with a focus on PCB mounting. Ensures energy efficiency by eliminating power consumption in idle state. Explore more Littelfuse switches and electronic components in the Electronics & Electricals category on EnvMart for your industrial and commercial project needs.
