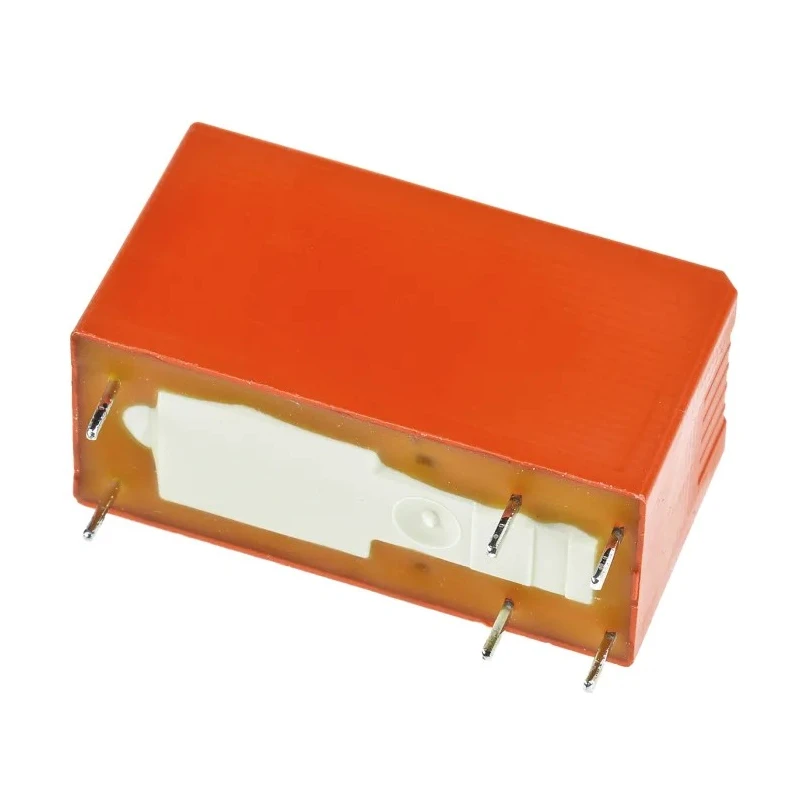

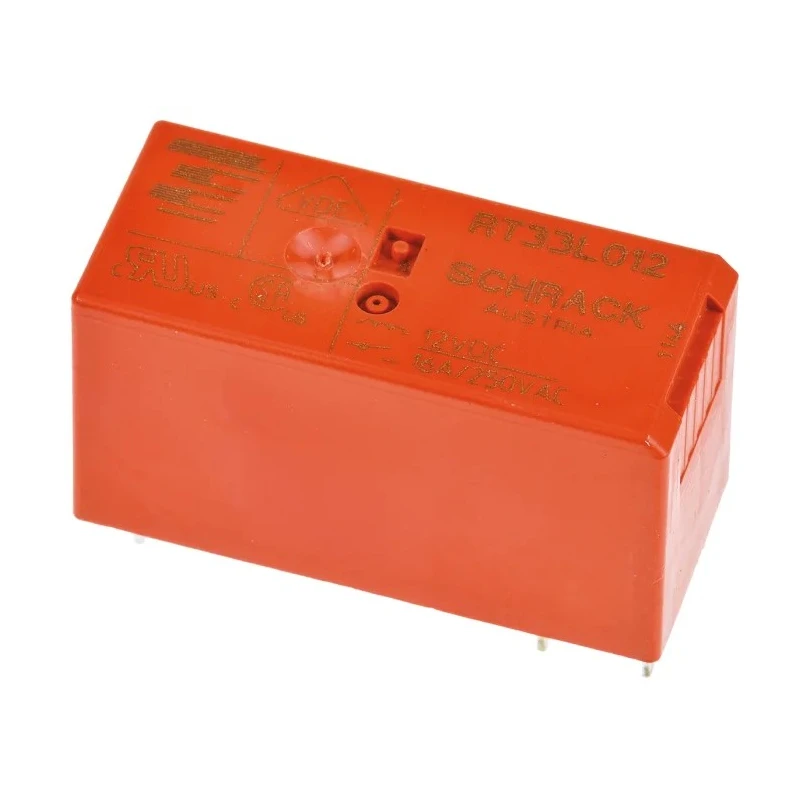

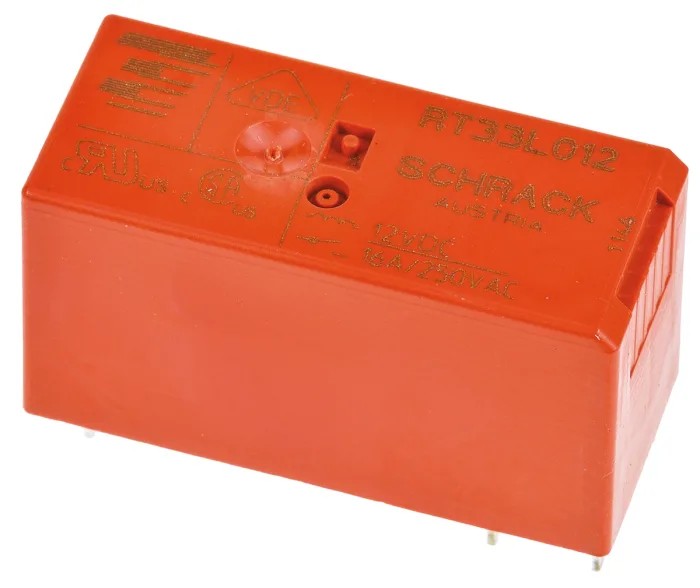

TE Connectivity Power Relay PCB Mount SPST 12V DC Coil 16A Switching Current RT33L012
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT33L012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- SPST contact configuration for single-pole, single-throw operation.
- PCB mount type with solder terminal connectivity.
- High inrush RT1 series designed for robust switching applications.
- Operating temperature range from -40°C to 85°C ensuring durability.
- Silver alloy contacts providing excellent conductivity and longevity.
- Complies with IEC 60335-1, RoHS, and VDE standards for safety and quality.
- Compact dimensions with 29mm length, 12.7mm width, and 15.7mm height.
- Coil resistance of 360Ω and low coil power consumption of 250mW.
Product Description
TE Connectivity RT33L012 Power Relay PCB Mount is engineered for high performance and reliability in electronic switching applications. It features a 12V DC coil voltage and supports a switching current of 16A, making it suitable for lighting systems, movement sensors, filament and incandescent lamp loads, and motor controls.
This SPST (Single Pole Single Throw) relay is designed for PCB mounting with solder terminals, ensuring secure electrical connections. Its compact size with dimensions 29mm (length) x 12.7mm (width) x 15.7mm (height) allows for versatile PCB integration.
The relay is part of the RT1 series offering high inrush capacity and bistable operation, ideal for applications requiring reinforced insulation with a creepage and clearance distance of 10mm. It operates efficiently within a temperature range of -40°C to 85°C and consumes a low coil power of 250mW.
Its silver alloy contacts guarantee excellent conductivity and durability under electrical load, rated for a switching AC voltage up to 400V AC and making and breaking capacities compliant with IEC 60669-1. The coil resistance is optimized at 360 ohms for stable operation.
Certified with IEC 60335-1, RoHS, and VDE approvals, this relay meets international safety and environmental standards. SPST contact configuration for single-pole switching. PCB mount type with solder terminals for reliable installation.
High switching current capacity of 16A at 250V AC. Wide operational temperature range suitable for harsh environments. Low coil power consumption enhances energy efficiency. Compact and robust design for space-saving installations.
Silver alloy contacts for superior electrical performance. Compliant with global standards including IEC, RoHS, and VDE.
This product is ideal for industrial, automation, and electronic manufacturing sectors requiring dependable relay switches on printed circuit boards. Explore more Power Relays from TE Connectivity in EnvMart for advanced electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a switching current of 16A, making it suitable for various applications including lighting systems and motor controls.
This model operates with a coil voltage of 12V DC, ensuring compatibility with standard low-voltage applications.
The relay has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, allowing for versatile PCB integration.
It operates efficiently within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
This model features an SPST (Single Pole Single Throw) contact configuration for single-pole switching applications.
The coil resistance is optimized at 360Ω, which contributes to stable operation.
The contacts are made of silver alloy, which provides excellent conductivity and longevity under electrical load.
It complies with IEC 60335-1, RoHS, and VDE standards, ensuring safety and quality in its applications.
The relay can handle a maximum switching AC voltage of 400V AC, making it suitable for various electrical applications.
It features solder terminals, ensuring secure electrical connections during installation.
This relay is suitable for applications such as lighting systems, movement sensors, and motor controls, among others.
