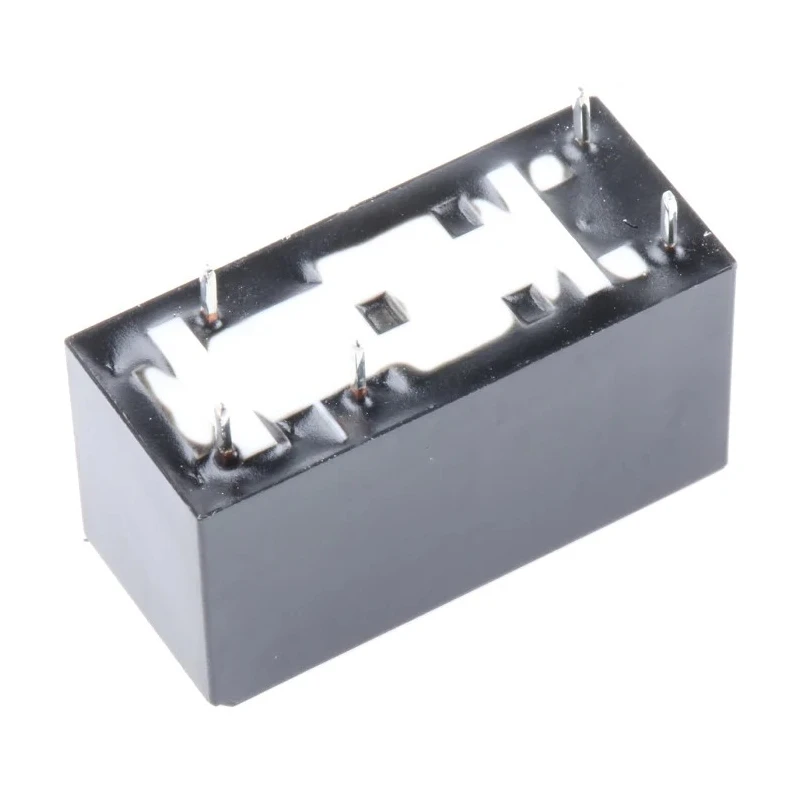

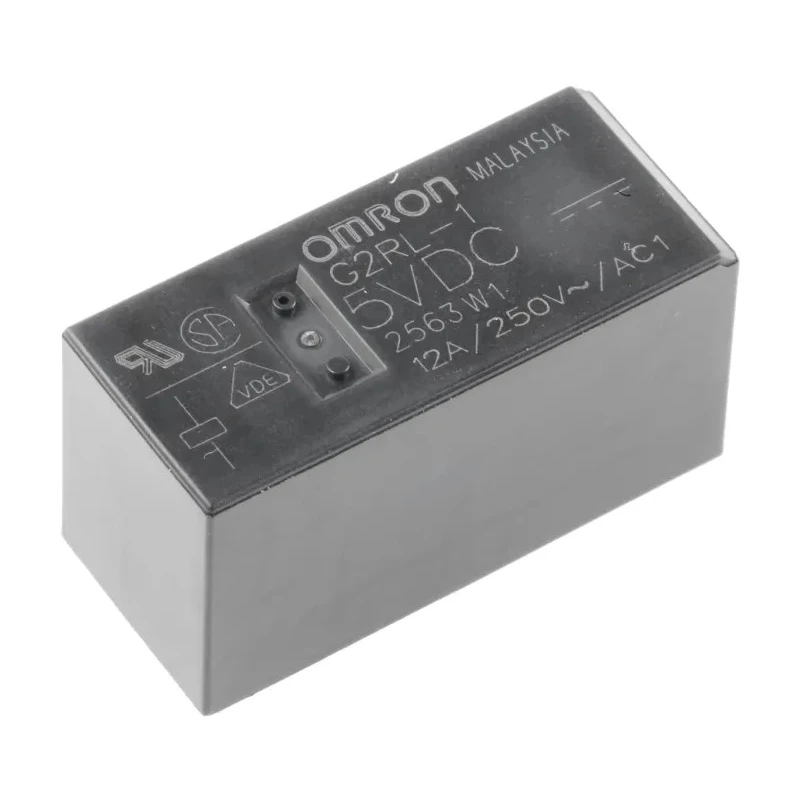

Omron PCB Power Relay 5V DC Coil 16A Switching Current SPDT G2RL-1 DC5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G2RL-1 DC5 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | CE, EN, IEC, RoHS, UL |
| Coil Resistance | 62.5Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- The relay has a coil resistance of 62.5Ω ensuring reliable operation.
- It supports switching AC voltage up to 400V AC with a maximum switching power of 3kVA.
- Compact dimensions with a height of 15.7mm, width of 12.7mm, and length of 29mm.
- Operates within a temperature range of -40°C to 85°C for versatile applications.
- Equipped with silver alloy contacts offering excellent conductivity and durability.
- Terminal type is solder mount designed for PCB installation.
- Compliant with CE, EN, IEC, RoHS, and UL standards ensuring quality and safety.
- The relay features CTI tracking resistance greater than 250 for enhanced insulation performance.
Product Description
Omron G2RL-1 DC5 PCB Power Relay is engineered for efficient power switching with a coil voltage of 5V DC and a switching current rating of 16A. This SPDT relay is designed specifically for PCB mounting offering solder type terminals for integration into electronic assemblies.
The device operates reliably within a temperature range of -40°C to 85°C making it ideal for industrial, automation, and electrical control applications. Its compact low-profile dimensions (15.7mm height, 12.7mm width, 29mm length) allow for space-saving installation.
The relay's silver alloy contacts provide excellent electrical conductivity and durability, supporting AC switching voltages up to 400V AC and switching power up to 3kVA. Coil resistance of 62.5Ω ensures stable coil performance consuming 400mW of coil power.
This G2RL series relay meets stringent international standards including CE, EN, IEC, RoHS, and UL certifications, ensuring compliance and reliability in various industrial setups. The high tracking resistance (CTI > 250) enhances insulation robustness and overall safety during operation.
Commonly used in electrical automation systems, motor controls, HVAC, manufacturing equipment, and power management circuits, this relay offers dependable performance in demanding environments. Its precise switching and compact design make it a versatile choice for PCB power relay applications.
The relay has a coil resistance of 62.5Ω ensuring reliable operation. It supports switching AC voltage up to 400V AC with a maximum switching power of 3kVA. Compact dimensions with a height of 15.7mm, width of 12.7mm, and length of 29mm.
Operates within a temperature range of -40°C to 85°C for versatile applications. Equipped with silver alloy contacts offering excellent conductivity and durability. Terminal type is solder mount designed for PCB installation.
Compliant with CE, EN, IEC, RoHS, and UL standards ensuring quality and safety. The relay features CTI tracking resistance greater than 250 for enhanced insulation performance. Explore the full range of Power Relays and electrical components at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 5V DC.
It has a maximum switching current rating of 16A.
The relay has compact dimensions: height of 15.7mm, width of 12.7mm, and length of 29mm.
This model features a Single Pole Double Throw (SPDT) contact configuration.
It supports switching AC voltage up to 400V AC.
The relay has a coil resistance of 62.5Ω.
It operates within a temperature range of -40°C to 85°C.
The contacts are made of silver alloy, providing excellent conductivity.
It features solder type terminals designed for PCB mounting.
It is compliant with CE, EN, IEC, RoHS, and UL standards.
The maximum switching power is 3kVA.
The coil power consumption is 400mW.
