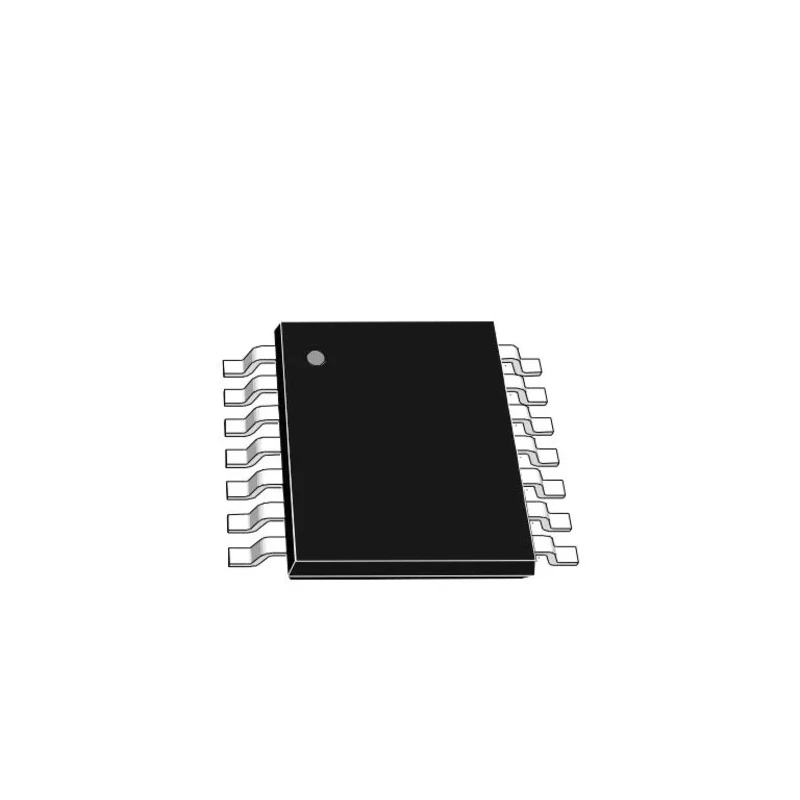

STMicroelectronics Operational Amplifier 6 MHz Gain Bandwidth, 14-Pin TSSOP, 2.7-36 V Supply TSB514IPT

STMicroelectronics TSB514IPT operational amplifier is a versatile semiconductor device designed for precision signal amplification in industrial, automotive, and electronic equipment applications. With a gain bandwidth product of 6 MHz and rail-to-rail input and output capability, this quad-channel amplifier supports supply voltages from 2.7 V up to 36 V, making it suitable for battery-powered and high-voltage systems.

This device features very low input offset voltage of ±1.5 mV maximum, low input bias current of 0 nA, and a slew rate of 3 V/µs for responsive and accurate analog signal processing. The integrated EMI filter and 2 kV Human Body Model ESD tolerance safeguard the amplifier from common electrical disturbances and electrostatic discharges, ensuring reliability in noisy environments.

Compliant with automotive quality standards AEC-Q100 and AEC-Q3, the TSB514IPT is ideal for automotive electronics requiring stringent durability and quality assurance. Its compact 14-pin TSSOP package, measuring 5.1 mm in length, 4.5 mm in width, and 1.2 mm in height, facilitates efficient PCB space utilization.

Key features include rail-to-rail inputs and outputs, wide supply voltage range, high slew rate, and low noise performance of 12 nV/√Hz, supporting sensitive sensor interfaces and precision instrumentation.

Rail-to-rail input and output allow maximizing the input and output signal range. Wide supply voltage range from 2.7 V to 36 V enables versatile application design. Gain bandwidth product of 6 MHz supports high-speed signal amplification.

Low input offset voltage and current enhance signal accuracy. Integrated EMI filter provides noise immunity in challenging operational environments. Robust ESD protection rated at 2 kV Human Body Model. Automotive certifications AEC-Q100 and AEC-Q3 ensure reliability for automotive uses.

Compact TSSOP package supports high-density PCB layouts.

This operational amplifier is ideally suited for applications in industrial control systems, automotive sensor interfaces, instrumentation, power management units, and general-purpose analog circuit design. Its performance characteristics ensure precise, stable operation under a range of temperature and voltage conditions.
