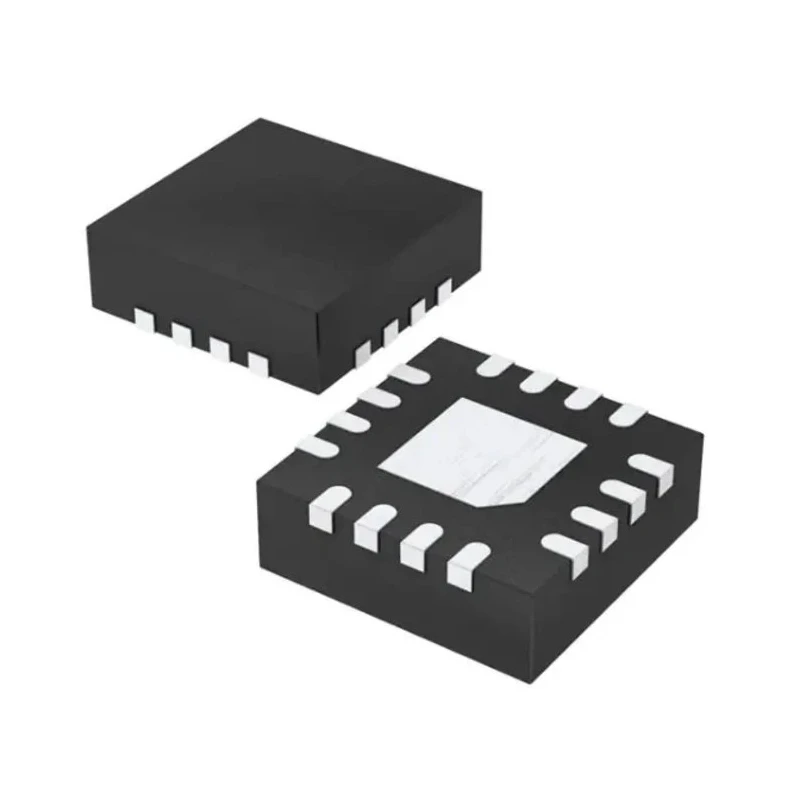

STMicroelectronics Operational Amplifier 1.3 MHz 16-Pin 30V QFN-16 LM224QT

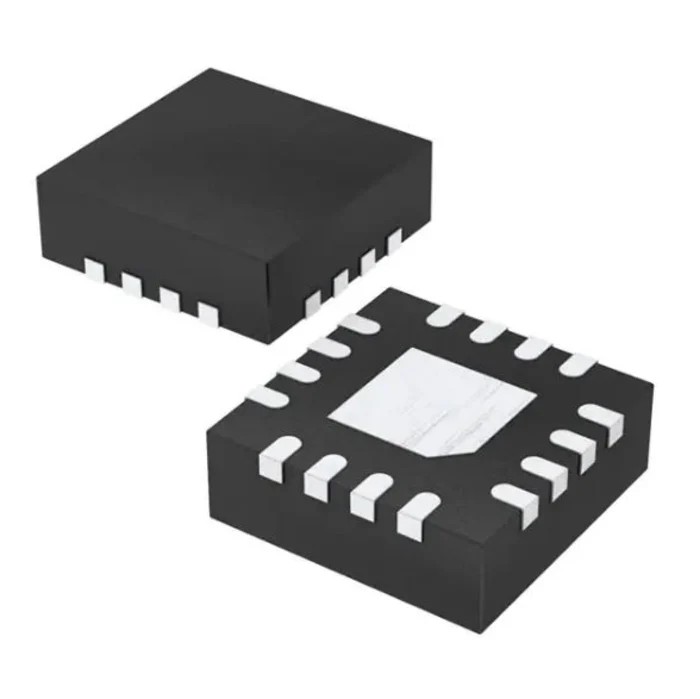

The STMicroelectronics LM224QT is a high-performance operational amplifier designed for demanding industrial and electronic applications. It integrates four high gain op-amps with internal frequency compensation in a compact QFN-16 surface mount package measuring 3.1 mm in length and width, and 1 mm in height. This device operates from a broad single supply voltage range of 3 V to 30 V, making it versatile for various power configurations.

The amplifier features a gain bandwidth product of 1.3 MHz and a slew rate of 0.4 V/μs, supporting stable and precise analog signal amplification. It maintains a low input bias current of 20 nA and minimal input offset voltage of 5 mV, which is critical for high fidelity analog circuit designs. Additionally, the device outputs up to 40 mA, suitable for driving loads directly in most applications.

With operating temperature limits from -40°C to 105°C, the LM224QT is suitable for harsh and industrial environments. Its RoHS compliance ensures it meets current environmental and safety standards.

This Operational Amplifier is ideal for applications in industrial instrumentation, audio equipment, data acquisition systems, and power management circuits. Its surface mount QFN-16 packaging supports efficient PCB layout and automated manufacturing processes.

Four independent high gain op-amps internal compensated. Wide voltage range: 3 V to 30 V single supply. Low input bias current and input offset voltage enhance precision. Compact QFN-16 package for surface mount technology.

40 mA output current capacity. Robust operation over -40°C to 105°C. RoHS compliant device. Browse the Electronics & Electricals category at EnvMart for more semiconductor and amplifier components from top brands like STMicroelectronics.
