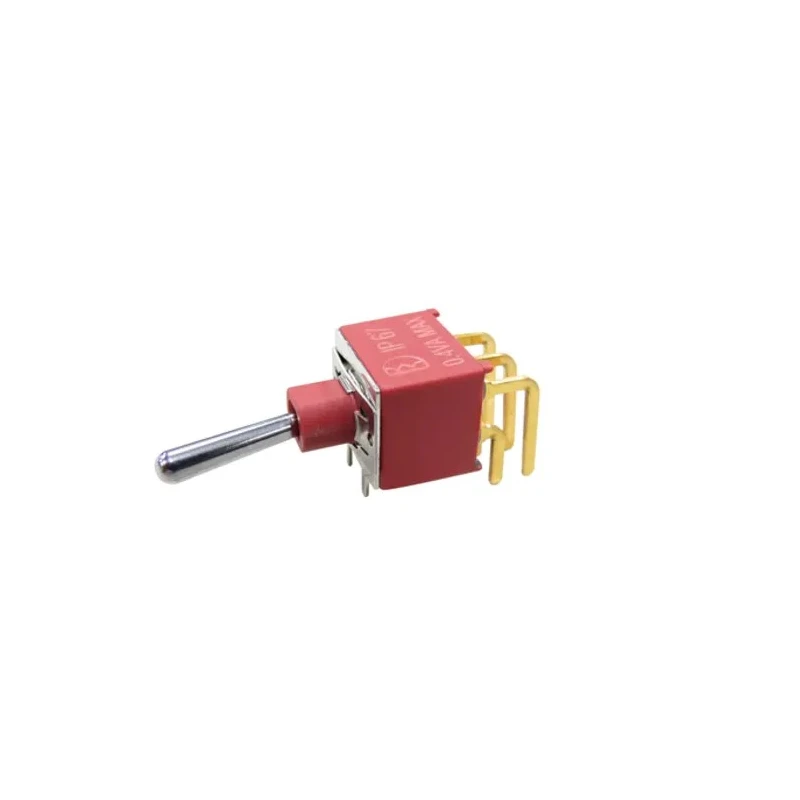

RS PRO Toggle Switch Through Hole Mount On-None-On SPDT 5A Contact Current Chrome Plated Brass Actuator 209-9344

Name: RS PRO Toggle Switch Through Hole Mount On-None-On SPDT 5A Contact Current Chrome Plated Brass Actuator 209-9344
Brand: RS PRO
SKU: 422458
Price: 402.98 INR
Availability: InStock



Category Toggle Switch Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Length	12.7mm
Model	209-9344
IP Rating	IP67
Width	6.6mm
Mount Type	Through Hole
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	On-None-On
Minimum Operating Temperature	-40°C
Terminal type	Through Hole
Standards/Approvals	RoHS 2011/65/EU & 2015/863
Switch Operation	On-None-On
Switch Contact Current	5A
Actuator Material	Chrome Plated Brass

Key Features

This toggle switch features a sealed miniature design with an IP67 waterproof rating.
It operates with a Single Pole Double Throw (SPDT) configuration and On-None-On switch operation.
The switch has a contact current rating of 5A and a robust chrome plated brass actuator.
Designed to operate reliably in temperature ranges from -40°C to 85°C.
Complies with RoHS 2011/65/EU and 2015/863 standards for environmental safety.
Offers a mechanical life of 30,000 make-and-break cycles ensuring long-term durability.
Useful in telecommunications, networking equipment, industrial controls, medical devices, and marine control panels.

Product Description

RS PRO 209-9344 Toggle Switch is a high-quality sealed miniature toggle switch designed for precise control of electrical circuits. Featuring a Single Pole Double Throw (SPDT) switch configuration with On-None-On operation, it ensures flexible switching options in electrical and industrial environments.

This through hole mount switch is constructed with a durable chrome plated brass actuator and three copper alloy terminals with gold plating, providing exceptional reliability and corrosion resistance. The switch offers a contact current rating of 5A capable of handling demanding electrical loads.

Engineered with a waterproof sealant and compliant with IP67 rating, the toggle switch maintains its performance in harsh environments, preventing dust and moisture ingress during soldering and operation. Its operational temperature range spans from -40°C to 85°C, making it ideal for use in diverse industrial, telecommunications, and commercial applications.

The RS PRO 209-9344 toggle switch complies with RoHS 2011/65/EU & 2015/863 standards, affirming its environmentally friendly design. It boasts a mechanical life of 30,000 cycles, delivering reliable operation over extended usage periods.

This switch is widely applicable in controlling circuits for telecommunications equipment, wireless network cards, industrial controllers such as joysticks or grips, medical devices including wheelchair motors, elevator controls, boat and marine panels, as well as catering industry equipment and test instrumentation.

Sealed miniature Toggle Switch with IP67 waterproof rating. Single Pole Double Throw (SPDT) with On-None-On operation. Rated for 5A contact current with chrome plated brass actuator. Operational across -40°C to 85°C temperature range.

Compliant with RoHS environmental standards. Long mechanical life of 30,000 make-and-break cycles. Suitable for industrial, telecommunications, medical, marine, and commercial applications. Explore our extensive selection of electrical switches at EnvMart for professional industrial and commercial needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The toggle switch has a contact current rating of 5A, allowing it to handle demanding electrical loads.

This model has an IP67 waterproof rating, ensuring protection against dust and moisture ingress during operation.

It operates effectively within a temperature range of -40°C to 85°C, making it suitable for various environments.

The switch features a Single Pole Double Throw (SPDT) configuration with an On-None-On operation, providing flexible switching options.

The actuator is made of chrome plated brass, contributing to its reliability and corrosion resistance.

It boasts a mechanical life of 30,000 make-and-break cycles, ensuring reliable operation over extended usage periods.

The switch measures 12.7mm in length and 6.6mm in width, making it suitable for through hole mounting applications.

It complies with RoHS 2011/65/EU and 2015/863 standards, affirming its environmentally friendly design.

This model uses a through hole mount type, designed for easy installation in various applications.

It is suitable for use in telecommunications, industrial controls, medical devices, and marine control panels, among others.

It features through hole terminals, which are designed for secure connections in electrical circuits.

The SPDT configuration allows for flexible control of electrical circuits, enabling the switch to connect to two different circuits at different times.
