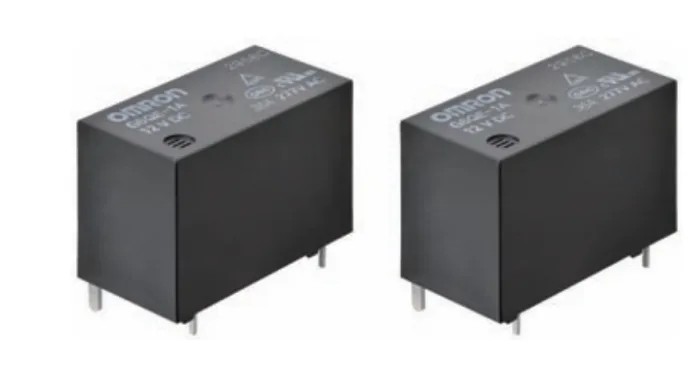

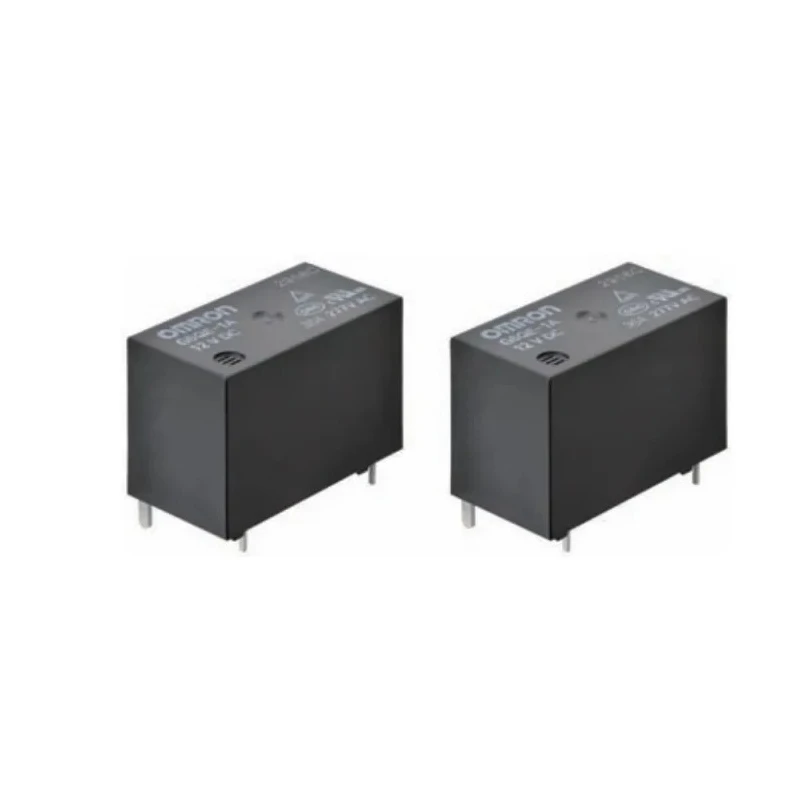

Omron PCB Power Relay, 12V dc Coil, 36A Switching Current, SPST G6QE-1A DC12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 20.5mm |
| Length | 30.5mm |
| Model | G6QE-1A DC12 |
| Width | 16mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6QE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 36A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 102.9Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 1.4W |
Key Features
- Miniature low height power relay for compact PCB installations.
- High switching current with 36A capacity at 250 VAC for robust performance.
- Long operational life with up to 10,000 operations at 36A and 100,000 at 30A.
- Coil power consumption optimized to 1.4W for energy efficiency.
- Coil resistance precisely specified at 102.9Ω.
- Contact material of silver alloy ensures durability and low resistance.
- Wide operating temperature range from -40°C to 85°C for harsh environments.
- Impulse withstand voltage rating of 10 kV for high reliability.
Product Description
Omron G6QE-1A DC12 PCB Power Relay is engineered for industrial and automation applications requiring a reliable single-pole single-throw (SPST) switching device with a 12V dc coil. It is suitable for PCB mount with compact dimensions and high switching current handling capacity of 36A at 250 VAC. The relay's silver alloy contact material ensures excellent conductivity and extended durability.
This miniature relay provides a long operational life, supporting 10,000 operations at full load and up to 100,000 operations at reduced load, making it ideal for repetitive switching tasks in control circuits. Its coil power consumption is reduced to 1.4W, enhancing energy efficiency while maintaining high performance.
The device is designed to withstand a wide ambient temperature range from -40°C to 85°C, suitable for demanding industrial environments. Its impulse withstand voltage rating of 10 kV between coil and contacts enhances the relay's protection against voltage spikes and electrical noise.
The relay mounts easily with PCB pins and occupies minimal space with dimensions of 30.5mm length, 16mm width, and 20.5mm height. It complies with RoHS standards, ensuring it meets international environmental safety requirements.
Typical applications include industrial control systems, automation equipment, and power switching in electrical machinery. This reliable relay supports high-current switching needs while maintaining miniature form factor portability.
Miniature low height power relay for compact PCB installations. High switching current with 36A capacity at 250 VAC for robust performance. Long operational life with up to 10,000 operations at 36A and 100,000 at 30A. Coil power consumption optimized to 1.4W for energy efficiency.
Coil resistance precisely specified at 102.9Ω. Contact material of silver alloy ensures durability and low resistance. Wide operating temperature range from -40°C to 85°C for harsh environments. Impulse withstand voltage rating of 10 kV for high reliability.
Compact dimensions: Length 30.5mm, Width 16mm, Height 20.5mm. RoHS compliant ensuring environmental safety standards. Explore other Power Relays by Omron for diverse industrial, manufacturing, and automation needs supported by quality and certified components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a high switching current capacity of 36A at 250 VAC, making it suitable for robust performance in various applications.
The relay measures 30.5mm in length, 16mm in width, and 20.5mm in height, allowing for compact PCB installations.
The coil voltage for this model is 12V DC, which is essential for its operation in various control circuits.
It operates within a wide temperature range from -40°C to 85°C, making it suitable for harsh environments.
This relay features a single-pole single-throw (SPST) contact configuration, ideal for simple switching applications.
The coil power consumption is optimized to 1.4W, enhancing energy efficiency during operation.
The contacts are made of silver alloy, which ensures good conductivity and durability.
It can support up to 10,000 operations at full load (36A) and up to 100,000 operations at a reduced load (30A).
The relay has an impulse withstand voltage rating of 10 kV, providing high reliability against voltage spikes.
Yes, this relay complies with RoHS standards, ensuring it meets international environmental safety requirements.
The G6QE-1A DC12 relay is designed for PCB mounting, which allows for easy integration into various electronic circuits.
The contact resistance is specified at 100mΩ, contributing to its efficient performance in switching applications.
