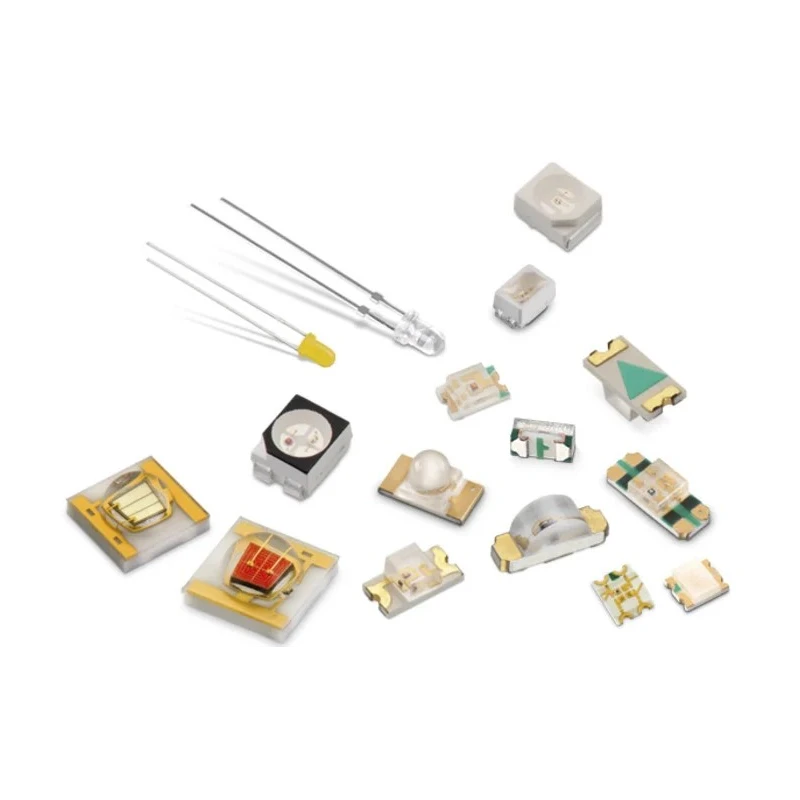

Wurth Elektronik 2.4 V RGB LED 1205 Surface Mount 3 LEDs rectangular clear lens WL-SFRW 156125M173000

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 2.4 V RGB LED 1205 Surface Mount 3 LEDs rectangular clear lens WL-SFRW 156125M173000

Name: Wurth Elektronik 2.4 V RGB LED 1205 Surface Mount 3 LEDs rectangular clear lens WL-SFRW 156125M173000
Brand: Wurth Elektronik
SKU: 420548
Price: 1 USD
Availability: InStock



Category LED Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Brand	Wurth Elektronik
Model	156125M173000
Packaging	Tape & Reel
Mount Type	Surface
Series	WL-SFRW
Number Of Leds	3
Maximum forward current	20mA
Viewing angle	120 °
Package Type	1205
Standards/Approvals	RoHS
LED Colour	RGB
Dominant Wavelength	470, 525, 624nm
Forward Voltage	2.4V
Number of Pins	4
Maximum Power Dissipation	48mW
Lens Dimensions	3.2 x 1.2 x 0.8 mm
Lens Shape	Rectangular

Key Features

The LED package uses 1205 surface mount technology for compact integration.
Contains 3 RGB LEDs enabling multi-color light output.
Maximum forward current is 20mA ensuring low power consumption.
Maximum power dissipation rated at 48mW for reliable operation.
Features a wide 120° viewing angle for broad light dispersion.
Compact lens dimensions of 3.2 x 1.2 x 0.8 mm for space-constrained boards.
Clear rectangular lens shape guarantees focused light emission.
Packaging via tape and reel supports automated assembly processes.

Product Description

Wurth Elektronik 156125M173000 is a high-performance RGB LED designed for surface mount applications. Operating at a forward voltage of 2.4 V, this 1205 package LED integrates three RGB LEDs in a compact rectangular clear lens, measuring 3.2 x 1.2 x 0.8 mm. The device supports a maximum forward current of 20 mA and power dissipation of 48 mW, ensuring efficient low-power operation.

The LED features a wide viewing angle of 120°, enabling broad illumination suitable for various electronic display and indicator applications. Its clear lens finish promotes bright, vivid light emission while maintaining low profile mounting. The device is delivered in tape and reel packaging, optimizing it for automatic placement machines and high-volume manufacturing environments.

Ideal for use as front panel indicators, LCD backlighting, keypad backlighting, symbol illumination, and switch button lighting, this LED meets RoHS environmental standards. The product is designed and manufactured in Taiwan, Province Of China, ensuring quality and reliability.

The LED package uses 1205 surface mount technology for compact integration. Contains 3 RGB LEDs enabling multi-color light output. Maximum forward current is 20mA ensuring low power consumption. Maximum power dissipation rated at 48mW for reliable operation.

Features a wide 120° viewing angle for broad light dispersion. Compact lens dimensions of 3.2 x 1.2 x 0.8 mm for space-constrained boards. Clear rectangular lens shape guarantees focused light emission. Packaging via tape and reel supports automated assembly processes.

Suitable for front panel indicators, LCD backlighting, keypad illumination, and switch button backlighting.

This Wurth Elektronik LED is a premium component for industrial, commercial, consumer electronics, and instrumentation applications, offering a balance of performance, size, and energy efficiency. Explore more LEDs and optoelectronic components in the Wurth Elektronik range for your next design.
