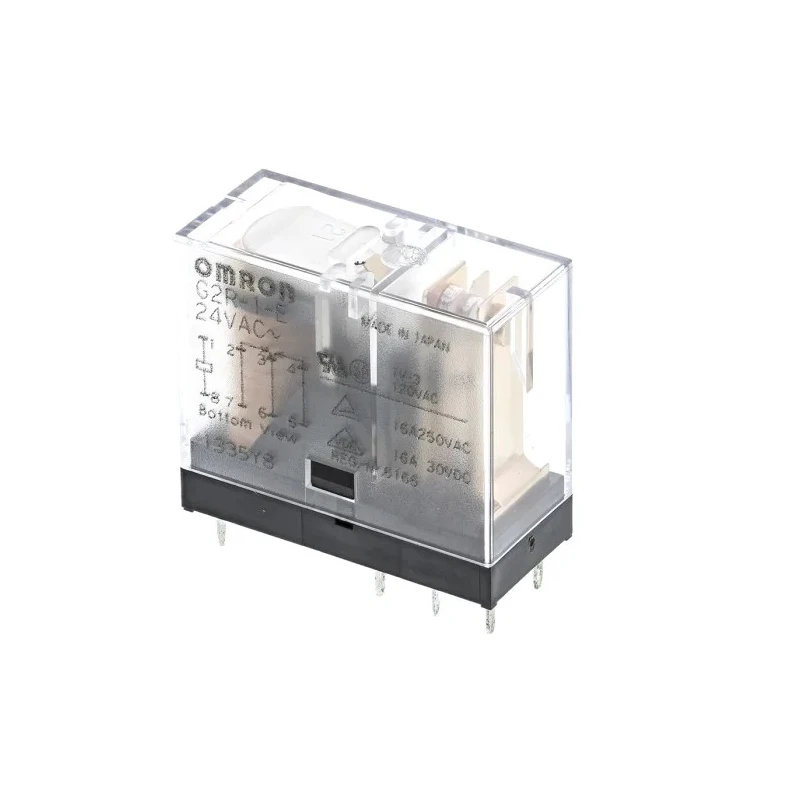

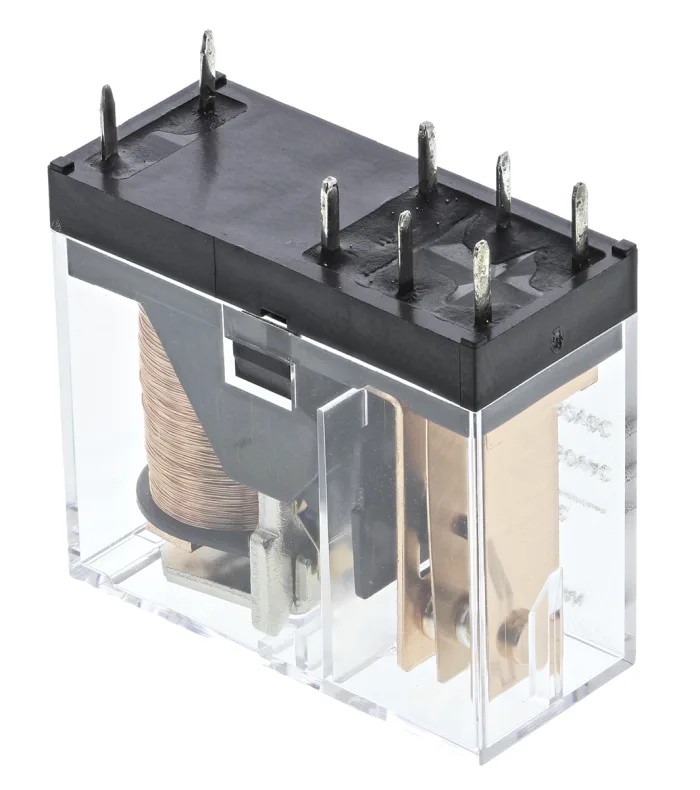

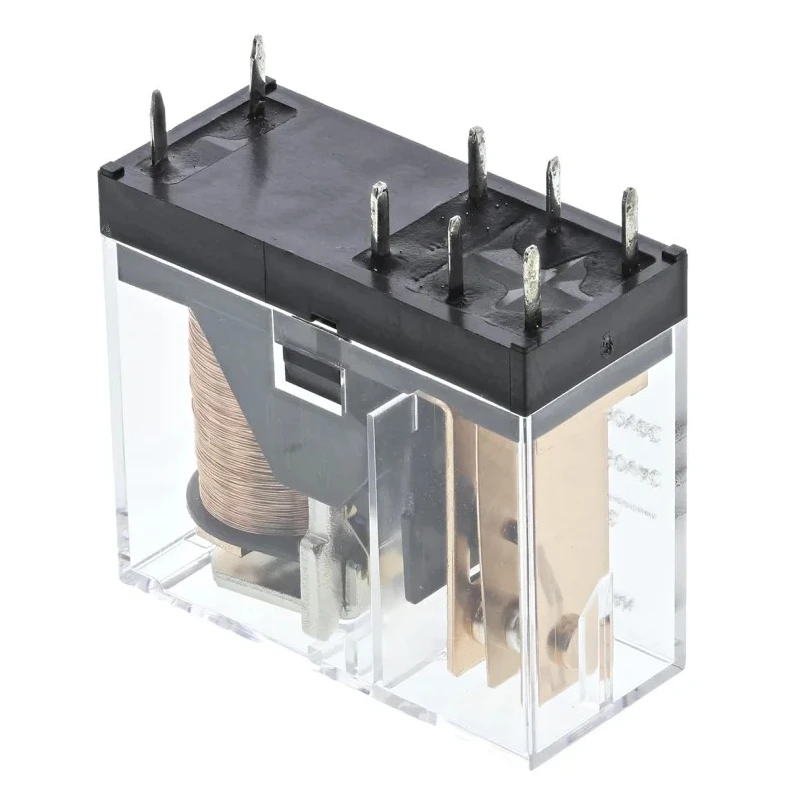

Omron PCB Power Relay 24V AC Coil 16A Switching Current SPDT G2R-1-E AC24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 25.5mm |
| Length | 29mm |
| Model | G2R-1-E AC24 |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 260Ω |
| Coil Voltage | 24V ac |
Key Features
- Features SPDT contact configuration suitable for various switching needs.
- Compact PCB mount type with solder terminals for easy integration.
- Operates between -40°C and 70°C for durable performance in diverse environments.
- Coil resistance of 260 ohms and coil power consumption of 0.9 VA for efficient energy usage.
- Constructed with silver alloy contacts ensuring low contact resistance of 50 mΩ.
- Complies with RoHS standards ensuring environmental safety.
- Ideal for domestic and commercial PCB power relay applications requiring reliable switching.
Product Description
Omron G2R-1-E AC24 PCB Power Relay is a versatile and reliable power relay designed for various domestic and commercial applications. Equipped with a 24V AC coil voltage and a switching current capacity of 16A, this relay offers excellent performance in compact PCB-mounted configurations. The relay features a SPDT contact configuration suitable for diverse switching requirements.
It operates effectively within a wide temperature range from -40°C to 70°C, ensuring durable performance under harsh conditions. The coil resistance of 260 ohms and low coil power consumption of 0.9 VA contribute to efficient energy usage.

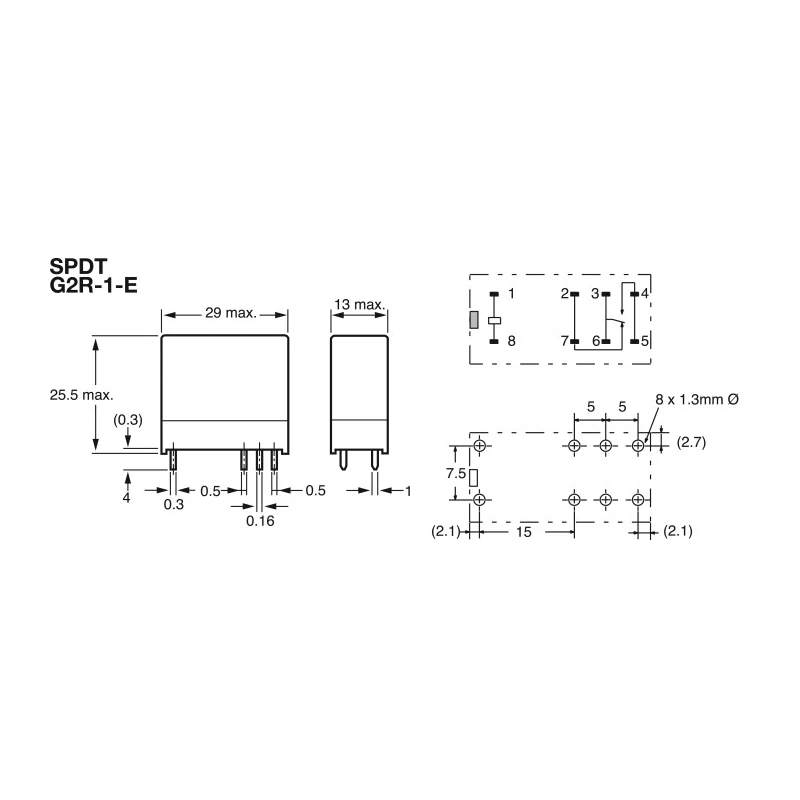

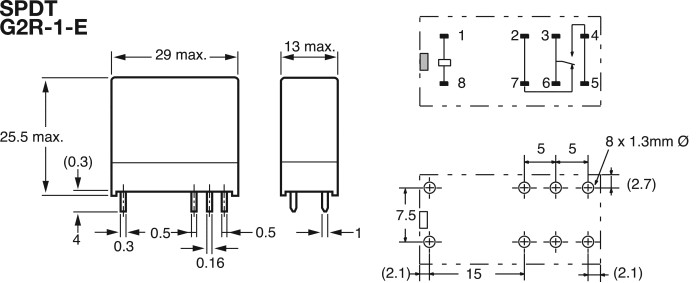

Constructed with high-quality silver alloy contacts, the device ensures minimal contact resistance of 50 mΩ for enhanced electrical connectivity. Physical dimensions measure 25.5 mm in height, 13 mm in width, and 29 mm in length, offering space-efficient integration on PCBs.
Compliant with RoHS environmental standards, the Omron G2R-1-E AC24 relay is both environmentally safe and reliable. Its robust design includes 8mm creepage and clearance distances to enhance electrical safety.
Features SPDT contact configuration suitable for various switching needs. Compact PCB mount type with solder terminals for easy integration. Operates between -40°C and 70°C for durable performance in diverse environments.
Coil resistance of 260 ohms and coil power consumption of 0.9 VA for efficient energy usage. Constructed with silver alloy contacts ensuring low contact resistance of 50 mΩ. Dimensions are 25.5 mm in height, 13 mm width, and 29 mm length enhancing compactness.
Complies with RoHS standards ensuring environmental safety. Ideal for domestic and commercial PCB power relay applications requiring reliable switching.
This relay is widely used in industrial, electrical, automation, manufacturing, and commercial equipment for switching control. Its reliable performance makes it suitable for varied industrial and laboratory environments.
Explore more Power Relay options and components at EnvMart for your electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 16A, making it suitable for various switching applications.
The relay operates with a coil voltage of 24V AC, which is essential for its activation.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching options.
The physical dimensions of the relay are 25.5 mm in height, 13 mm in width, and 29 mm in length, allowing for compact PCB mounting.
It operates effectively within a temperature range of -40°C to 70°C, ensuring reliable performance in various environments.
The coil resistance is 260 ohms, which contributes to its efficient energy usage.
The contacts are made of silver alloy, which helps in achieving a low contact resistance of 50 mΩ.
It features solder terminals, facilitating easy integration onto printed circuit boards (PCBs).
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
It is widely used in industrial, electrical, automation, manufacturing, and commercial equipment for switching control.
The coil power consumption is 0.9 VA, which indicates its efficiency in operation.
This relay belongs to the G2R series, which is known for its reliability in various applications.
