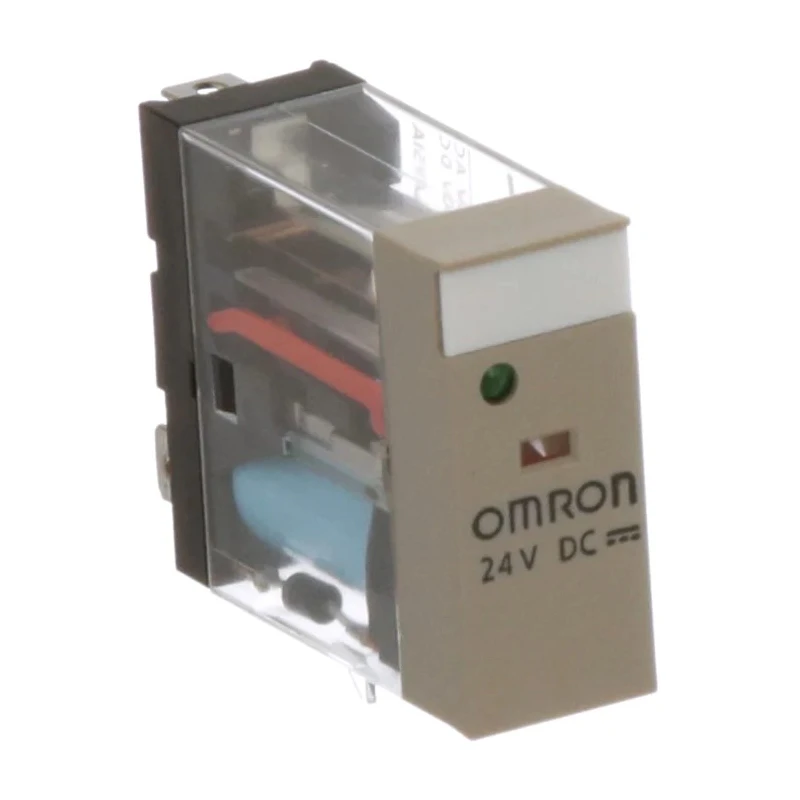

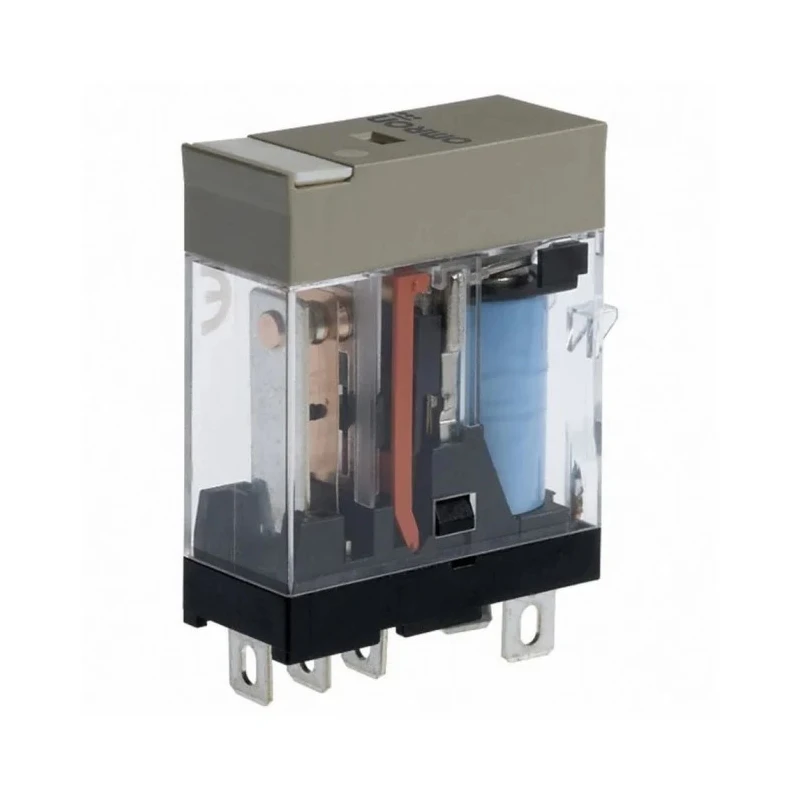

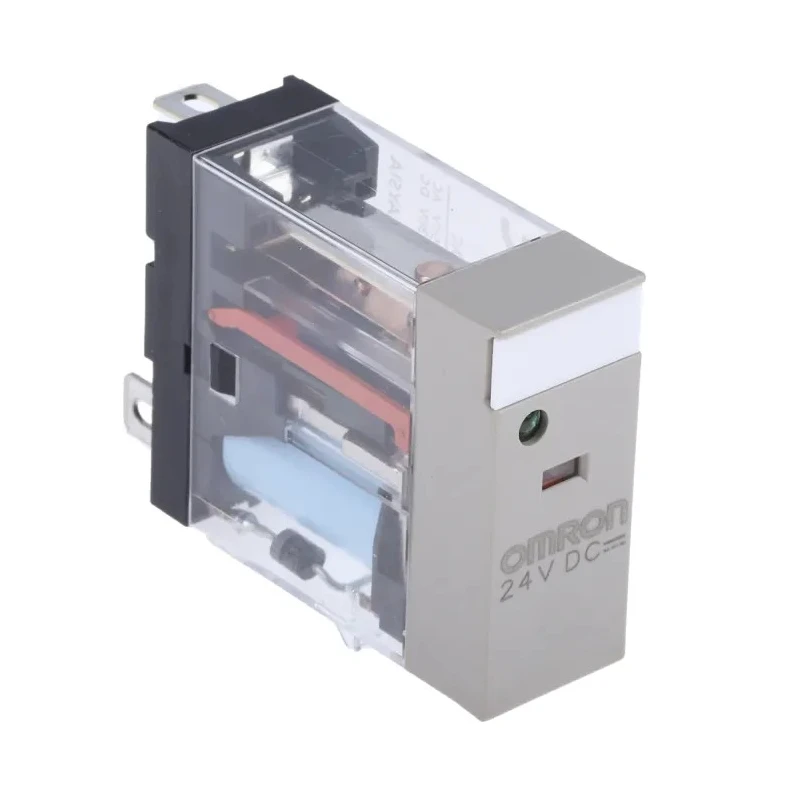

Omron Power Relay, 24V DC Coil, 6A Switching Current, SPDT Contact Configuration G2R-1-SND 24VDC (S)
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Omron |
| Height | 5.2mm |
| Length | 30.5mm |
| Model | G2R-1-SND 24VDC (S) |
| Width | 29.5mm |
| Contact Material | Silver Alloy |
| Series | G2R |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Plug-In |
| Contact Resistance | 30mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 300mW |
| Switching Power | 0.9W |
| Omron Relay, 24V dc Coil, 10A Switching Current, SPDTBrand | Omron |
Key Features
- Plug-in design ensures easy installation and space-saving benefits.
- Silver alloy contacts provide high conductivity and durable electrical performance.
- Supports switching power up to 0.9 watts and switching voltages of 125V DC and 440V AC.
- Operates reliably within a temperature range of -40°C to 70°C.
- Coil resistance is 1.1 kΩ with coil power consumption of 300 mW for efficient operation.
- Compact dimensions with 30.5mm length, 29.5mm width, and 5.2mm height.
- Approved to CSA and UL standards for safety and quality assurance.
- Contact resistance of 30 mΩ enables low-loss switching.
Product Description
Omron G2R-1-SND 24VDC (S) power relay is a high-quality electrical component designed for industrial applications including PLC control panels and machinery automation. It features a 24V DC coil voltage and a single pole double throw (SPDT) contact configuration, making it versatile for switching control circuits.
The relay utilizes silver alloy contacts for enhanced conductivity and mechanical durability, supporting a maximum switching current of 6A and switching power of 0.9 watts. It is capable of switching DC voltages up to 125V and AC voltages up to 440V, suitable for diverse industrial power requirements.
Engineered for reliable operation in harsh environments, it functions properly within an operating temperature range from -40°C to 70°C. The plug-in terminal type simplifies installation and replacement, saving time and reducing downtime. The coil resistance of 1.1 kΩ combined with a coil power of 300 mW ensures efficient power usage.
The relay's compact size, measuring 30.5mm in length, 29.5mm in width, and 5.2mm in height, allows for space-saving in dense electrical assemblies. It meets CSA and UL safety approvals, assuring compliance with industrial quality standards.
This power relay is especially suited for PLC control panel applications, providing long-lasting electrical and mechanical durability for industrial automation needs. Plug-in design ensures easy installation and space-saving benefits.
Silver alloy contacts provide high conductivity and durable electrical performance. Supports switching power up to 0.9 watts and switching voltages of 125V DC and 440V AC. Operates reliably within a temperature range of -40°C to 70°C.
Coil resistance is 1.1 kΩ with coil power consumption of 300 mW for efficient operation. Compact dimensions with 30.5mm length, 29.5mm width, and 5.2mm height. Approved to CSA and UL standards for safety and quality assurance.
Contact resistance of 30 mΩ enables low-loss switching. Designed specifically for industrial PLC control panel applications requiring robust switching capabilities. Explore more Power Relays and contactors at EnvMart for your industrial and electrical automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC.
It supports a maximum switching current of 6A.
This relay measures 30.5mm in length, 29.5mm in width, and 5.2mm in height.
It features a single pole double throw (SPDT) contact configuration.
The maximum switching voltage is 125V DC and 440V AC.
The contact material is silver alloy, which provides high conductivity.
It operates reliably within a temperature range of -40°C to 70°C.
The coil resistance is 1.1 kΩ.
The coil power consumption is 300 mW.
It is approved to CSA and UL standards for safety and quality assurance.
The contact resistance is 30 mΩ, enabling low-loss switching.
It uses a plug-in terminal type for easy installation.
