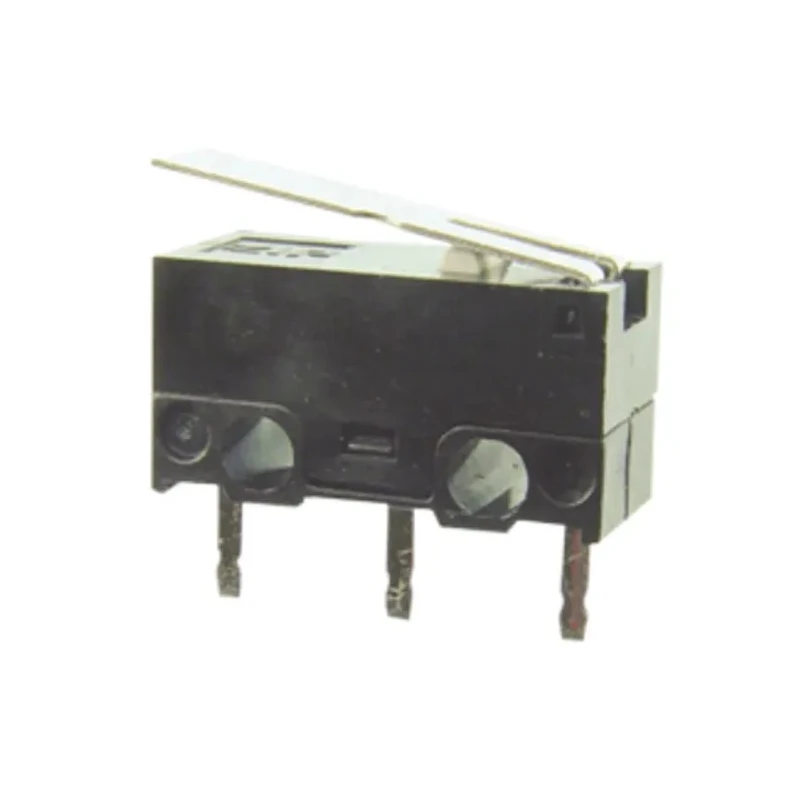

C & K Lever Snap Action Micro Switch, Through Hole Terminal, 100mA Current, 125 V AC, 60 V DC, SPCO Contact ZMA00A150L04PC

Free Delivery in India | Lowest Global Shipping Charges

C & K Lever Snap Action Micro Switch, Through Hole Terminal, 100mA Current, 125 V AC, 60 V DC, SPCO Contact ZMA00A150L04PC

Name: C & K Lever Snap Action Micro Switch, Through Hole Terminal, 100mA Current, 125 V AC, 60 V DC, SPCO Contact ZMA00A150L04PC
Brand: C & K
SKU: 419488
Price: 122.61 INR
Availability: InStock



Category Micro Switch Brand C & K Condition New

Specifications

Country of Origin	India
Brand	C & K
Length	12.8mm
Model	ZMA00A150L04PC
Depth	5.8mm
IP Rating	IP40
Width	5.8mm
Housing Material	Polybutylene Terephthalate
Series	ZMA
Maximum Operating Temperature	85°C
Contact Configuration	SPCO
Actuator Type	Lever
Minimum Operating Temperature	-40°C
Terminal type	Through Hole
Standards/Approvals	UL 61058-1, cULus, ENEC, UL 1054
Contact DC Voltage	60V dc
Switch Contact Current	100mA
Operating Force	150g
Mechanical Life	1000000Cycles
Contact AC Voltage	125V ac
Microswitch Type	Subminiature

Key Features

Features a lever actuator type for easy operation.
Through hole terminals provide secure PCB mounting.
Supports switch contact current up to 100mA.
Housing constructed from durable polybutylene terephthalate.
Contact configuration is SPCO, suitable for single-pole changeover.
IP40 rated for protection against solid objects greater than 1mm.
Operates with a low force of 150 grams for actuation.
Designed for subminiature microswitch applications with compact size.

Product Description

C & K ZMA00A150L04PC lever snap action micro switch is a subminiature switch designed for precise and reliable operation in electrical and automation systems. It features a lever actuator and through hole terminals for robust mounting on printed circuit boards.

Constructed with durable polybutylene terephthalate housing, this micro switch is built for longevity and consistent performance. It supports a switch contact current of 100mA with contact AC voltage rating of 125 V and DC voltage rating of 60 V, making it suitable for various low current switching applications.

The switch offers a single-pole changeover (SPCO) contact configuration with a low operating force of 150 grams to ensure easy actuation. It is rated at IP40 for protection against ingress of solid particles larger than 1 mm, and it operates reliably within a temperature range of -40°C to 85°C.

With a mechanical life of 1,000,000 cycles, this component is well suited for demanding environments requiring long-lasting and dependable micro switches. Standards compliance includes UL 61058-1, cULus, ENEC, and UL 1054 certifications, ensuring safety and quality.

Typical industrial use cases include PCB detection switches, communication devices, and testing equipment, where compact size, reliability, and precise operation are critical. Features a lever actuator type for easy operation.

Through hole terminals provide secure PCB mounting. Supports switch contact current up to 100mA. Housing constructed from durable polybutylene terephthalate. Contact configuration is SPCO, suitable for single-pole changeover.

IP40 rated for protection against solid objects greater than 1mm. Operates with a low force of 150 grams for actuation. Designed for subminiature microswitch applications with compact size. Mechanical life rated to 1,000,000 cycles ensures long term reliability.
