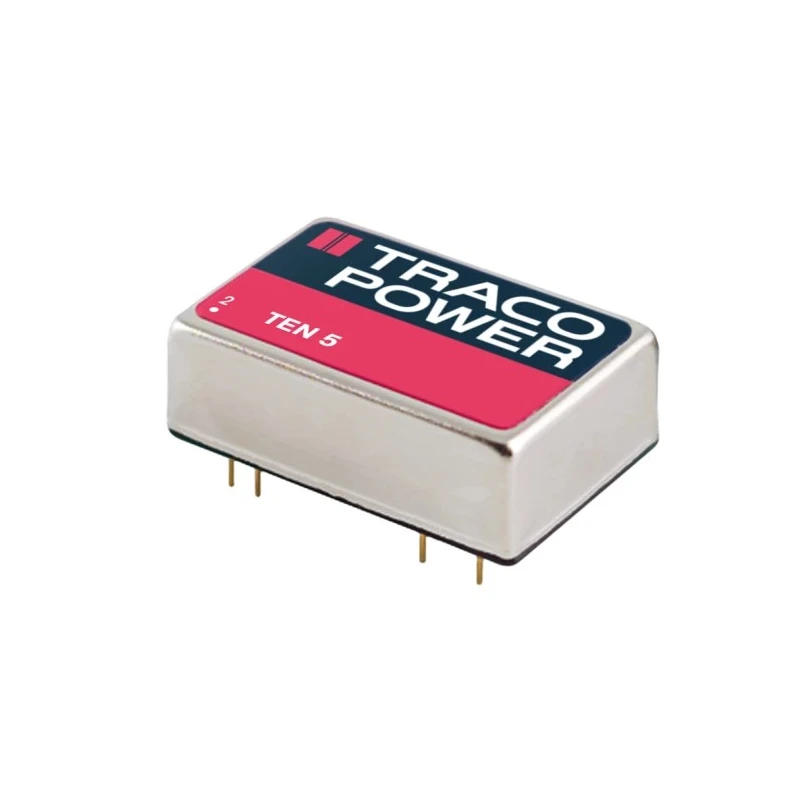

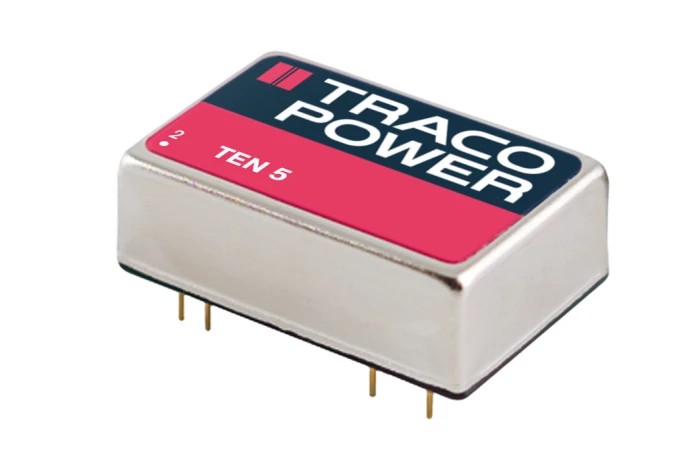

TRACOPOWER DC/DC Converter 2 Output 15V 200mA 6W Through Hole 85°C Max Temp TEN 5-0523

TRACOPOWER TEN 5-0523 DC/DC Converter is engineered to provide two isolated outputs of +15V and -15V at 200 mA each, delivering a maximum output power of 6 watts. It features a robust through hole DIP package with 8 pins and measures 20.3 mm in length, 31.8 mm in width, and 10.2 mm in depth, suitable for integration in industrial control, communication systems, and mobile battery-powered devices.

This model supports a wide 2:1 input voltage range of 4.5V to 7V. Its high efficiency of 82 percent allows for optimized power conversion with minimal losses. The converter includes built-in short circuit protection and an input filter that complies with EN 55022 Class A without additional external components.

The module's operating temperature range from -40°C to +85°C makes it suitable for use in demanding environments including industrial automation and embedded systems. The unit has an isolation voltage rating of 1.5 kV, ensuring secure separation between input and output circuits, and features low ripple and noise of 75 mV peak-to-peak for stable output signals.

The metal shielded case with insulated baseplate offers mechanical robustness and thermal management. With a Mean Time Between Failures (MTBF) of 1,000,000 hours, this converter ensures extended operational life for critical applications.

High efficiency up to 82 percent for optimized power usage. Short circuit protection safeguards the converter and connected equipment. Wide input voltage range with 2:1 ratio for versatile deployment. Through hole DIP package enables secure mounting and simple assembly.

Wide operating temperature supports harsh and industrial conditions. Electrical isolation of 1.5 kV for safety and noise immunity. Low ripple and noise output for clean power supply. Robust shielded metal case with insulated baseplate improves durability.

High reliability with 1,000,000 hour MTBF for long-term use.

This converter is ideal for use in industrial, telecommunications, and embedded control applications requiring isolated dual output voltages with low noise. Its compact design and robust construction make it suitable for PCB integration in power sensitive systems.
