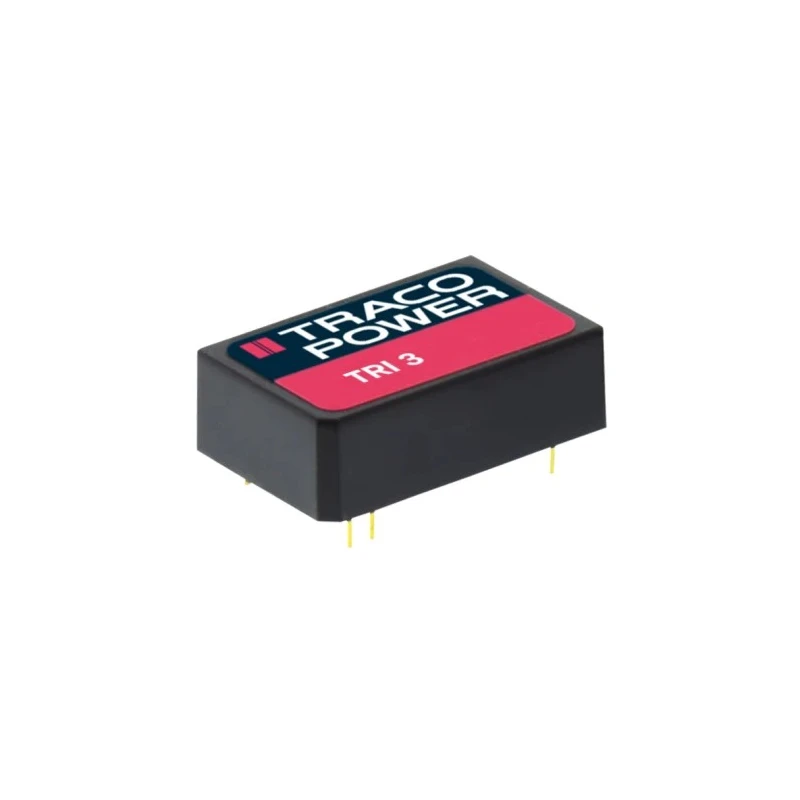

TRACOPOWER DC/DC Converter Dual Output 15V/115mA 36V DC Input 3.5W Through Hole DIP Package TRI 3-2423
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TRI 3 DC/DC Converter, 15V dc/ 115 mA |
| Brand | TRACOPOWER |
| Efficiency | 86% |
| Length | 31.8mm |
| Model | TRI 3-2423 |
| Depth | 12mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | TRI 3 |
| Maximum Operating Temperature | 90°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 5815000h |
| Number of outputs | 2 |
| Maximum Output Power | 3.5W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 115mA |
| Isolation Voltage | 5kV ac |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -15V dc |
Key Features
- Provides dual output voltages of +15V and -15V DC suitable for dual supply circuits.
- Operates efficiently with a power rating of 3.5W and an efficiency of 86%.
- Features 5kV AC isolation voltage ensuring safe electrical isolation.
- Compact DIP package with dimensions 31.8mm length, 20.3mm width, and 12mm depth for space saving installation.
- Designed to operate reliably in temperature ranges from -40°C to 90°C.
- High MTBF of 5,815,000 hours indicating long operational lifetime.
- Through-hole mounting type facilitates secure PCB fixing.
- Seven-pin configuration supports easy integration into systems.
Product Description
TRACOPOWER TRI 3-2423 is a high-quality DC/DC converter module providing dual output voltages of ±15V dc and rated at 115 mA output current per channel. This device operates with an input voltage range of 18 to 36V DC, making it ideal for applications requiring isolated dual power supply rails.
The converter comes in a compact through-hole DIP package measuring 31.8 mm in length, 20.3 mm in width, and 12 mm in depth, fitting seamlessly onto printed circuit boards for industrial, laboratory, and electronic instrumentation use. With a high isolation voltage rating of 5kV AC, it ensures electrical safety and noise reduction between input and output sides.
Operational efficiency is noted at 86%, helping to minimize energy losses during operation. The device is designed to function reliably in extreme temperatures ranging from -40°C to 90°C, accommodating demanding environmental conditions found in manufacturing, instrumentation, and power supply systems.
Its robustness is further demonstrated by a Mean Time Between Failures (MTBF) of 5,815,000 hours, ensuring dependable performance over long operational periods. The seven-pin DIP package simplifies system integration, offering through-hole mounting for stability and ease of assembly.
Dual ±15V DC output supports balanced power supply requirements. 3.5W maximum output power for diverse low-power applications. 5kV isolation voltage protects sensitive circuits. High efficiency reduces operational heat and power consumption.
Wide temperature range operation suitable for harsh environments. Compact DIP-24 package with through-hole mounting. Long life expectancy with MTBF of over 5.8 million hours. Seven pins allow straightforward installation and wiring.
Manufactured in Taiwan, Province Of China ensuring quality. Compatible with industrial, instrumentation, laboratory, and electronic projects.
This TRACOPOWER DC/DC Converter is ideal for electronic control, measurement devices, and industrial power supplies that require isolated dual-output voltage regulation. Its robust construction and efficient design allow reliable use in electronics manufacturing, testing setups, and embedded systems.
Explore more DC/DC Converters and power supply products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of +15V and -15V DC.
The maximum input voltage for this converter is 36V DC.
It operates with an efficiency of 86%.
The maximum output power is 3.5W.
The converter measures 31.8mm in length, 20.3mm in width, and 12mm in depth.
It has an isolation voltage rating of 5kV AC, ensuring safe electrical isolation.
It is designed to operate reliably in temperatures ranging from -40°C to 90°C.
This unit features two outputs.
It utilizes a through-hole mounting type for secure PCB fixing.
The MTBF is 5,815,000 hours, indicating a long operational lifetime.
This converter has a seven-pin configuration for easy integration into systems.
It is ideal for electronic control, measurement devices, and industrial power supplies requiring isolated dual-output voltage regulation.
