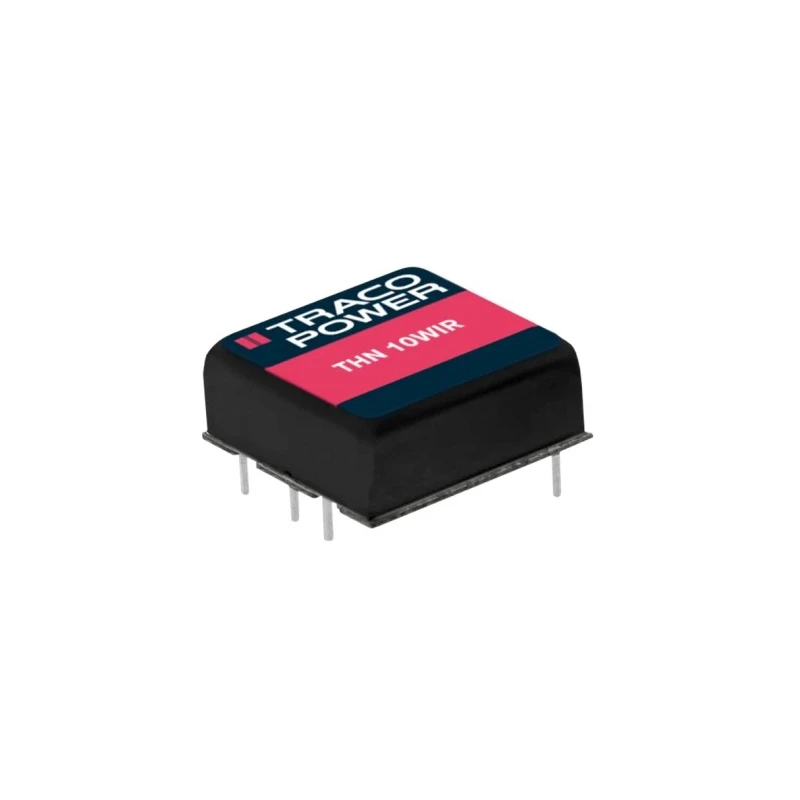

TRACOPOWER DC/DC Converter 12V dc 416 mA 36V dc Input 9V Input 10 W Through Hole THN 10-2422WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THN 10WIR DC/DC Converter, 12V dc/ 416 |
| Brand | TRACOPOWER |
| Efficiency | 0.89% |
| Length | 25.4mm |
| Model | THN 10-2422WIR |
| Depth | 9.9mm |
| Gross Weight | 16.5g |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | THN 10WIR |
| Maximum Operating Temperature | 80°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2334000h |
| Number of outputs | 2 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 416mA |
| Isolation Voltage | 3kV dc |
| Input Ratio | 4:1 |
| Output Voltage 2 | -12V dc |
| Input Ratio4 | 1 |
Key Features
- This converter features a through-hole DIP package suitable for PCB mounting.
- It offers a maximum output power of 10 watts with high efficiency around 90%.
- The product supports an operating temperature range from -40°C up to 80°C without derating.
- Includes built-in protection against overload, overvoltage, and short circuit.
- The converter provides 3000 VDC isolation voltage for enhanced safety.
- Supports remote On/Off and output voltage trimming functions.
- The device features a rugged six-side shielded metal package measuring 25.4mm × 25.4mm × 9.9mm.
- Ideal for reliable operation in harsh industrial and electronic environments.
Product Description
TRACOPOWER THN 10-2422WIR is a highly reliable DC/DC converter designed to provide ±12V output voltages at a maximum power of 10 W and a nominal output current of 416 mA. It accepts a wide dc input voltage range from 9V to 36V, supporting an input ratio of 4:1, making it versatile for various electronic power supply applications.
Housed in a compact through-hole DIP package with dimensions 25.4 mm length, 25.4 mm width, and 9.9 mm depth, this device is well suited for PCB mounting in industrial, telecommunications, and embedded computing systems. The six-side metal shielding offers excellent electromagnetic compatibility and protects against thermal shock and vibration.
Featuring high efficiency exceeding 89%, the THN 10-2422WIR ensures energy savings and minimal heat dissipation. It also incorporates essential protections including overload, overvoltage, and short circuit safeguards, which contribute to its robust performance in harsh environments.
The converter provides an isolation voltage of 3000 VDC between input and output, enhancing the safety and integrity of sensitive electronic circuits. Its rugged design supports operation from -40°C up to 80°C without derating, suitable for industrial and commercial applications such as industrial automation, telecommunications, laboratory equipment, and instrumentation.
This DC/DC converter’s remote On/Off control and output voltage trim allow precise and flexible system integration. Mean time between failures (MTBF) rating of 2,334,000 hours guarantees dependable long-term use. The through-hole mount type provides reliable soldered connections for durable assembly on printed circuit boards.
The THN 10-2422WIR is manufactured in Taiwan, Province of China, adhering to rigorous quality standards to ensure optimal performance. Its absence of certifications noted in product details implies standard compliance without additional approvals.
This product fits perfectly in environments requiring stable dual output power conversion including telecommunications networks, process control systems, industrial instrumentation, and other electronic assemblies.
Explore more DC/DC Converters and related products at EnvMart to find compatible power solutions tailored to your exact industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 10 watts.
It accepts a wide input voltage range from 9V to 36V.
The efficiency of this converter exceeds 89%.
The dimensions of the THN 10-2422WIR are 25.4 mm in length, 25.4 mm in width, and 9.9 mm in depth.
This converter provides an isolation voltage of 3000 VDC between input and output.
It operates within a temperature range of -40°C to 80°C without derating.
The THN 10-2422WIR has two outputs: +12V and -12V.
It features a through-hole DIP package suitable for PCB mounting.
This model includes built-in protection against overload, overvoltage, and short circuits.
The gross weight of this converter is 16.5 grams.
The ripple and noise is specified at 100 mV peak-to-peak.
The MTBF rating for the THN 10-2422WIR is 2,334,000 hours.
