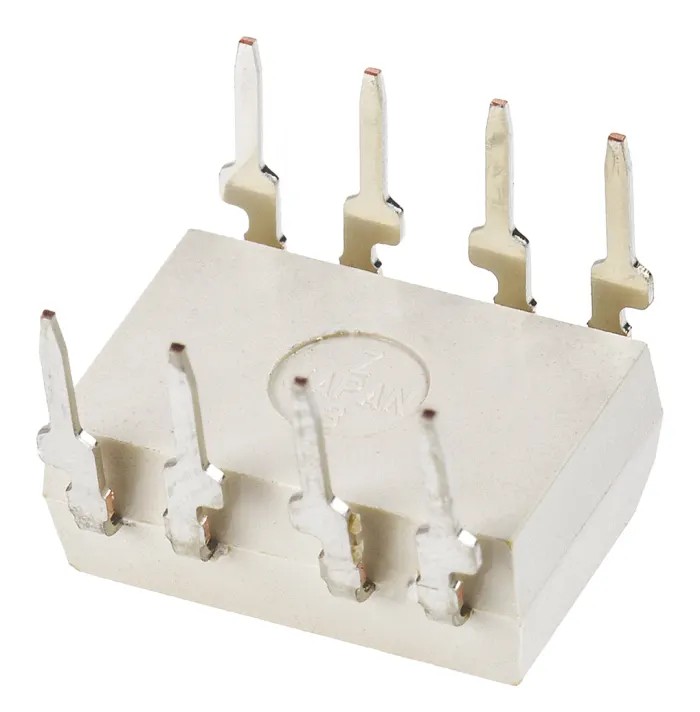

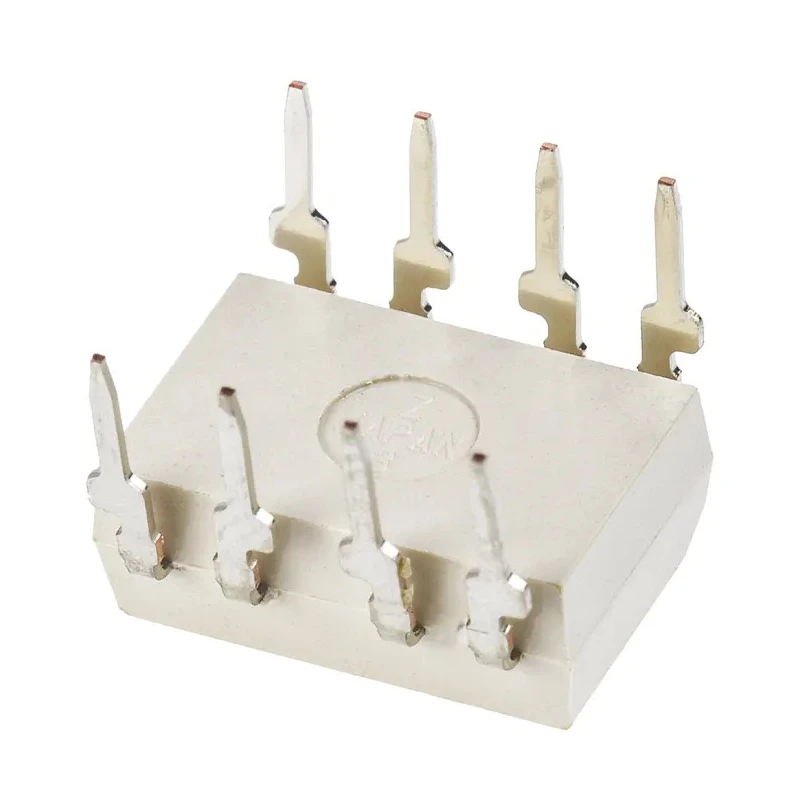

Toshiba AC Input 2-Channel Optocoupler Through Hole MOSFET Output 8-Pin DIP TLP4227G-2(F)
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Toshiba |
| Model | TLP4227G-2(F) |
| Mount Type | Through Hole |
| Output type | MOSFET |
| Series | TLP4227G |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 50mA |
| Number Of Channels | 2 |
| Standards/Approvals | UL1577 |
| Maximum Forward Voltage | 1.3V |
| Number of Pins | 8 |
| Input Current Type | AC |
Key Features
- Features a 2-channel configuration with 8-pin DIP package for easy through-hole mounting.
- Designed with MOSFET output for efficient switching performance.
- Operates with a maximum forward voltage of 1.3V and input current up to 50mA AC.
- Supports wide operating temperature range from -40°C to 85°C for robust industrial applications.
- Provides high isolation voltage rated at 5000 Vrms ensuring safety between input and output.
- Complies with UL1577 standards for high quality and reliability.
- Manufactured in Japan with high-quality semiconductor technology.
Product Description
Toshiba TLP4227G-2(F) is a reliable, high-quality optocoupler designed for electrical isolation in sensitive electronic circuits. This device features an AC input and a 2-channel MOSFET output configuration within a compact 8-pin DIP through-hole package.
The optocoupler excels in environments requiring stable isolation and signal transfer, thanks to its maximum input current rating of 50mA AC and forward voltage of 1.3V. It supports a wide operating temperature range from -40°C to 85°C, making it suitable for industrial, automation, and power control applications.
The device meets the UL1577 standard ensuring safe electrical isolation with an isolation voltage of 5000 Vrms, enhancing safety and durability in electronic circuit designs. Its MOSFET output allows for efficient and fast switching, which is ideal for relay replacement and other control functions.
This optocoupler is manufactured in Japan, reflecting high standards of semiconductor production. Its through-hole DIP package facilitates easy mounting on printed circuit boards for reliable long-term use.
Key features include 2 input channels, 8 total pins, AC input current handling, and compliance with recognized safety and performance standards. The component finds applications in power supplies, industrial automation, instrumentation, and telecommunications equipment requiring isolation.
Provides efficient electrical isolation with AC input and MOSFET output. Supports industrial temperature ranges with reliable performance. Compact 8-pin DIP through-hole package for robust mounting. Certified to UL1577 ensuring industry-standard safety compliance.
High isolation voltage for enhanced circuit protection. Ideal for use in industrial control, power systems, and electronic instrumentation. Explore a wide range of Toshiba electronic components and Optocouplers available on EnvMart for reliable and durable industrial electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 50mA AC.
It has a high isolation voltage rating of 5000 Vrms, ensuring safety between input and output.
The device supports a wide operating temperature range from -40°C to 85°C.
This model features a MOSFET output, which allows for efficient switching performance.
It is designed with a 2-channel configuration.
The maximum forward voltage for this optocoupler is 1.3V.
The TLP4227G-2(F) comes in an 8-pin DIP package for easy through-hole mounting.
Yes, it complies with UL1577 standards for high quality and reliability.
This optocoupler is manufactured in Japan, reflecting high standards of semiconductor technology.
It is suitable for use in power supplies, industrial automation, instrumentation, and telecommunications equipment requiring electrical isolation.
This model supports through-hole mounting, making it easy to install on printed circuit boards.
It belongs to the TLP4227G series of optocouplers.
