| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 5.5mm |
| Length | 2.2mm |
| Model | 74AHC1G08SE-7 |
| Mount Type | Surface |
| Output type | Push Pull |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-353 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Number of Elements | 1 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | AHC |
| Logic Function | AND |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -8mA |
| Maximum Propagation Delay Time @ CL | 10.5ns |
| Maximum Low Level Output Current | 8mA |
| Number of Inputs per Gate | 2 |

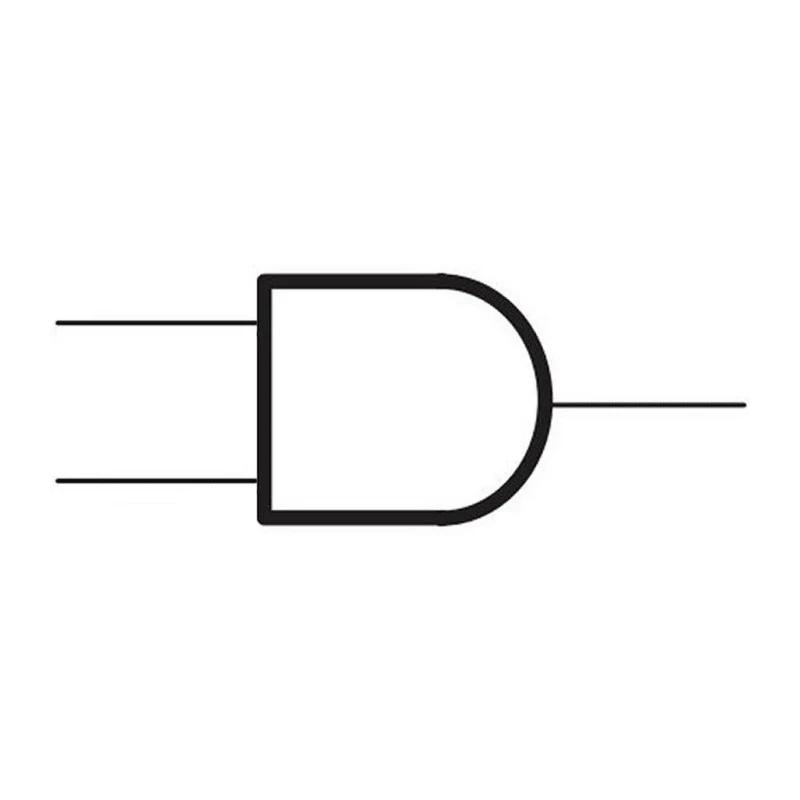

DiodesZetex 74AHC1G08SE-7 is a high-performance 1 2-Input AND Schmitt Trigger Input Logic Gate designed for surface mount applications. Packaged in a compact 5-Pin SOT-353 form factor, this logic gate operates with supply voltages from 2V to 5.5V, making it suitable for a broad range of low voltage digital circuits.
The device integrates a Schmitt trigger input to provide improved noise immunity and clean signal switching in noisy environments. It features a maximum propagation delay time of 10.5ns at a load capacitance, enabling fast and responsive logic operations required in modern electronic designs.
With a wide operating temperature range from -40°C to 125°C, the 74AHC1G08SE-7 logic gate maintains reliable performance in industrial, automotive, and commercial temperature conditions. Its push-pull output design can source and sink up to 8mA of current, supporting robust interfacing with multiple downstream components.
This semiconductor logic gate is ideal for use in digital processing, control circuits, and embedded system designs that require dependable AND gate functionality with enhanced input sensitivity due to the Schmitt trigger circuitry.
The 5-pin SOT-353 package allows space-saving PCB layouts while ensuring ease of assembly with surface mount technology. The part is RoHS compliant and designed according to AHC logic family standards.
Incorporates a single 2-input AND gate with Schmitt trigger input for improved noise immunity. Fast propagation delay time of 10.5ns enables high-speed logic switching. Operates over a temperature range of -40°C to 125°C for industrial applications.
Push-pull output stage supports drive currents up to ±8mA. Package type is SOT-353 with 5 pins for compact surface mount usage. Supply voltage ranges from 2V minimum to 5.5V maximum. Suitable for digital circuits, embedded systems, and automotive electronics.
Available for efficient production insertion on reels, this DiodesZetex Logic Gate meets the needs of electronic designers requiring a reliable and compact logic solution. Explore EnvMart for a wide range of logic components and semiconductor devices.
