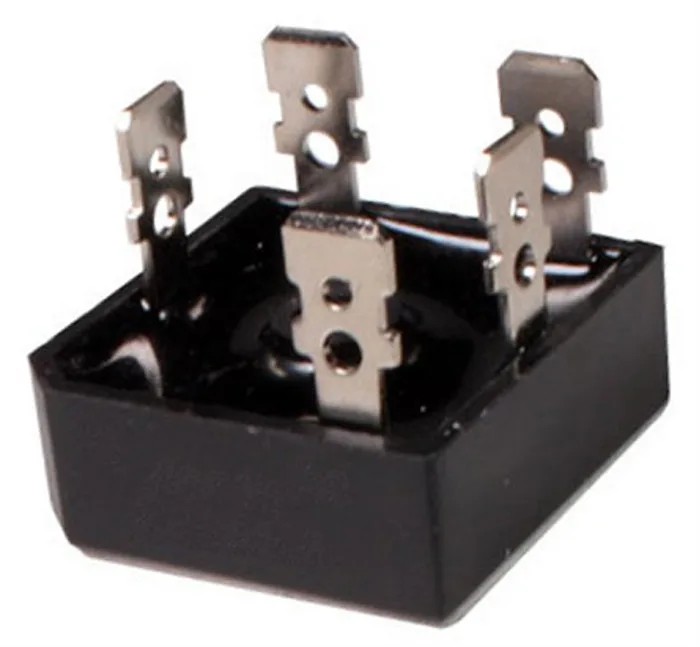

HY Electronic Corp 3-Phase Bridge Rectifier, 1600 V, 35 A Forward Current, 5-Pin Through Hole SBR3516

Free Delivery in India | Lowest Global Shipping Charges

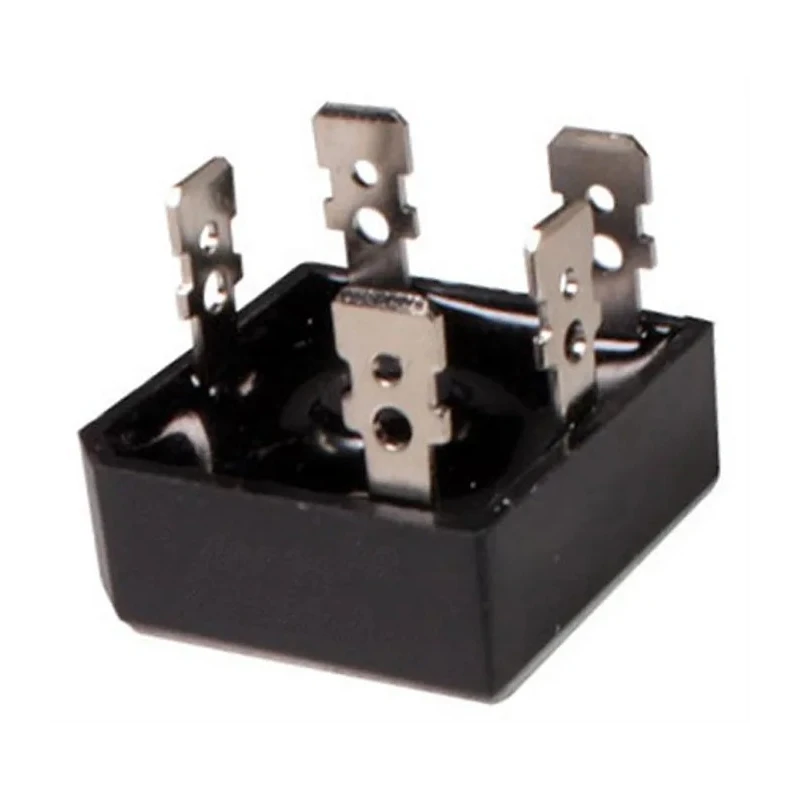

HY Electronic Corp 3-Phase Bridge Rectifier, 1600 V, 35 A Forward Current, 5-Pin Through Hole SBR3516

Name: HY Electronic Corp 3-Phase Bridge Rectifier, 1600 V, 35 A Forward Current, 5-Pin Through Hole SBR3516
Brand: HY Electronic Corp
SKU: 275052
Price: 6.66 USD
Availability: InStock



Category Bridge Rectifier Brand HY Electronic Corp Condition New

Specifications

Country of Origin	China
Brand	HY Electronic Corp
Height	11.5mm
Length	28.8mm
Model	SBR3516
Width	28.8mm
Mount Type	Through Hole
Series	SBR35
Configuration	Single
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-55°C
Number of Phases	3
Pin Count	5
Peak Reverse Repetitive Voltage Vrrm	1600V
Peak Reverse Current Ir	5mA
Peak Non-Repetitive Forward Surge Current Ifsm	500A
Forward Current If	35A
Peak Forward Voltage Vf	1.2V

Key Features

This bridge rectifier supports a maximum operating temperature of 150°C.
It has a 5-pin through-hole mount configuration for easy PCB integration.
The device withstands a peak non-repetitive forward surge current of 500 A.
It features a low forward voltage drop of 1.2 V and peak reverse current of 5 mA.
The rectifier is constructed with a diffused junction for improved performance.
Its physical dimensions are 28.8 mm length, 28.8 mm width, and 11.5 mm height.
Operating temperature range is from -55°C to 150°C.
The product is designed without specific automotive standards compliance.

Product Description

HY Electronic Corp SBR3516 is a silicon passivated three-phase bridge rectifier designed to convert alternating current (AC) into direct current (DC). It supports peak reverse repetitive voltages up to 1600 V and has a forward current rating of 35 A, making it suitable for a wide range of industrial applications.

This 5-pin bridge rectifier mounts through the hole for secure and reliable soldering on PCBs. The device architecture features a diffused junction, allowing for a low forward voltage drop of 1.2 V and high surge current tolerance up to 500 A, making it robust against sudden current spikes.

With a maximum operating temperature of 150°C and a minimum operating temperature of -55°C, the SBR3516 is suitable for harsh industrial environments. Its compact dimensions (28.8 mm × 28.8 mm × 11.5 mm) allow easy integration in electronic equipment where space and thermal management are critical.

The Bridge Rectifier exhibits a peak reverse current of 5 mA, ensuring minimal leakage and high efficiency during operation. Although it does not adhere to specific automotive standards, it is ideal for industrial, power supply, and electronic circuit applications requiring reliable rectification.

Manufactured in China, the SBR3516 Series offers a proven solution for power conversion needs, particularly in industrial electronics and embedded systems. This rectifier enables efficient AC to DC conversion with a durable 5-pin bridge design.

High surge current capacity of 500 A protects against transient overloads. Compatible with through-hole mounting for easy PCB assembly. Wide operating temperature range supports demanding environmental conditions. Low forward voltage drop of 1.2 V enhances power efficiency.

Compact form factor suits tight circuit layouts. Certified for industrial use with reliable electrical characteristics. Designed specifically for 3-phase rectification applications. Explore more industrial electronics and semiconductor components like this in the Electronics & Electricals category on EnvMart.
