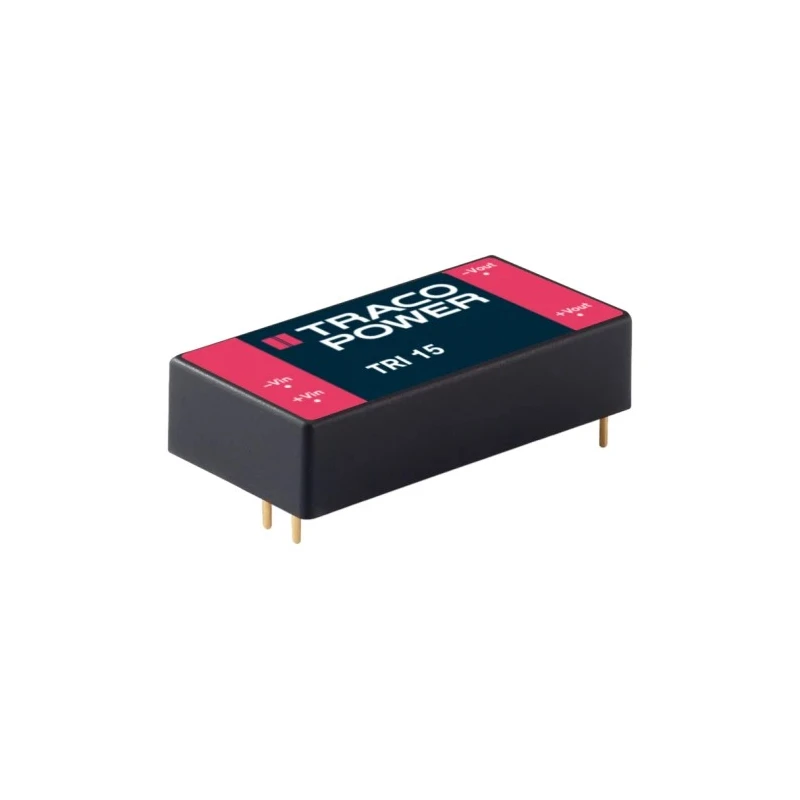

TRACOPOWER TRI 15 DC/DC Converter 15V DC, 500mA Output, 36V DC Input, 15W Through Hole DIP Package TRI 15-2423
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TRI 15 DC/DC Converter, 15V dc/ 500 mA |
| Brand | TRACOPOWER |
| Efficiency | 89% |
| Length | 50.8mm |
| Model | TRI 15-2423 |
| Depth | 12mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | TRI 15 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1428000h |
| Number of outputs | 2 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 5 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 500mA |
| Isolation Voltage | 5.94kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -15V dc |
Key Features
- Operates with an input voltage range of 18V to 36V DC.
- Packaged in a durable DIP through-hole format for secure PCB mounting.
- Features reinforced input/output isolation rated at 4200 VAC continuous and peak 8000 VDC protection.
- High efficiency up to 89% ensuring low power loss during operation.
- Designed for operating temperature range from -40°C up to 85°C.
- Low no-load power consumption between 240 and 480 mW.
- Includes protection against overload, overvoltage, and short circuit conditions.
- 5-pin configuration supporting multiple application requirements.
Product Description
TRACOPOWER TRI 15-2423 is a high-performance DC/DC Converter designed for reliable power conversion in industrial and electronic applications. It delivers a stable 15V DC output at 500mA from a wide input voltage range of 18V to 36V DC. Packaged in a through-hole DIP format, it ensures ease of integration on printed circuit boards.
This converter provides dual outputs of +15V and -15V, suitable for precision electronics requiring bipolar supply voltages. With reinforced isolation of 4200 VAC rated for continuous voltage and peak isolation up to 8000 VDC, it guarantees safety and noise immunity in challenging environments.
Designed to operate across a wide temperature range from -40°C to 85°C, the TRI 15-2423 ensures performance stability under harsh industrial conditions. The unit features high efficiency of approximately 89%, minimizing energy loss and heat dissipation.
Additional protective features include overload, overvoltage, and short circuit protections, enhancing system reliability and longevity. The converter’s low no-load power consumption (240-480 mW) makes it suitable for power-sensitive applications.
Operates with an input voltage range of 18V to 36V DC. Output voltages: +15V DC and -15V DC dual outputs. Through-hole DIP package with 5 pins for reliable mounting. Reinforced isolation rated 4200 VAC continuous, 8000 VDC peak.
High efficiency of 89% for minimal power loss. Operating temperature range from -40°C to 85°C. Low no-load power consumption between 240-480 mW. Protection against overload, overvoltage, and short circuit. Mean time between failure (MTBF) of 1,428,000 hours.
The TRACOPOWER TRI 15-2423 DC/DC Converter is ideal for use in professional industrial control systems, communications equipment, instrumentation, and embedded electronics where reliable power conversion and electrical isolation are critical. It supports diverse applications including industrial automation, laboratory devices, and commercial electronics.
Explore more about TRACOPOWER DC/DC Converters at EnvMart for high-quality power supply solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 18V to 36V DC.
It provides dual output voltages of +15V DC and -15V DC.
The maximum output power of this unit is 15W.
The efficiency of the TRI 15-2423 is up to 89%.
The dimensions of this model are 50.8mm in length, 25.4mm in width, and 12mm in depth.
It operates within a temperature range of -40°C to 85°C.
This model has two outputs.
It is designed for through-hole mounting.
It includes protection against overload, overvoltage, and short circuit conditions.
The isolation voltage rating is 4200 VAC continuous and 8000 VDC peak.
The no-load power consumption ranges between 240 and 480 mW.
The MTBF for this unit is 1,428,000 hours.
