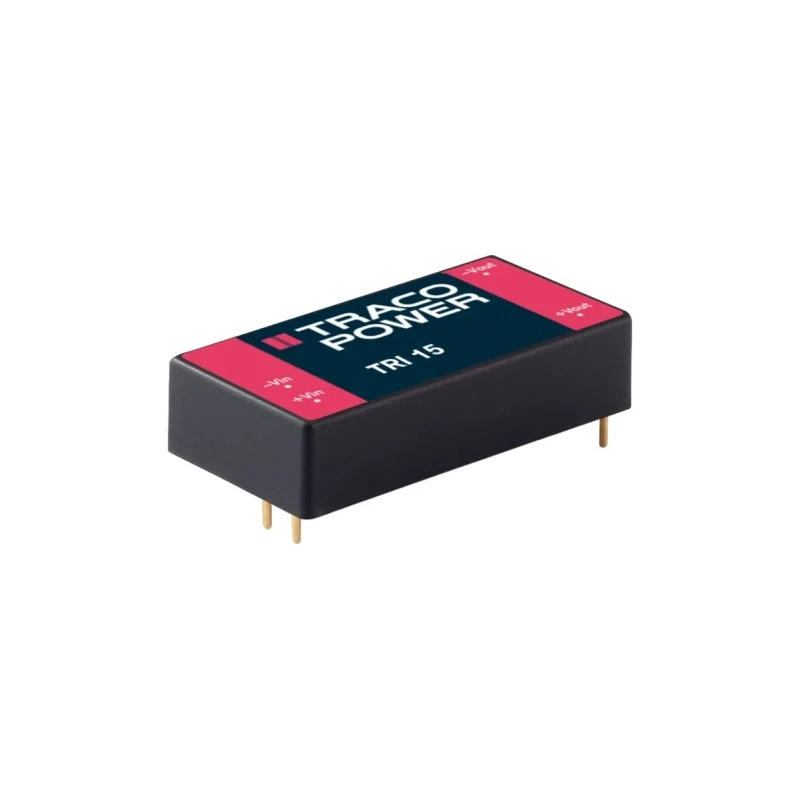

TRACOPOWER DC/DC Converter Through Hole 24V DC Output, 625 mA, 36-75V DC Input, 15W Power, DIP Package, Model TRI 15-4815
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TRI 15 DC/DC Converter, 24V dc/ 625 mA |
| Brand | TRACOPOWER |
| Efficiency | 89% |
| Length | 50.8mm |
| Model | TRI 15-4815 |
| Depth | 12mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | TRI 15 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1428000h |
| Number of outputs | 1 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 36V |
| Number of Pins | 5 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 625mA |
| Isolation Voltage | 5.94kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Features a through hole DIP package design for easy mounting.
- High efficiency conversion with up to 89% efficiency.
- Reinforced input/output isolation rated at 4200 VAC for safe operation.
- Wide operating temperature range from -40°C to +85°C for reliability.
- Low no-load power consumption between 240 and 480 mW.
- Offers protection against overload, overvoltage, and short circuit conditions.
- Designed for industrial and electronic equipment power conversion applications.
Product Description
TRACOPOWER TRI 15-4815 is a high-performance DC/DC converter manufactured in Taiwan, designed to deliver stable 24V DC output at 625 mA with a maximum output power of 15W. It accepts a wide input voltage range between 36V and 75V DC, enabling flexible power supply options in industrial environments.
The converter comes in a through hole DIP package with 5 pins, optimized for straightforward integration into printed circuit boards. Its robust design includes reinforced input/output isolation rated at 4200 VAC, and an ultra-high isolation peak voltage of 8000 VDC for 1 second, ensuring safety and reliability in demanding applications.
Operating efficiently with up to 89% efficiency and consuming low power at no load (240 to 480 mW), the unit supports applications requiring energy sensitivity. It operates reliably across a wide temperature range from -40°C to +85°C, making it suitable for harsh industrial conditions.
The TRI 15-4815 also incorporates protection features against overload, overvoltage, and short circuit, enhancing the durability of connected systems. With a mean time between failures (MTBF) of over 1.4 million hours, this converter offers long operational life.
Through hole DIP package with compact size of 50.8 mm by 25.4 mm by 12 mm. Input voltage range supporting 2:1 ratio for flexible use. Reinforced isolation voltage of 5.94 kV DC for secure electrical isolation. Industrial-grade durability and temperature tolerance.
Low power consumption and high efficiency contribute to energy savings. Designed for applications in industrial, power supply, and electronic devices.
This TRACOPOWER DC/DC converter is suitable for use in industrial automation, electronic instruments, telecommunications equipment, and other manufacturing technologies requiring reliable power conversion and high safety standards. Users benefit from a 3-year product warranty backed by TRACOPOWER's commitment to quality.
Explore the wide range of DC/DC Converters and power supply components available at EnvMart for your next industrial project, ensuring quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 24V DC with a maximum output current of 625 mA.
It accepts a wide input voltage range between 36V and 75V DC, supporting a 2:1 input ratio.
The converter operates with an efficiency of up to 89%.
The dimensions of this unit are 50.8 mm in length, 25.4 mm in width, and 12 mm in depth.
It comes in a through hole DIP package with 5 pins for easy mounting on printed circuit boards.
The maximum operating temperature is 85°C, while the minimum operating temperature is -40°C.
It features reinforced input/output isolation rated at 5.94 kV DC, ensuring safe operation.
It includes protection against overload, overvoltage, and short circuit conditions to enhance system durability.
The MTBF for the TRI 15-4815 is over 1.4 million hours, indicating a long operational life.
This model is designed for industrial automation, electronic instruments, telecommunications equipment, and other manufacturing technologies requiring reliable power conversion.
It has a low no-load power consumption ranging between 240 and 480 mW.
This DC/DC converter is manufactured in Taiwan.
