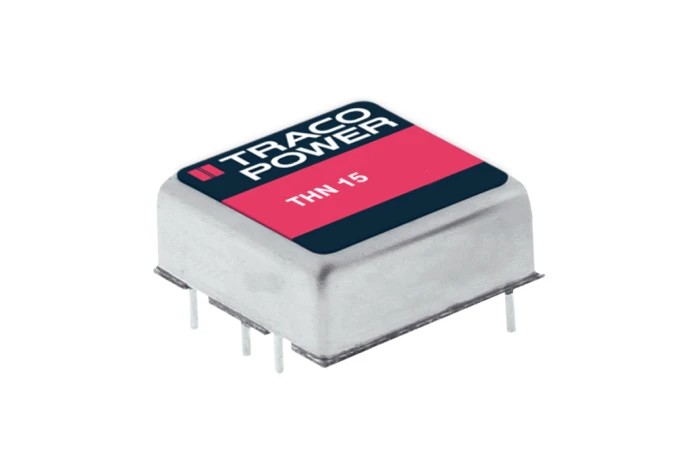

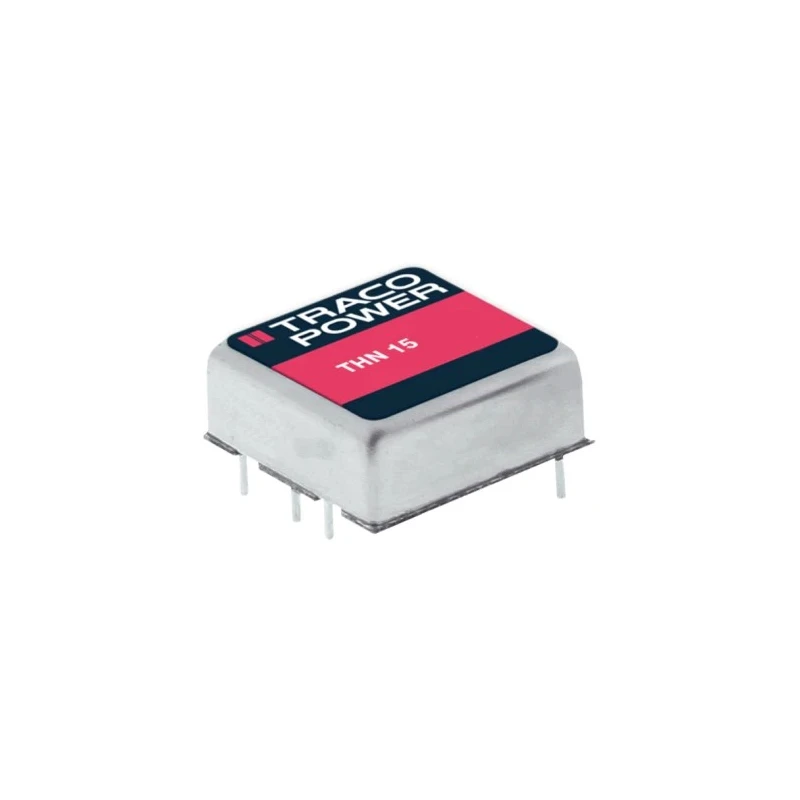

TRACOPOWER DC-DC Converter 15V 1A 18V/9V Input 15W Through Hole -40°C to 85°C THN 15-1213

The TRACOPOWER THN 15-1213 is a high-performance DC-DC converter module engineered to deliver a regulated 15V output at 1A from a wide 2:1 input range of 9V to 18V DC. Designed for reliability, this compact power module provides continuous 15W output power and is constructed with a shielded metal case and insulated baseplate for electromagnetic and thermal stability.

Its industry-standard through hole mounting, combined with robust isolation of 1.5kV, enables safe integration into communication systems, instrumentation, mobile equipment, and industrial electronics. The efficiency rating of up to 88% ensures minimal energy loss and optimal performance, even in demanding environments.

With an operating temperature range of -40°C to 85°C, the THN 15-1213 is suitable for extended use in harsh conditions. The converter features low ripple and noise, adjustable output voltage capability (with external resistors), and a built-in filter meeting EN 55022, Class A and FCC Level A standards when used with external capacitors. For additional safety, the module incorporates protections against over-voltage, over-load, and short circuit.

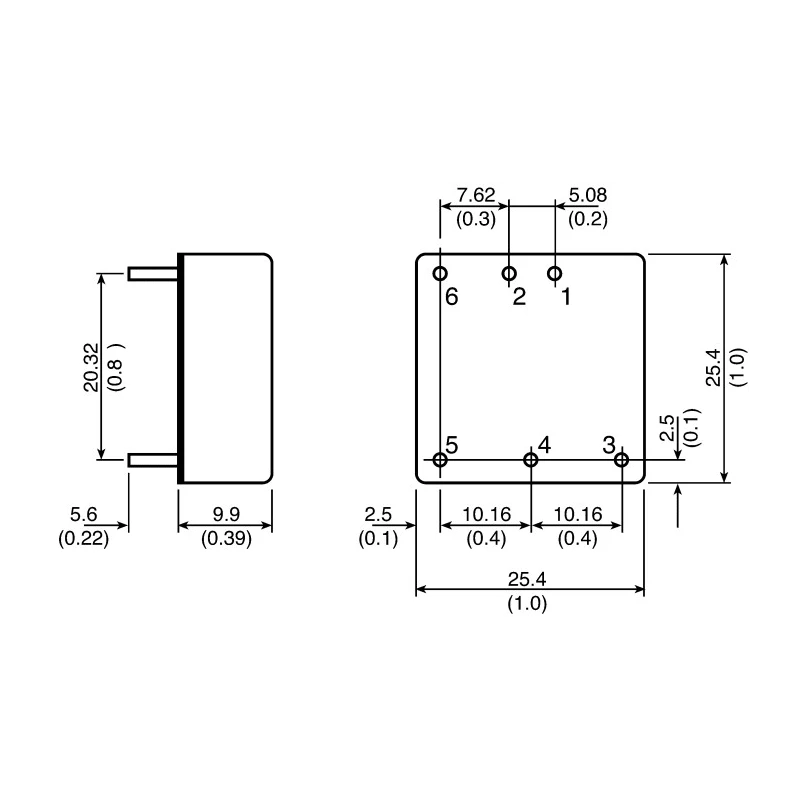

This unit achieves high power density and fits into a miniature package measuring 25.4 x 25.4 x 9.9 mm, optimizing PCB real estate. Typical applications include distributed power architectures, systems requiring remote on/off control, and any electronics requiring robust DC power conversion and isolation.

TRACOPOWER’s THN 15-1213 DC-DC converter is ideal for industrial, instrumentation, and communication equipment, offering reliable, efficient, and secure DC power conversion. Provides a single regulated 15V DC output at a maximum 1A current.

Supports wide 2:1 DC input range from 9V to 18V for flexible operation in varied environments. Offers 15W continuous output power with high power density and compact size. Includes through hole mount and shielded metal case with insulated baseplate for secure installation.

Ensures isolation of 1.5kV for safety and reliable operation in instrumentation and industrial electronics. Achieves efficiency up to 88% with low ripple and noise. Operates within an extended temperature range of -40°C to 85°C.

Designed with over-voltage, over-load, and short circuit protection for robust performance. Explore EnvMart’s full range of TRACOPOWER DC-DC Converters and industrial power solutions for advanced electronic and automation uses.
