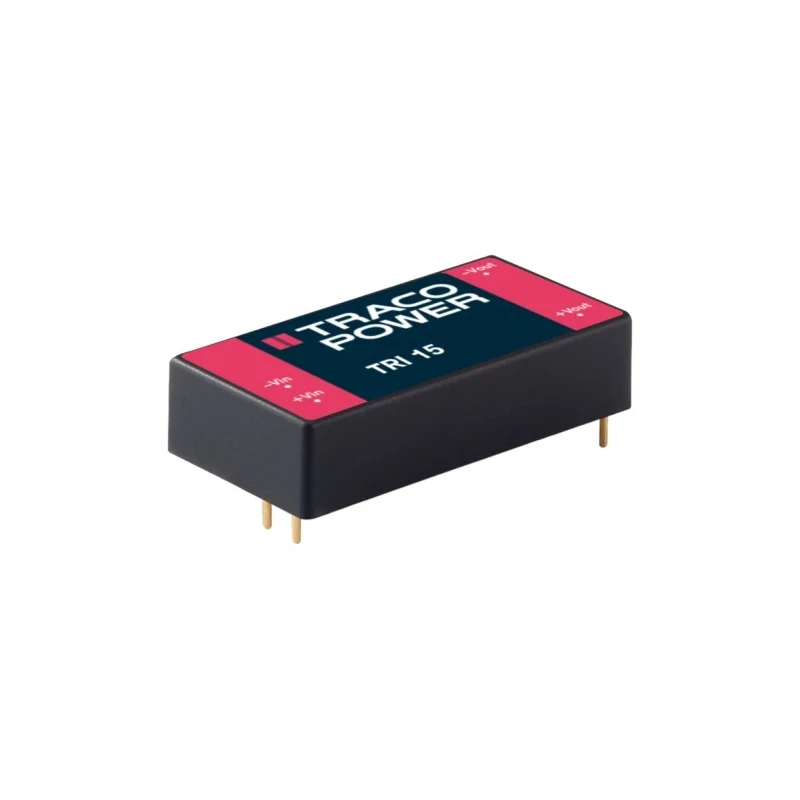

TRACOPOWER TRI 15 DC/DC Converter, 15V DC Output, 500 mA, 18V DC Input, 15W, Through Hole Package TRI 15-1223
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TRI 15 DC/DC Converter, 15V dc/ 500 mA |
| Brand | TRACOPOWER |
| Efficiency | 89% |
| Length | 50.8mm |
| Model | TRI 15-1223 |
| Depth | 12mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | TRI 15 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1428000h |
| Number of outputs | 2 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 5 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 500mA |
| Isolation Voltage | 5.94kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -15V dc |
Key Features
- Reinforced I/O-isolation rated at 4200 VAC for 1000 VAC working voltage.
- Ultra-high isolation peak voltage of 8000 VDC for 1 second.
- Common mode transient immunity of 15 kV/μs ensuring stable operation.
- Operating temperature range from -40°C to +85°C for reliable performance.
- Low no-load power consumption between 240 and 480 mW to reduce energy waste.
- High efficiency of up to 90% for effective power conversion.
- Dual output voltages providing +15V and -15V DC outputs.
- Protection features against overload, overvoltage, and short circuit conditions.
Product Description
TRACOPOWER TRI 15-1223 is a high-performance DC/DC converter delivering a nominal output voltage of 15 Volts DC at 500 mA current with a maximum output power of 15 Watts. It accepts an input voltage range of 9 to 18 Volts DC and is designed in a durable through-hole DIP package suitable for robust PCB mounting.
This converter features reinforced input/output isolation rated at 4200 VAC and an ultra-high isolation peak voltage of 8000 VDC for one second, guaranteeing excellent electrical separation between input and output circuits. The device also offers a high common mode transient immunity of 15 kV/μs, ensuring it operates reliably even in noisy environments.
The operating temperature range spans from -40°C to +85°C, making it ideal for industrial, laboratory, and commercial applications requiring reliable power conversion in wide temperature conditions. Low no-load power consumption between 240 and 480 mW contributes to energy savings and increased efficiency, which peaks at 90%.
Reinforced I/O-isolation rated at 4200 VAC for 1000 VAC working voltage. Ultra-high isolation peak voltage of 8000 VDC (1 second). Common mode transient immunity of 15 kV/μs. Wide operating temperature range from -40°C to +85°C.
Low no-load power consumption between 240 and 480 mW. High efficiency up to 90%. Dual output voltages: +15V and -15V DC. Overload, overvoltage, and short circuit protection. Through-hole mount, DIP package type with 5 pins.
This DC/DC converter is suited for use in power supplies, signal processing, industrial automation, instrumentation, communication equipment, and other electronics requiring stable isolated voltages with high efficiency and safety isolation.
Country of origin is Taiwan, Province Of China. Product condition is new, backed by a 3-year product warranty guaranteeing quality and reliability. Explore more TRACOPOWER DC/DC Converters and power supply modules on EnvMart for various technical and industrial power conversion needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a nominal output voltage of +15V DC and -15V DC, with a maximum output current of 500 mA.
The converter accepts an input voltage range from 9V to 18V DC.
It has a maximum output power of 15 Watts.
The efficiency of this DC/DC converter can reach up to 90%.
The dimensions of this unit are 50.8 mm in length, 25.4 mm in width, and 12 mm in depth.
It operates effectively within a temperature range of -40°C to +85°C.
The TRI 15-1223 is designed for through-hole mounting in a DIP package.
It includes protection against overload, overvoltage, and short circuit conditions.
The isolation voltage is rated at 4200 VAC, with an ultra-high isolation peak voltage of 8000 VDC for one second.
This model has two outputs: +15V DC and -15V DC.
It has a common mode transient immunity of 15 kV/μs, ensuring stable operation in noisy environments.
The country of origin for this product is Taiwan, Province Of China.
