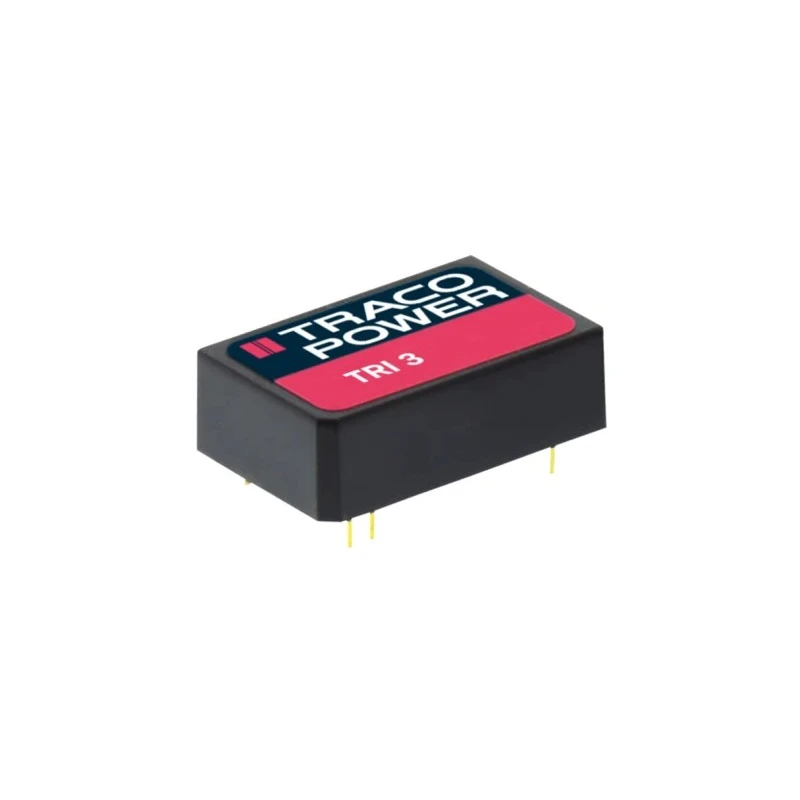

TRACOPOWER DC/DC Converter, 15V DC Output, 115 mA, 75V DC Max Input, 36V Min Input, 3.5 W Power, Through Hole TRI 3-4823
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TRI 3 DC/DC Converter, 15V dc/ 115 mA |
| Brand | TRACOPOWER |
| Efficiency | 84% |
| Length | 31.8mm |
| Model | TRI 3-4823 |
| Depth | 12mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | TRI 3 |
| Maximum Operating Temperature | 90°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 5815000h |
| Number of outputs | 2 |
| Maximum Output Power | 3.5W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 36V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 115mA |
| Isolation Voltage | 7kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -15V dc |
Key Features
- Offers dual output voltages of 15 V DC and -15 V DC with 115 mA current each.
- Designed for through-hole mounting in DIP package for reliable board integration.
- Features reinforced input-output isolation voltage of 7 kV DC for safety.
- Operates efficiently at 84% with low no-load power consumption, suitable for power-sensitive applications.
- Wide operating temperature range from -40 °C to 90 °C allowing use in harsh environments.
- Compact dimensions with length 31.8 mm, width 20.3 mm, and depth 12 mm.
- High reliability with MTBF of 5,815,000 hours ensuring long service life.
- Ideal for industrial electronic circuits requiring stable voltage conversion and isolation.
Product Description
TRACOPOWER TRI 3-4823 DC/DC Converter by TRACOPOWER delivers precise 15V DC output voltage with 115 mA current at a maximum output power of 3.5 W. It supports a wide DC input voltage range of 36V minimum to 75V maximum, making it adaptable for varying power supply conditions. The converter is designed for through-hole installation using a DIP package, measuring 31.8 mm length, 20.3 mm width, and 12 mm depth, suitable for PCB mounting in industrial and electronic applications.
This model supports dual outputs, including a negative voltage output of -15V DC alongside the primary 15V DC output, both capable of supplying 115 mA current. It boasts reinforced isolation voltage of 7 kV DC which safeguards sensitive components by preventing electrical noise and voltage spikes. Additionally, the ultra-high isolation peak voltage can reach 9,000 VDC (1 second), providing superior protection. Common mode transient immunity is rated at 15 kV/μs, further enhancing noise resilience.
Operating temperature range from -40 °C to 90 °C allows reliable performance in harsh environments without derating. The high efficiency of 84% combined with low no-load power consumption (96 - 192 mW) makes this converter energy-efficient and ideal for sensitive electronics. Its input voltage ratio of 2:1 accommodates multiple voltage ranges: 4.5 - 9 V, 9 - 18 V, 18 - 36 V, and 36 - 75 V DC inputs, supporting versatile industrial and electronic designs.
This converter complies with the series TRI 3 standards and is manufactured in Taiwan, Province Of China. The product is built for applications requiring stable voltage conversion and isolation in industrial, communication, instrumentation, and control systems. The DIP through-hole mounting facilitates easy integration on printed circuit boards. Its high MTBF of 5,815,000 hours ensures longevity and reliable operation over time.
Dual output voltages with reinforced 7 kV isolation voltage for safety. Wide 2:1 input voltage range enables flexibility across power sources. Compact DIP package supports through-hole assembly on PCB. High efficiency and low power consumption optimize energy use.
Durable to extreme ambient temperatures from -40 °C to 90 °C.
Choose TRACOPOWER TRI 3-4823 DC/DC Converter for dependable voltage conversion with safety isolation, ideal for industrial electronics, automation control, communication devices, and instrumentation systems.
Explore more DC/DC Converters and power supply solutions from TRACOPOWER at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of 15V DC and -15V DC, each capable of delivering 115 mA current.
The maximum input voltage for the TRI 3-4823 is 75V DC.
It operates with an efficiency of 84%.
The dimensions of the TRI 3-4823 are 31.8 mm in length, 20.3 mm in width, and 12 mm in depth.
This converter features a reinforced isolation voltage of 7 kV DC.
The operating temperature range is from -40 °C to 90 °C, making it suitable for harsh environments.
This model has two outputs: one providing 15V DC and the other -15V DC.
It is designed for through-hole mounting in a DIP package, facilitating easy integration onto printed circuit boards.
The mean time between failures (MTBF) for this converter is 5,815,000 hours.
The minimum input voltage for the TRI 3-4823 is 36V DC.
This model is designed for industrial electronic circuits requiring stable voltage conversion and isolation, suitable for communication, instrumentation, and control systems.
The input voltage ratio for this converter is 2:1, accommodating various voltage ranges from 36V to 75V DC.
