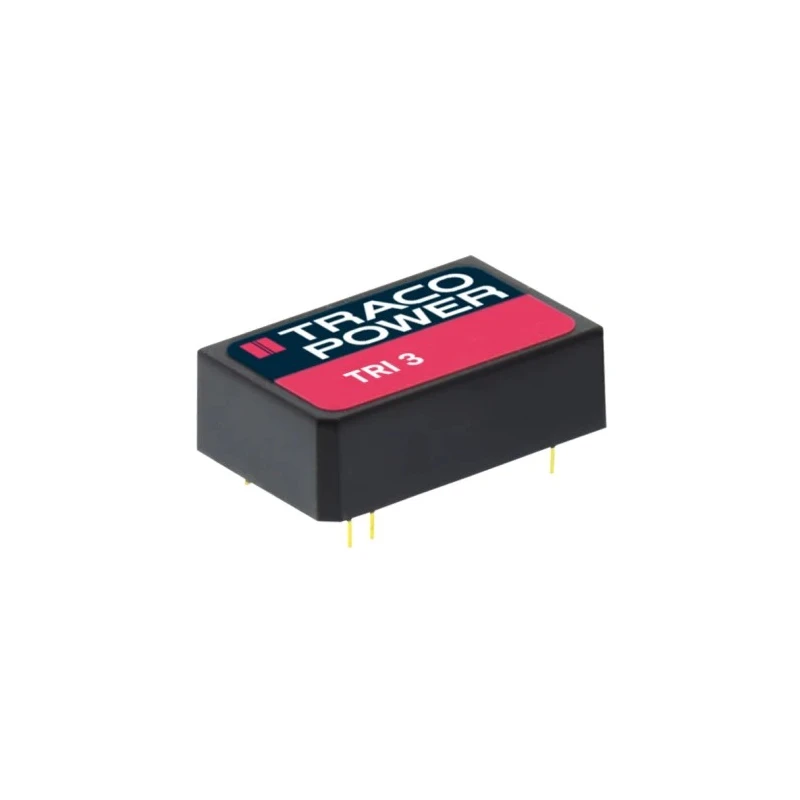

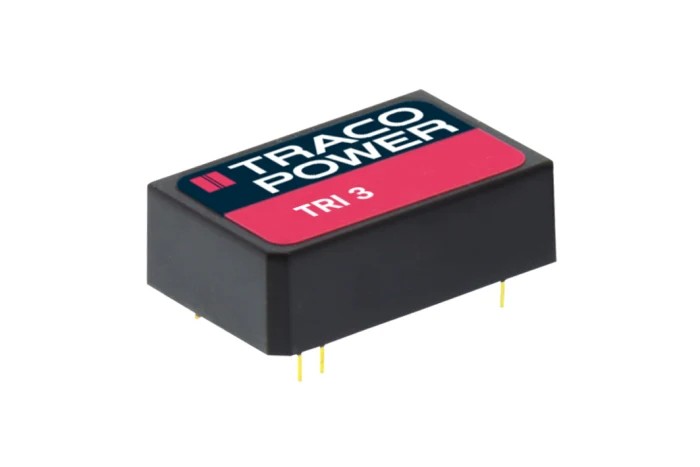

TRACOPOWER DC/DC Converter 15V 115mA 9V DC Input 4.5V Input 3.5W Through Hole TRI 3-0523

TRACOPOWER TRI 3-0523 is an advanced DC/DC converter designed to convert DC voltages efficiently with high reliability and isolation. This module offers a 15V DC output at 115mA, with a minimum input voltage of 4.5V and maximum input voltage of 9V DC, optimized for low power applications up to 3.5W. It features a through hole DIP package that simplifies mounting on printed circuit boards.

The device boasts reinforced I/O isolation rated at 5000 VAC with an ultra-high isolation peak voltage of 9000 VDC for 1 second, providing safety in industrial and electronic applications. Its common mode transient immunity is rated at 15 kV/μs, ensuring performance stability in noisy environments. The converter operates within an extended temperature range from -40°C to +90°C without derating, making it suitable for demanding industrial, telecommunications, and control system applications.

With a high efficiency of up to 84%, it minimizes energy losses, coupled with a low no-load power consumption from 96 to 192 mW. Protection features include overload, overvoltage, and short circuit safeguards, enhancing durability and reliability in critical systems. The device’s DIP package with 7 pins facilitates seamless integration into various electronic designs.

This product is ideal for applications in industrial automation, instrumentation, telecommunications, and power management where compact, efficient, and reliable DC power conversion is required. The robust design and high isolation voltage make it suitable for usage in environments demanding high electrical isolation and noise immunity.

Manufactured in Taiwan, the TRI 3-0523 is backed by a 3-year warranty, reflecting its industrial grade quality and dependability. This component conforms to high standards for power conversion modules without compromising size or performance.

Features a through hole mount design for easy PCB installation. Supports input voltage range of 4.5V to 9V DC with a 2:1 input ratio. Provides dual outputs with isolation voltage rated at 7kV DC. Compact DIP package measuring 31.8mm length, 20.3mm width, and 12mm depth.

Operates efficiently at 84% efficiency ensuring low power loss. Rated maximum output power of 3.5W suitable for low power applications. Wide operating temperature range from -40 to 90 degrees Celsius. Robust reinforced I/O isolation for 5000 VAC rated for 1000 VAC working voltage.

High reliability with MTBF of 5,815,000 hours. Manufactured in Taiwan, Province Of China.
