onsemi 16 kB Serial-I2C EEPROM 1000 ns 8-Pin UDFN Surface Mount CAT24C16HU4I-GT3

onsemi CAT24C16HU4I-GT3 Serial-I2C EEPROM is a high-reliability electrically erasable programmable read-only memory device delivering 16 kB memory capacity. It features a Serial I2C communication interface operational at up to 400 kHz clock frequency, facilitating versatile integration in electronic circuits.

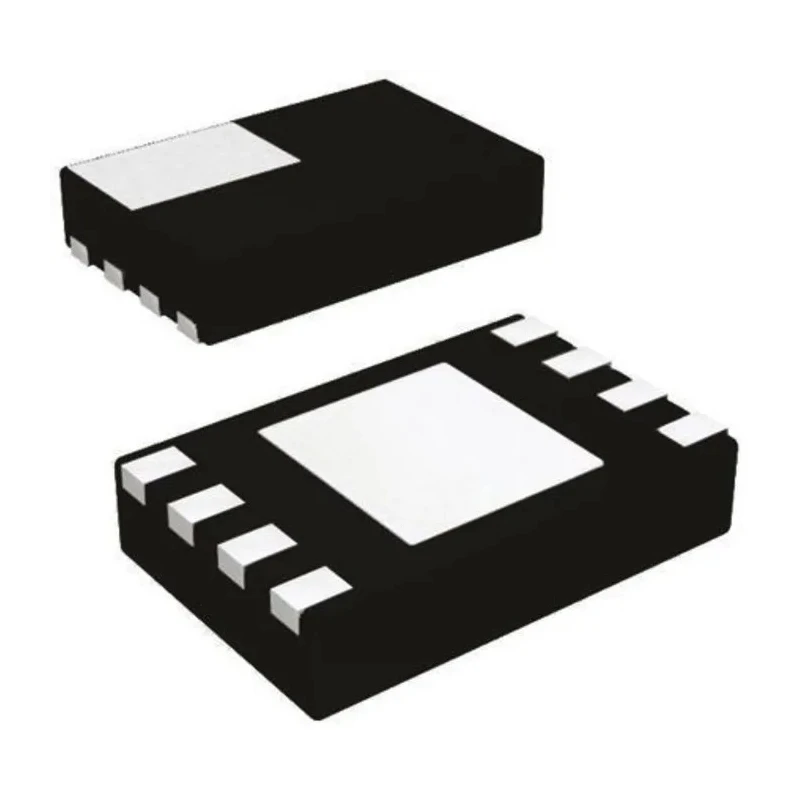

The device is housed in an 8-pin UDFN package designed for surface mounting, offering minimal footprint at 2.05 mm length, 3.05 mm width, and 550 µm height, ideal for space-constrained applications. It supports operating voltages from 1.7 V to 5.5 V, ensuring compatibility across low and standard voltage systems.

With a maximum random access time of 1000 ns, this EEPROM provides fast data reads which enhance system performance. The data retention life extends to 100 years, making it suitable for long-term data storage in industrial, automotive, and commercial electronics.

Certified to meet the automotive AEC-Q100 standard, the CAT24C16HU4I-GT3 withstands operating temperatures from -40°C to 85°C, ensuring reliability under extreme environmental conditions. Its low supply current of 2 mA aids in efficient power consumption management.

This serial EEPROM is commonly utilized in embedded systems, automotive electronics, consumer devices, and industrial controls where non-volatile memory with fast access and low power consumption is critical. The small package size enables easy placement on densely populated printed circuit boards.

This EEPROM provides 16 kilobytes of non-volatile memory storage. Supports Serial I2C interface up to 400 kHz maximum clock frequency. Designed for surface mount with an 8-pin UDFN package. Operates over a wide voltage range from 1.7 V to 5.5 V.

Offers fast random access time of 1000 ns for efficient data retrieval. Features data retention capability up to 100 years ensuring long-term reliability. Rated for automotive standard AEC-Q100 compliance for robust applications.

Temperature rating from -40°C to +85°C suitable for harsh environments. Compact physical dimensions: length 2.05 mm, width 3.05 mm, height 550 µm. Low supply current of 2 mA helps reduce power consumption in designs.

Explore more onserial EEPROMs and memory solutions at EnvMart for applications in electronics manufacturing, automotive systems, industrial automation, and embedded systems development.
