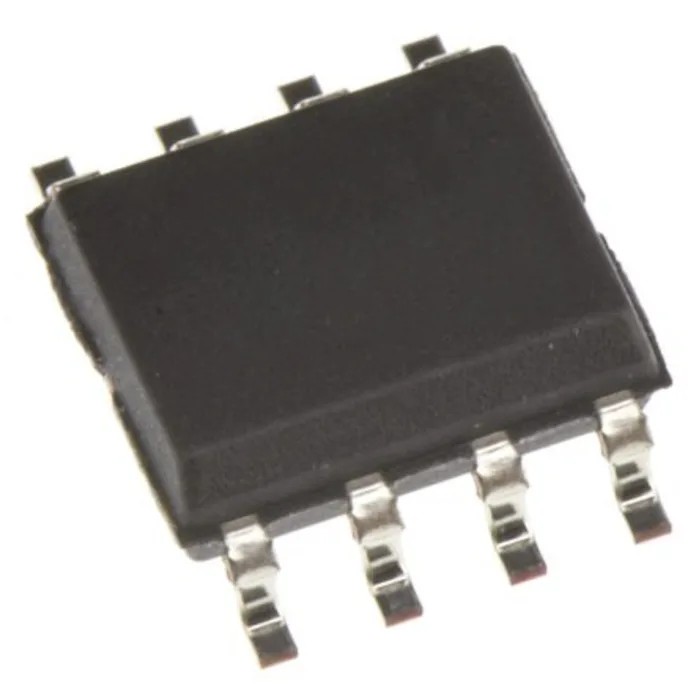

STMicroelectronics Dual Operational Amplifier 1 MHz Gain Bandwidth Product 8-Pin SO Surface Mount MC1458IDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.5mm |
| Length | 5mm |
| Model | MC1458IDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | MC1458 |
| Output Current | 35mA |
| Maximum Operating Temperature | 105°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | -22V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 800 nA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 0.8V/μs |
| Input Offset Current | 300 nA |
Key Features
- Monolithic dual operational amplifier optimized for general feedback configurations.
- Gain bandwidth product of 1 MHz ensuring high gain stability.
- Low input bias current of 800 nA and low offset voltage of 6 mV.
- Slew rate of 0.8 V/μs suitable for moderate speed signal processing.
- Wide operating temperature range from -40°C to 105°C for industrial use.
- Surface-mounted 8-pin SO package for compact PCB integration.
- Short-circuit protection enhances device reliability.
- Operates reliably between -22V minimum to 22V maximum supply voltage.
Product Description
STMicroelectronics MC1458IDT is a dual operational amplifier integrated circuit designed for a wide variety of analogue applications, including integrators, summing amplifiers, and general feedback systems. The device supports a gain bandwidth product of 1 MHz, providing strong performance in linear signal conditioning environments.
Featuring a surface mount 8-pin SO package (package thickness 1.5mm, width 4mm, length 5mm), it promotes compact design in both industrial and commercial electronic systems. The amplifier operates with supply voltages ranging from -22V to 22V and can deliver an output current of up to 35 mA.
The MC1458IDT offers low input bias current of 800 nA and a typical input offset voltage of 6 mV. It also exhibits a slew rate of 0.8 V/μs, which is adequate for many analogue signal processing tasks. Its operating temperature range between -40°C and 105°C ensures stable performance in harsh environments.
The device incorporates short-circuit protection, minimizing risk of damage in fault conditions, and requires no frequency compensation, simplifying circuit design. The component complies with RoHS standards, supporting environmentally responsible manufacturing.
This operational amplifier is suitable for use in industrial control systems, audio devices, measurement instrumentation, signal conditioning, automotive electronics (non-automotive grade), and other analogue circuit configurations requiring reliable, low power, and stable performance.
Monolithic dual amp supporting high gain and linearity. Compact SO 8-pin surface mount package for easy PCB layout. High supply voltage tolerance up to ±22V ensures flexibility. Wide temperature range suits demanding industrial environments.
Low offset voltages and bias currents for precision applications. Short-circuit protected outputs enhance robustness. No latch-up during transients improving reliability. Meets RoHS Directive for environmental compliance.
Applications include general purpose amplifier, integrator, and summing amplifier circuits. Explore a wide range of Operational Amplifiers and semiconductor products at EnvMart for your industrial, commercial, and laboratory electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 MHz, ensuring high gain stability for various applications.
It operates reliably with supply voltages ranging from -22V to 22V, providing flexibility for different circuit designs.
The MC1458IDT can deliver an output current of up to 35 mA, suitable for various analog applications.
This operational amplifier has an operating temperature range from -40°C to 105°C, making it suitable for industrial use.
It comes in a surface-mounted 8-pin SO package with dimensions of 1.5mm in height, 4mm in width, and 5mm in length.
The input bias current is specified at 800 nA, which is low and beneficial for precision applications.
This operational amplifier is suitable for general purpose amplifiers, integrators, summing amplifiers, and signal conditioning tasks.
The slew rate of the MC1458IDT is 0.8 V/μs, which is adequate for moderate speed signal processing.
Yes, it incorporates short-circuit protection, enhancing the reliability of the device during fault conditions.
The typical input offset voltage is 6 mV, which contributes to its precision in analog applications.
Yes, this operational amplifier complies with RoHS standards, supporting environmentally responsible manufacturing practices.
It features a surface mount design, which allows for compact PCB integration in electronic systems.
