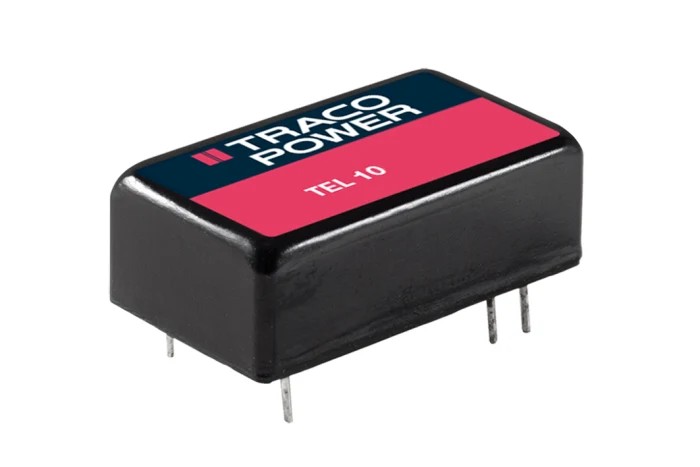

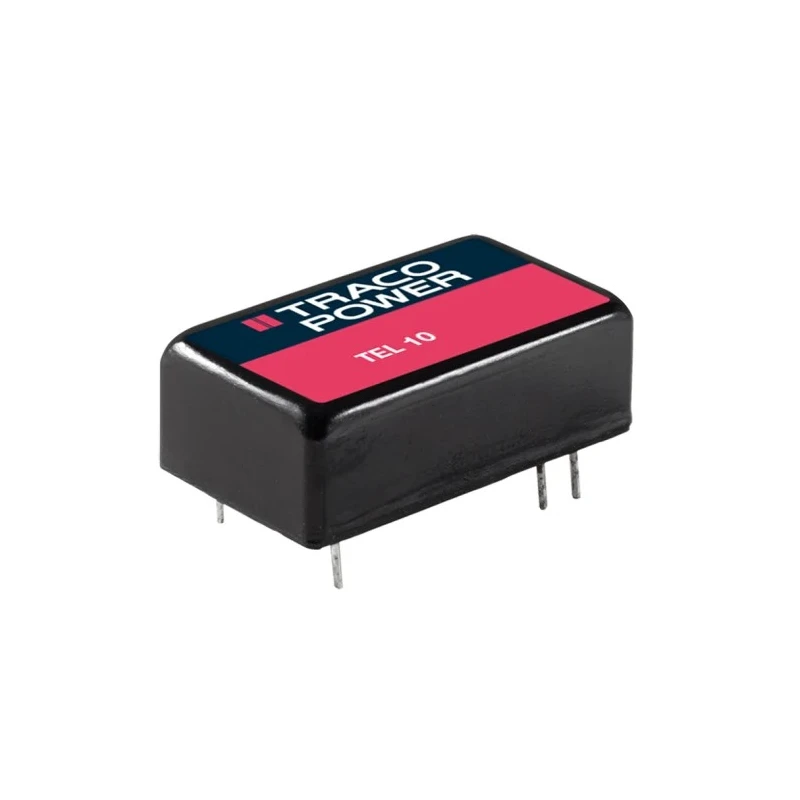

TRACOPOWER Isolated 10W DC/DC Converter 15V dc 333mA Input 18-36V dc PCB DIP-16 TEL 10-2423
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 87% |
| Length | 23.8mm |
| Model | TEL 10-2423 |
| Depth | 8mm |
| Width | 13.7mm |
| Mount Type | PCB |
| Series | TEL 10 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP-16 |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 2 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 333mA |
| Isolation Voltage | 1kV dc |
| Better World Claim | Concentrated or Compact Solution |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -15V dc |
| Wide 2 | 1 input voltage range |
Key Features
- Isolated dual output DC/DC converter designed for industrial and instrumentation use.
- Compact DIP-16 metal casing with insulated base plate ensures durability.
- High efficiency of approximately 87% reduces thermal losses during operation.
- Operating temperature range from -40°C to 85°C suits harsh environments.
- Power density of 3.83 W/cm³ ensures space-saving design.
- Integrated input filter and short circuit/current limitation protection.
- Ideal for space-critical and cost-sensitive industrial electronic systems.
- MTBF rated at 1,000,000 hours guarantees reliable performance.
Product Description
TRACOPOWER TEL 10-2423 DC/DC Converter is a highly compact isolated 10 Watt power supply unit engineered for precision instrumentation and industrial electronics applications.
This model provides a stable 15V DC output with a maximum current of 333 mA, operating from a wide input voltage range of 18V to 36V DC, making it suitable for fluctuating power environments. The converter is housed in a DIP-16 metal casing with a six-sided shield and an insulated base plate enhancing electromagnetic compatibility and physical robustness.
Featuring a remarkable power density of 3.83 W/cm³ and high efficiency of 87%, this device minimizes heat generation and supports operation in ambient temperatures from -40°C up to 85°C, with derated capacity allowed up to 88°C at half load.
Its integrated input filter improves power quality, and the built-in current limitation and short circuit protections ensure safety and longevity of connected equipment.
The TEL 10-2423 is engineered for applications requiring a reliable and compact DC-to-DC conversion solution within stringent space and cost constraints. It is compliant with industry practices for robust long-term operation and is manufactured in Taiwan, Province Of China.
Isolated 10 Watt dual output DC/DC converter in compact DIP-16 package. Operates with a wide 2:1 input voltage range of 18V to 36V DC. Delivers 15V DC output voltage at a current of 333 mA. High efficiency of 87% enables low thermal dissipation.
Suitable for operating temperatures from -40°C minimum to 85°C maximum. Features robust metal casing with insulated base for EMI shielding. Includes internal input filter and short circuit protection. Power density of 3.83 W/cm³ facilitates space-critical designs.
MTBF of 1,000,000 hours indicating exceptional reliability. Perfect for instrumentation, IT, and industrial electronics applications. Explore the range of TRACOPOWER DC/DC Converters on EnvMart for reliable power solutions tailored to industrial, laboratory, and commercial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a wide input voltage range of 18V to 36V DC.
It provides a stable output voltage of 15V DC with a maximum current of 333 mA.
This converter has a high efficiency rating of approximately 87%, which helps reduce thermal losses during operation.
The dimensions of this unit are 23.8 mm in length, 13.7 mm in width, and 8 mm in depth.
The maximum operating temperature for the TEL 10-2423 is 85°C.
Yes, it includes built-in short circuit protection and current limitation features to ensure safety and longevity of connected equipment.
The isolation voltage for this model is rated at 1 kV DC.
It has a power density of 3.83 W/cm³, facilitating space-saving designs.
The TEL 10-2423 is designed for PCB mounting.
The mean time between failures (MTBF) for this model is rated at 1,000,000 hours, indicating reliable performance.
In addition to the 15V DC output, it also provides a second output of -15V DC.
This model is manufactured in Taiwan, Province Of China.
