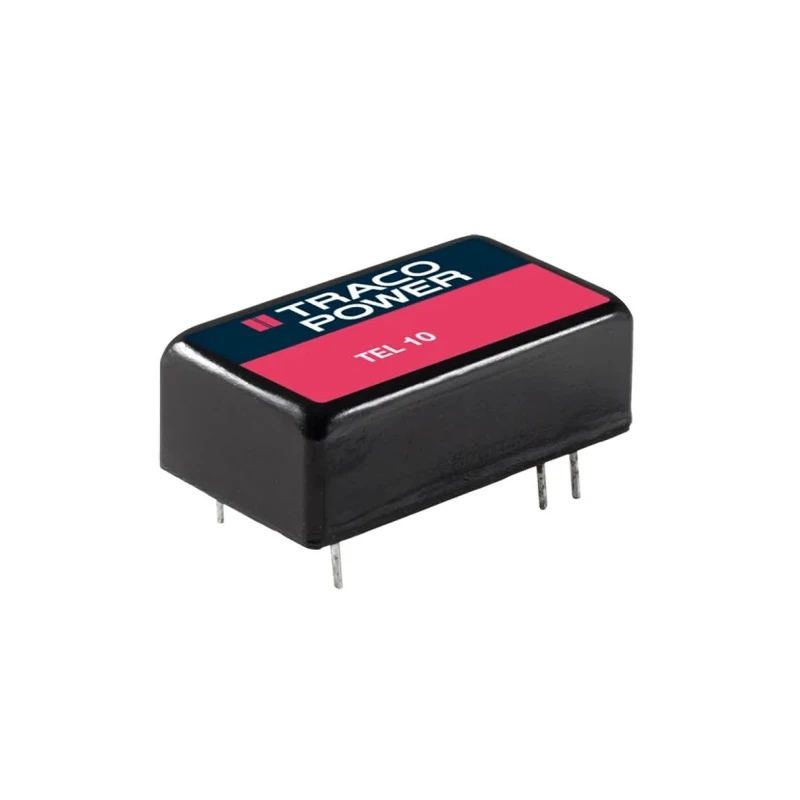

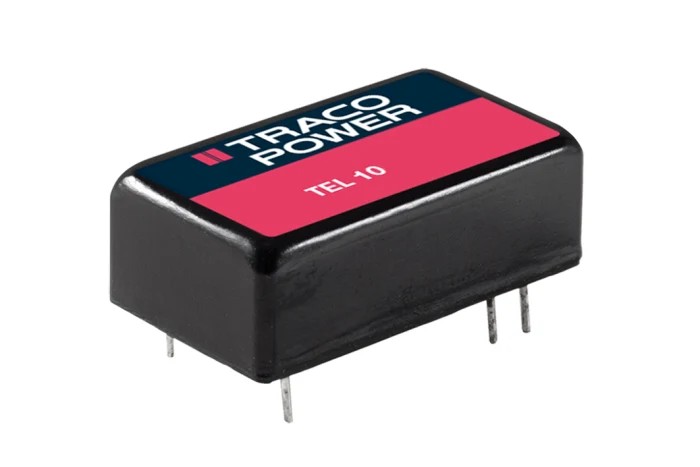

TRACOPOWER DC/DC Converter 5.1V 2A 36V/18V Input 10W PCB DIP-16 Metal Case TEL 10-2411
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 83% |
| Length | 23.8mm |
| Model | TEL 10-2411 |
| Depth | 8mm |
| Width | 13.7mm |
| Mount Type | PCB |
| Series | TEL 10 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP-16 |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 1 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 36V |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 5.1V |
| Output Current 1 | 2A |
| Isolation Voltage | 1kV |
| Better World Claim | Concentrated or Compact Solution |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 2 | 1 input voltage range |
Key Features
- This DC/DC converter provides a reliable isolated 10W power output.
- Its high efficiency of 83% reduces thermal losses during operation.
- The metal case with a 6-side shield and insulated base ensures robust protection and heat dissipation.
- It supports operation from -40°C to 85°C, suitable for demanding environments.
- Internal input filter and current limitation features protect the device from short circuit damage.
- The package dimensions are compact with a 23.8mm length, 13.7mm width, and 8mm depth.
Product Description
TRACOPOWER TEL 10-2411 DC/DC Converter is a highly efficient, isolated 10 Watt power supply designed for industrial, instrumentation, IT, and industrial electronics applications where space and power density are critical. This model operates at 5.1V output voltage delivering 2A current, with a maximum input voltage of 36V and minimum input voltage of 18V, suitable for variable DC power grids.
The converter is mounted on a PCB and housed within a compact DIP-16 metal case featuring 6-side shielding and an insulated base plate for enhanced thermal management and electromagnetic compatibility. With an efficiency rating of 83%, it minimizes energy losses and heat generation, allowing safe operation up to +85°C ambient temperature and down to -40°C for cold environments.
The 2:1 input voltage ratio allows for flexibility in input sources and ensures continuous operation across fluctuating power inputs. It incorporates current limiting and short circuit protection to enhance operational safety and device longevity. The device meets strict standards for power density with a volumetric power density of 3.83 W/cm³.
This converter is ideal for use in industrial automation, control systems, instrumentation, and embedded systems that require clean, reliable DC power conversion in a space-constrained design. The device is a Taiwan, Province Of China origin product and classified as new.
This DC/DC converter offers a compact and efficient 10W isolated power supply solution. The DIP-16 metal package ensures durability and effective heat dissipation. Wide input voltage range of 18V to 36V supports diverse power sources.
High efficiency of 83% minimizes power losses and heat output. Operating temperature from -40°C to +85°C suits harsh industrial environments. Provides reliable current limitation and short circuit protection features. Designed for instrumentation, IT, industrial electronics, and automation applications.
Explore EnvMart’s Electronics & Electricals category for more DC/DC Converters and related power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 10W.
This converter has an efficiency rating of 83%, which helps minimize energy losses during operation.
It supports a wide input voltage range from 18V to 36V, allowing flexibility in power sources.
The dimensions of this model are 23.8mm in length, 13.7mm in width, and 8mm in depth.
It can operate in temperatures ranging from -40°C to +85°C, making it suitable for harsh environments.
This DC/DC converter provides a single output.
It is designed for PCB mounting, which is common in compact electronic applications.
Yes, it incorporates current limiting and short circuit protection to enhance operational safety.
The isolation voltage for this model is 1kV, providing reliable electrical isolation.
It is suitable for industrial automation, control systems, instrumentation, and embedded systems requiring reliable DC power.
This DC/DC converter is manufactured in Taiwan.
The mean time between failures (MTBF) for this converter is 1,000,000 hours.
