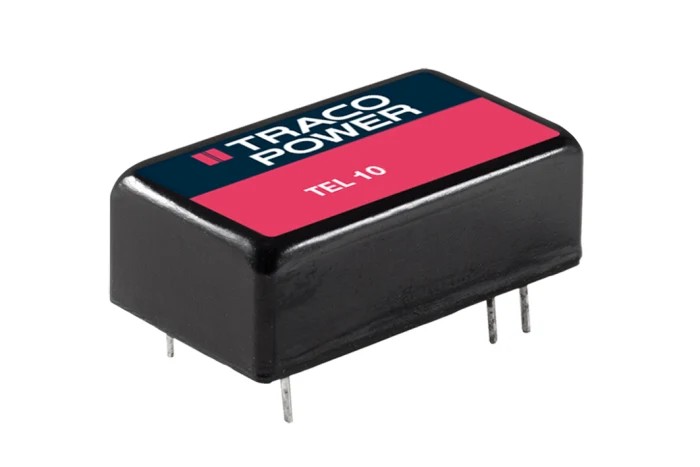

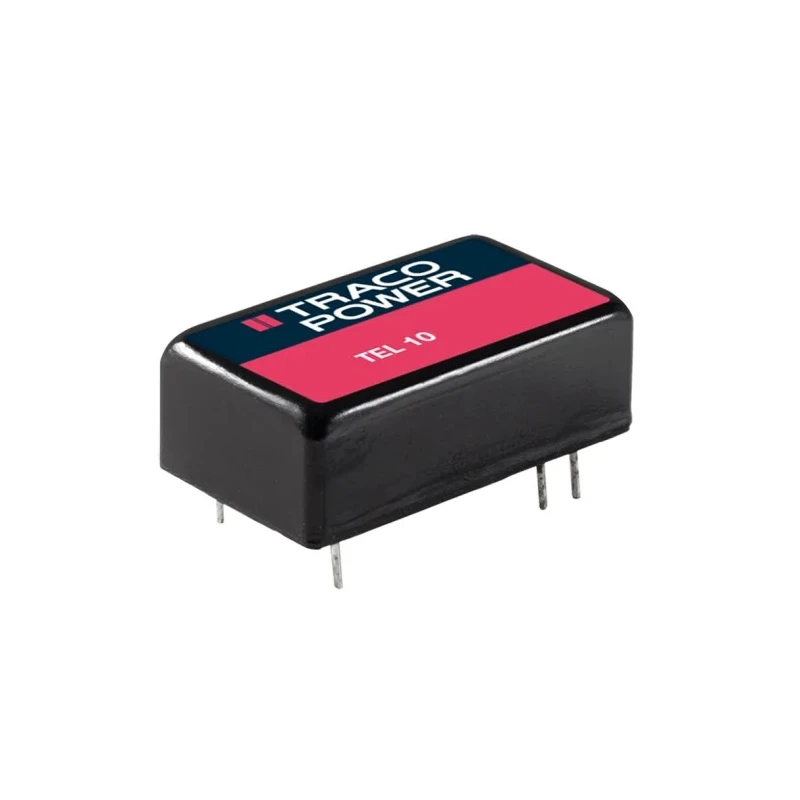

TRACOPOWER TEL 10 DC/DC Converter, 24V 416mA, 36V/18V Input, 10W, PCB Mount, DIP-16, 85°C Max Temp TEL 10-2415
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 88% |
| Length | 23.8mm |
| Model | TEL 10-2415 |
| Depth | 8mm |
| Width | 13.7mm |
| Mount Type | PCB |
| Series | TEL 10 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP-16 |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 1 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 36V |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 24V |
| Output Current 1 | 416mA |
| Isolation Voltage | 1kV |
| Better World Claim | Concentrated or Compact Solution |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 2 | 1 input voltage range |
Key Features
- Ultra-compact DIP-16 metal package for space-saving designs.
- High efficiency up to 88% for low thermal losses.
- Wide input voltage range of 18V to 36V allowing flexible power sources.
- 1kV isolation voltage ensures safe operation in sensitive environments.
- Operating temperature range from -40°C to 85°C for harsh conditions.
- Short circuit and current limit protection enhance durability.
- Compact design with dimensions 23.8mm x 13.7mm x 8mm.
- Single output with stable 24V 416mA power supply.
Product Description
TRACOPOWER TEL 10-2415 DC/DC Converter is a precision-engineered power module designed for industrial and electronic applications requiring isolated, stable 24V power output. The device supports an input voltage range of 18V to 36V and delivers an output current of 416mA with a maximum output power of 10W, all housed in a compact DIP-16 metal casing ideal for PCB mounting.
This converter achieves a high efficiency of up to 88%, which minimizes thermal dissipation and allows operation in temperatures as extreme as -40°C to 85°C, making it suitable for use in industrial, instrumentation, IT systems, and other demanding environments. Its 1kV isolation voltage offers excellent electrical isolation, enhancing system safety and reducing interference risks.
The TEL 10 series sets new standards in power density, packing 3.83 W/cm³ in a shielded metal case with an insulated baseplate, ensuring robustness and electrical safety. It includes internal input filters and protections such as current limitation and short circuit protection, enhancing reliability under fluctuating electrical or load conditions.
Ideal for applications requiring compact power solutions, the TEL 10-2415 model’s small footprint and superior thermal characteristics simplify design integration in cost-sensitive and space-critical projects.
Ultra-compact DIP-16 metal package with insulated baseplate. High efficiency of 88% reduces power loss and heat generation. Wide 2:1 input voltage range from 18V to 36V for flexible power sources. 1kV isolation voltage for enhanced safety and noise reduction.
Robust operating temperature range from -40°C to 85°C. Built-in current limitation and short circuit protection. Compact dimensions of 23.8mm (L) x 13.7mm (W) x 8mm (D). Suitable for industrial, instrumentation, IT, and other electronics applications.
Country of origin: Taiwan, Province Of China. This high-quality product adheres to TRACOPOWER’s stringent manufacturing standards, ensuring reliable performance and longevity in demanding environments.
Explore the broad range of power supply solutions available in the Electronics & Electricals category on EnvMart for tailored applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 24V and an output current of 416mA.
The TEL 10-2415 supports a wide input voltage range of 18V to 36V.
The maximum output power of this unit is 10W.
This model has compact dimensions of 23.8mm in length, 13.7mm in width, and 8mm in depth.
It achieves a high efficiency of up to 88%, minimizing thermal losses during operation.
This model features an isolation voltage of 1kV, ensuring safe operation in sensitive environments.
The TEL 10-2415 operates effectively within a temperature range of -40°C to 85°C.
This model is designed for PCB mounting, utilizing a DIP-16 package type.
It includes built-in current limitation and short circuit protection to enhance reliability.
This converter is suitable for industrial, instrumentation, IT systems, and other demanding electronic applications.
The TEL 10-2415 is manufactured in Taiwan.
The mean time between failures (MTBF) for this model is rated at 1,000,000 hours.
