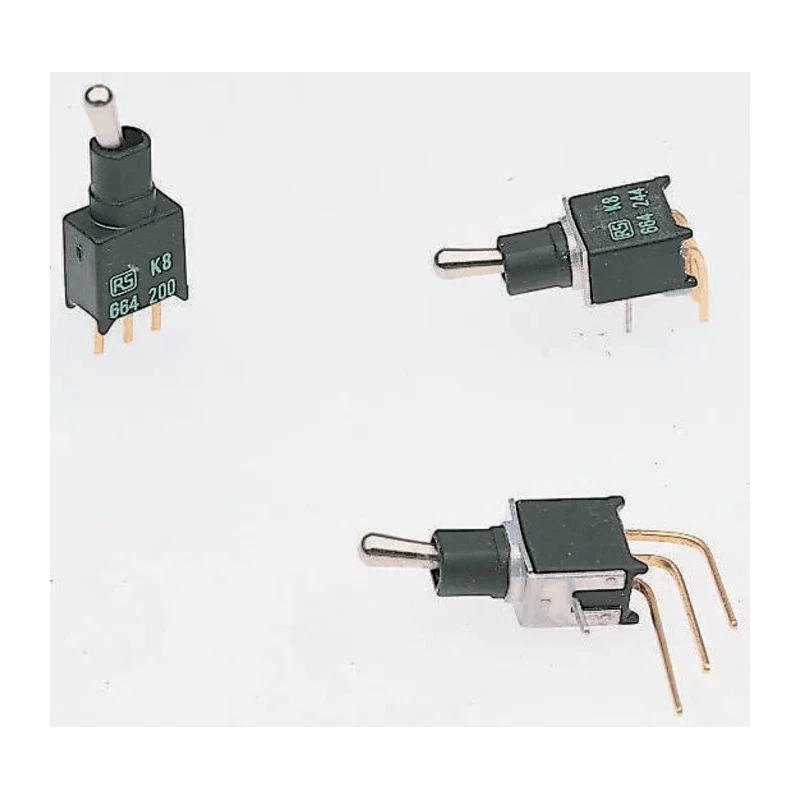

APEM PCB Mount Toggle Switch On-Off-On, SPST, Through Hole Terminal, 24 V dc, 250 V ac TL37P0050
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 36mm |
| Length | 14mm |
| Model | TL37P0050 |
| Width | 12mm |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | Through Hole |
| Number of Operations | 60000 (2 pos), 30000 (3 pos) |
| Standards/Approvals | NFVDE, CSA, CECC, RoHS, UL |
| Switch Operation | On-Off-On |
| Actuator Length | 5.3mm |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 400mA |
| Mechanical Life | 10000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
| Minimum load current | 10mA at 50mV - 10μA at 5Vdc |
| RS PRO Toggle Switch, PCB Mount, (On)-Off-(On), SPDT, Through Hole TerminalBrand | RS PRO |
Key Features
- The switch features a brass actuator material with a panel cutout size of 6.5 mm.
- It supports a switch contact current of 400mA suitable for low-level switching applications.
- Designed for PCB mounting with through hole terminals ensuring secure installation.
- Has mechanical life durability of 10,000 operations with reliable performance.
- Suitable for usage in temperature range from -30°C to 85°C for varied conditions.
- Constructed with gold plated brass terminals and a totally sealed design, making it washable and immersion cleaning capable.
- Supports wave soldering while withstanding up to 260°C for 5 seconds without damage.
- Manufactured in France meeting certifications including NFVDE, CSA, CECC, RoHS, and UL compliance.
Product Description
APEM TL37P0050 is a durable, high-quality PCB Mount Toggle Switch designed for reliable On-Off-On SPST switching applications. It operates at 24 V dc and 250 V ac voltages, providing efficient low-level switching with a contact current rating of 400mA. The switch features a robust brass actuator material and a neat panel cutout size of 6.5 mm, making it perfect for compact PCB mounting with through hole terminals.
The switch body is constructed from PBT with gold plated brass terminals, delivering excellent corrosion resistance. Its totally sealed design allows the switch to be washable and suitable for immersion cleaning, enhancing durability in harsh or industrial environments. The switch can also endure wave soldering at temperatures up to 260°C for 5 seconds without performance degradation.
Key physical dimensions include 36 mm height, 14 mm length, and 12 mm width, supporting versatile installation spaces on circuit boards. The mechanical life rating is 10,000 operations, ensuring a reliable lifecycle for industrial and commercial use.
Temperature tolerance ranges from -30°C to 85°C, enabling operation in diverse environmental conditions. The switch is manufactured in France and complies with international standards including NFVDE, CSA, CECC, RoHS, and UL certifications, making it suitable for integration in industrial automation, electrical systems, and control panels.
The brass actuator and PBT case provide strength and electrical insulation. Gold plated brass terminals ensure high conductivity and corrosion resistance. Sealed design for immersion washing and cleaning applications. Supports low load currents down to 10μA at 5V dc, enhancing versatility.
Wave solderable and endurance under thermal stress in manufacturing. Compact footprint suitable for high-density PCB layouts. Meets various electrical and safety standards for professional use.
This APEM toggle switch is ideal for industrial, laboratory, electrical automation, and manufacturing applications that require precise and reliable switching operations. Explore related components and accessories in the Toggle Switch category on EnvMart for comprehensive electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch has a contact current rating of 400mA, making it suitable for low-level switching applications.
It operates at a contact DC voltage of 24V and a contact AC voltage of 250V.
This model has a mechanical life rating of 10,000 operations, ensuring reliable performance over its lifespan.
The switch has dimensions of 36mm in height, 14mm in length, and 12mm in width.
The required panel cutout size for this switch is 6.5 mm.
It can operate within a temperature range of -30°C to 85°C, suitable for varied environmental conditions.
This model features through hole terminals for secure PCB mounting.
It complies with several standards including NFVDE, CSA, CECC, RoHS, and UL.
The actuator is made of brass, providing strength and electrical insulation.
Yes, it has a totally sealed design that allows for washing and immersion cleaning.
The minimum load current is 10μA at 5V dc, enhancing its versatility for various applications.
Yes, it supports wave soldering and can withstand temperatures up to 260°C for 5 seconds without damage.
