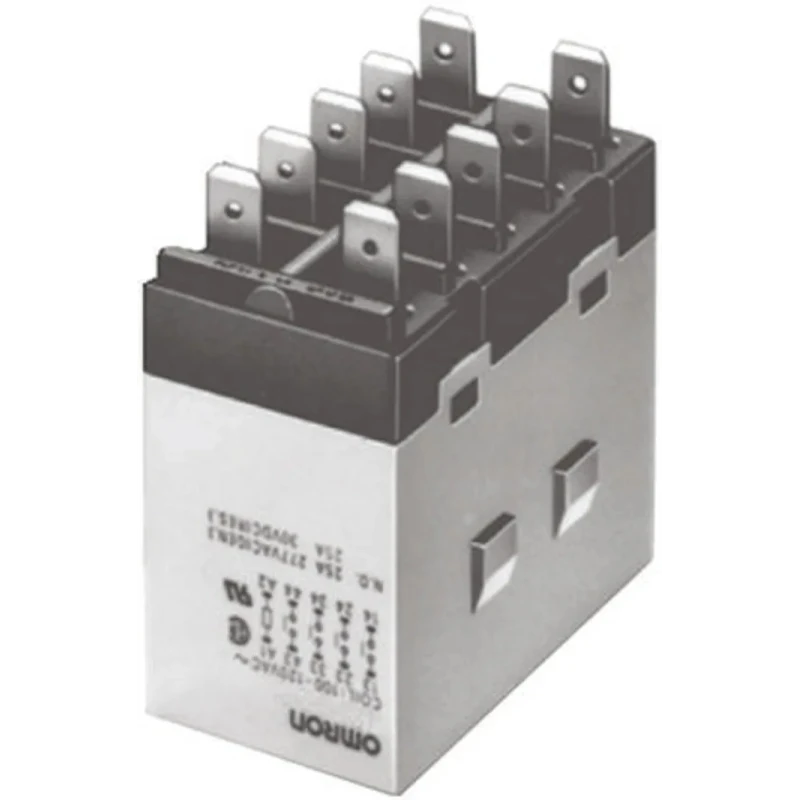

Omron Panel Power Relay 120V AC Coil 25A Switching Current 4PST-NO G7J-4A-T AC100/120
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 64mm |
| Length | 51.5mm |
| Model | G7J-4A-T AC100/120 |
| Width | 34.5mm |
| Mount Type | Panel |
| Contact Material | Silver Alloy |
| Series | G7J |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | 4PST-NO |
| Minimum Operating Temperature | -25°C |
| Switching Current | 25A |
| Terminal type | Tab Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | UL, CSA |
| Coil Voltage | 120V ac |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 250V ac |
Key Features
- 120V AC coil rated at 2.6VA ensuring predictable coil power consumption.
- Four single-pole contacts allow simultaneous switching of multiple circuits effectively.
- Silver alloy contact material improves conductivity and reduces contact wear.
- Capable of switching AC loads up to 250V and DC loads up to 125V for versatile applications.
- Compact panel mount design with tab terminals and W-bracket mounting for easy installation.
- Operates reliably over a temperature range of -25°C to 60°C suitable for industrial environments.
- Contact resistance rated at 100 milliohms to minimize voltage drop across contacts.
- Certified by UL and CSA for safety and regulatory compliance in North America.
Product Description
Omron G7J-4A-T AC100/120 panel power relay is a compact electromechanical device designed for use in control and automation panels. Featuring a coil voltage of 120V AC with a power rating of 2.6VA, this relay provides reliable circuit switching with a switching current capacity of 25A, making it suitable for moderate coil input and high-contact load switching requirements.
The relay includes four single-pole single-throw normally open (4PST-NO) contacts with silver alloy contact faces that ensure improved conductivity and reduced contact wear, extending the device’s operational lifespan. It can safely switch AC voltages up to 250V and DC voltages up to 125V, making it versatile for various industrial applications.
This unit is designed for panel mounting, secured with a W-bracket, and equipped with straight tab terminals for easy wiring, fulfilling typical industrial panel assembly requirements. The relay supports operation in ambient temperatures ranging from -25°C to 60°C, providing robust performance in typical industrial indoor environments.
Contact resistance is low at 100 milliohms, minimizing voltage losses and ensuring efficient current transfer. The relay carries UL and CSA safety approvals, recognized standards for components used in industrial electrical applications.
Common applications include motor control contact switching within automation panels, interfacing control logic with high-current loads, switching heater circuits in industrial equipment, and load transfer in power distribution modules.
This power relay is part of Omron's G7J series offering dependable switching for industrial automation, manufacturing, HVAC, and electrical control systems. 120V AC coil rated at 2.6VA ensuring predictable coil power consumption.
Four single-pole contacts enabling simultaneous switching of multiple circuits. Silver alloy contact material reduces wear and improves conductivity. Switching capability of 25A for substantial load currents. Can switch AC voltages up to 250V and DC up to 125V for versatile loads.
Panel mount type with tab terminals and W-bracket mounting. Operating temperature range from -25°C to 60°C suitable for industrial environments. Contact resistance of 100 milliohms ensures efficient current transfer. UL and CSA certifications for safety and reliability.
Explore more industrial electrical components and Power Relays at EnvMart to meet your automation and control system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this model is 120V AC.
It can handle a maximum switching current of 25A.
The dimensions are 64mm in height, 51.5mm in length, and 34.5mm in width.
This relay features four single-pole single-throw normally open (4PST-NO) contacts.
It can switch AC voltages up to 250V and DC voltages up to 125V.
The contact resistance is rated at 100 milliohms.
The operating temperature range is from -25°C to 60°C.
It is designed for panel mounting and is secured with a W-bracket.
The contacts are made of silver alloy, which improves conductivity and reduces wear.
It is certified by UL and CSA for safety and regulatory compliance in North America.
This model uses tab terminals for easy wiring.
The relay is manufactured in India.
