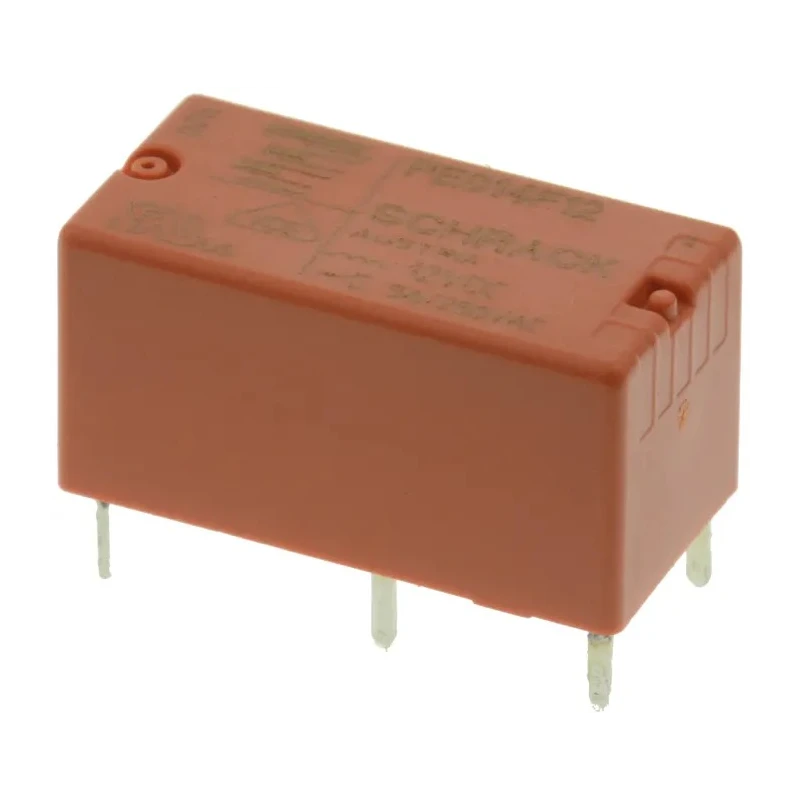

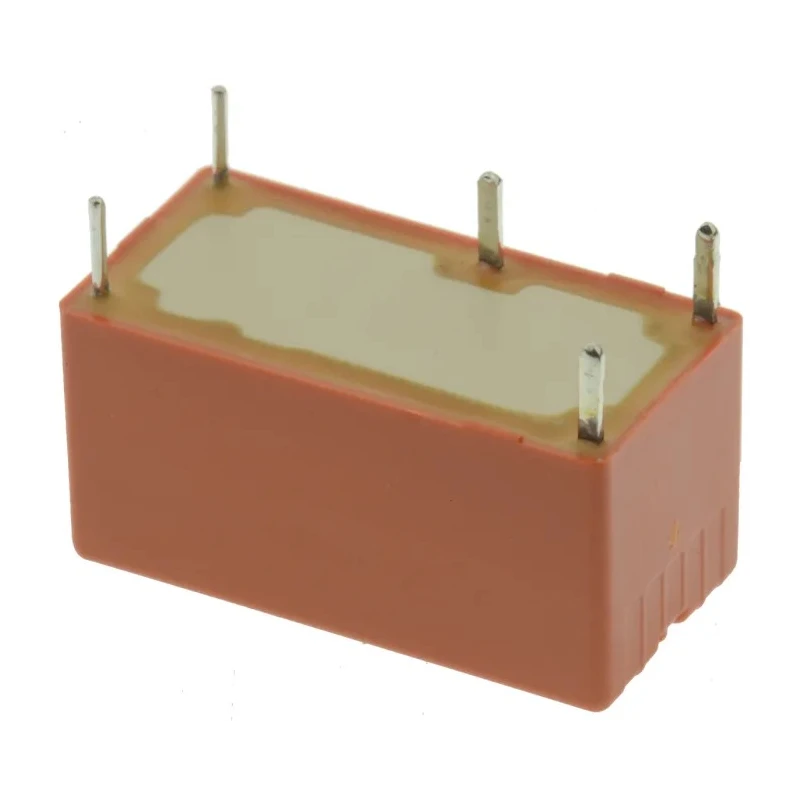

TE Connectivity PCB Power Relay 12V dc Coil 5A Switching Current SPDT PE014F12
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 10mm |
| Length | 20mm |
| Model | PE014F12 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | PE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 650Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Isolation Coil To Contact | 4000Vac |
| High Coil sensitivity | 200mW |
Key Features
- High coil sensitivity of 200mW ensures efficient operation.
- Single-coil polarized latching (bistable) relay suitable for PCB mounting.
- Silver alloy contact material for reliable switching performance.
- Operating temperature range from -40°C to 85°C for diverse environments.
- Isolation between coil and contact rated at 4000Vac enhances safety.
- Compact dimensions of 20mm length, 10mm width, and 10mm height.
- Supports switching AC voltage up to 400V ac and switching power of 1.25kVA.
- Terminal type is solder suitable for PCB assembly.
Product Description
The TE Connectivity PE014F12 PCB Power Relay is a versatile and reliable component designed for a wide range of industrial and electronic applications. Featuring a 12V DC coil voltage and a switching current rating of 5A, this relay is well-suited for precise switching needs in control circuits, automation systems, and signal conditioning tasks.
This relay incorporates a single-pole double-throw (SPDT) contact configuration, providing flexibility in switching operations. It is a bistable, single-coil polarized latching relay from the PE series that ensures low power consumption with a high coil sensitivity of 200mW, making it ideal for energy-efficient applications.
Constructed with silver alloy contacts, the relay offers excellent conductivity and durability under various load conditions. Its robust insulation between the coil and contacts (4000Vac) guarantees safe operation in industrial environments.
Compact and designed for PCB mounting with a solder terminal type, it measures 20mm in length, 10mm in width, and 10mm in height, allowing for efficient use of board space. Its temperature operating range extends from -40°C to +85°C, making it suited for harsh and varying climatic conditions.
The relay supports switching AC voltages up to 400V AC and a maximum switching power of 1.25kVA. It complies with RoHS standards, ensuring it meets environmental safety requirements.
High coil sensitivity of 200mW ensures efficient operation. Single-coil polarized latching (bistable) relay suitable for PCB mounting. Silver alloy contact material for reliable switching performance. Operating temperature range from -40°C to 85°C for diverse environments.
Isolation between coil and contact rated at 4000Vac enhances safety. Compact dimensions of 20mm length, 10mm width, and 10mm height. Supports switching AC voltage up to 400V ac and switching power of 1.25kVA. Terminal type is solder suitable for PCB assembly.
RoHS compliant ensuring environmental standards.
This Power Relay is extensively used in industrial automation, manufacturing equipment, control panels, HVAC systems, and other electronics applications requiring reliable switching performance. Its PCB mounting design facilitates integration in compact electronic devices.
Explore more high-quality electronic components and relays at EnvMart to enhance your industrial and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It has a maximum switching current rating of 5A.
This relay measures 20mm in length, 10mm in width, and 10mm in height.
It features a single-pole double-throw (SPDT) contact configuration.
The operating temperature range is from -40°C to +85°C.
The isolation between the coil and contact is rated at 4000Vac.
It has a solder terminal type suitable for PCB assembly.
It can switch AC voltages up to 400V AC.
The maximum switching power is 1.25kVA.
The contacts are made of silver alloy, which provides reliable switching performance.
The coil resistance is 650Ω.
Yes, this relay complies with RoHS standards, ensuring it meets environmental safety requirements.
